21070 - Toro 40cm Electric Recycler Walk-Behind Mower (SN: 230000001 - 230999999) (2003) CHASSIS PARTS MODEL-NO. 21060, 21061 Parts Diagram

40cm Electric Recycler Walk-Behind Mower

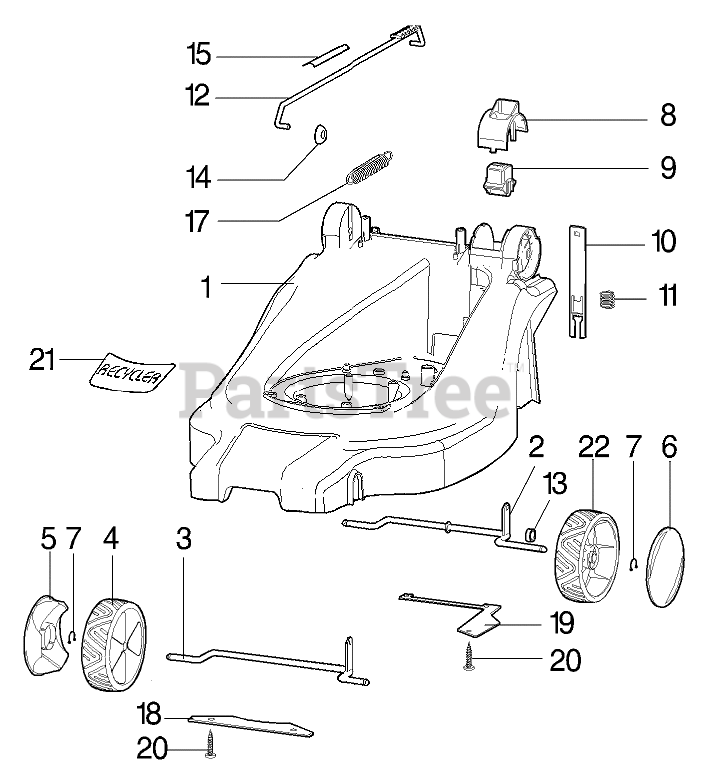

CHASSIS PARTS MODEL-NO. 21060, 21061 Parts Diagram

  • Title

1

Toro 95-6768

Housing

$

$

Not available

2

Toro 95-6735

Axle-Rear

$

$

Not available

3

Toro 95-6734

Axle-Front

$

$

Not available

4

Toro 95-6665

Wheel Assy. (incl. Ref. #5 & #7)

$

$

Not available

5

Toro 95-6543

COVER-WHEEL

$3.49

$

Usually ships in 3-6 days

0

6

Toro 95-6716

Cover-Wheel

$

$

Not available

7

Toro 95-6544

Clamp-Spring, Wheel

$

$

Not available

8

Toro 95-6888

Cover-Knob

$

$

Not available

9

Toro 95-6562

Knob-HOC

$

$

Not available

10

Toro 95-6506

Latch-HOC

$10.99

$

Usually ships in 3-6 days

0

11

Toro 95-6564

Spring-HOC

$1.49

$

Usually ships in 3-6 days

0

12

Toro 95-6738

Rod-HOC (Incl. Ref. # 23)

$

$

Not available

13

Toro 95-6741

SPACER

$

$

Not available

14

Toro 95-6565

Nut-Push

$

$

Not available

15

Toro 65-6709

DISCONTINUED NEVER USED

$

$

Not available

17

Toro 95-6505

Spring-Balance, HOC

$

$

Not available

18

Toro 95-6700

Plate-Axle, Front

$

$

Not available

19

Toro 95-6699

Plate-Axle, Rear

$

$

Not available

20

Toro 95-6560

SCREW-BUTTON HEAD, TORX

$2.99

$

Usually ships in 3-6 days

0

21

Toro 95-6521

DECAL - RECYCLER 34CM

$

$

Not available

22

Toro 95-6666

Smartwheel Assy. (incl. Ref. 6 & 7)

$

$

Not available
