21610 - Toro Guardian Walk-Behind Mower (SN: 006000001 - 006999999) (1976) MAGNETO NO. 610793 (MOWER MODEL NO. 21610)(ENGINE NOS. TNT 100-10047) Parts Diagram

Guardian Walk-Behind Mower

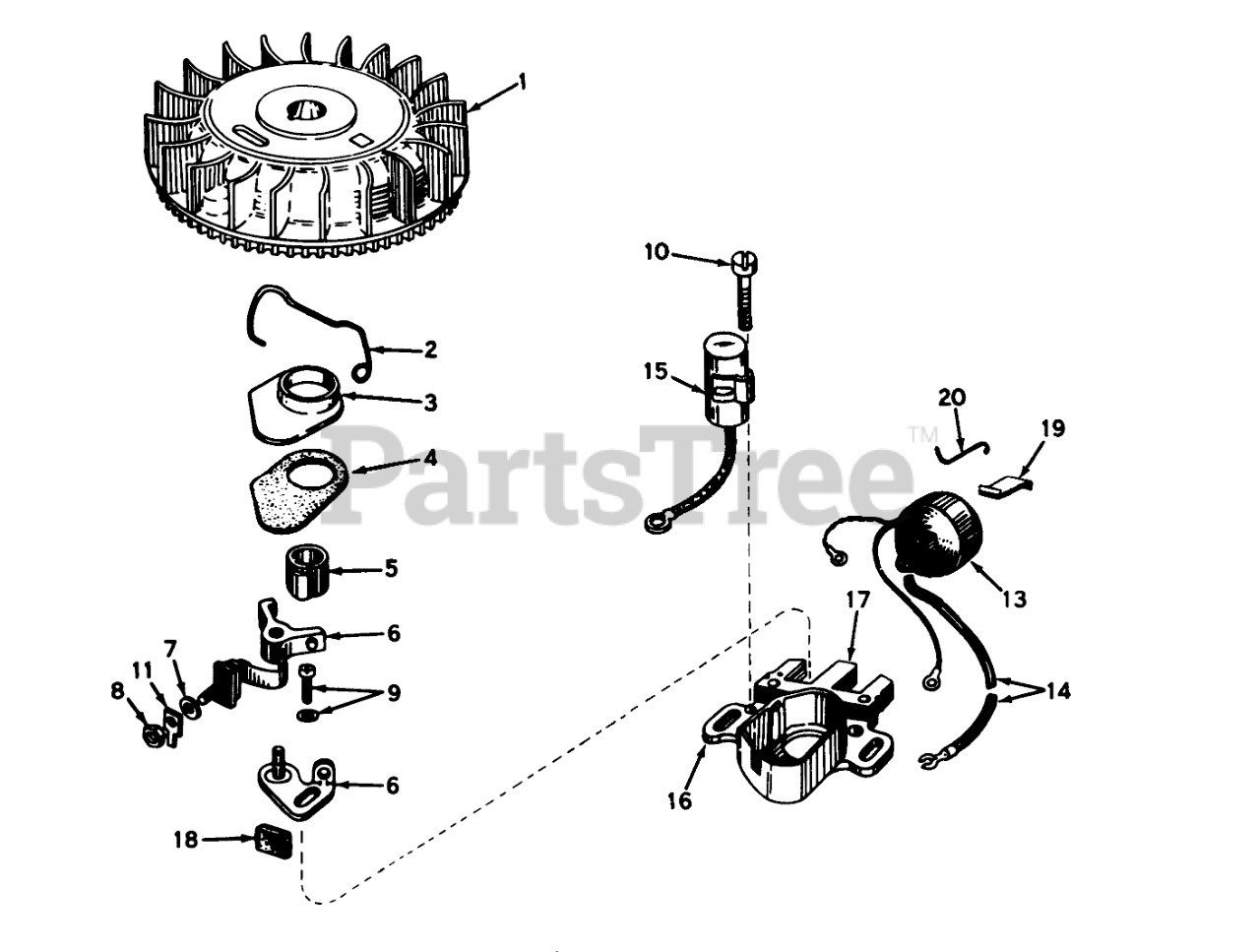

MAGNETO NO. 610793 (MOWER MODEL NO. 21610)(ENGINE NOS. TNT 100-10047) Parts Diagram

  • Title

1

Tecumseh 610782

FIywheel
(Superseded to 610782B)

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in the parts list.

$

$

Not available

2

Tecumseh 30551

Spring Breaker Box

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in the parts list.

$

$

Not available

3

Tecumseh 30550

Cover, Dust
(Superseded to 610947)

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in the parts list.

$3.99

$

Usually ships in 3-12 days

0

4

Tecumseh 32052

Gasket Dust Cover

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in the parts list.

$

$

Not available

5

Tecumseh 30552

Cam, Breaker

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in the parts list.

$

$

Not available

6

Tecumseh 30547A

Breaker Assy.

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in the parts list.

$18.99

$

In Stock, Qty 7

0

7

Tecumseh 610385

Washer

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in the parts list.

$

$

Not available

8

Tecumseh 610408

DECAL

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in the parts list.

$

$

Currently unavailable

9

Tecumseh 29181

Breaker Screw

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in the parts list.

$

$

Not available

10

Tecumseh 610593

Condenser Screw

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in the parts list.

$1.99

$

Usually ships in 3-12 days

0

11

Tecumseh 33356

Terminal, Ground

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in the parts list.

$1.99

$

In Stock, Qty 5

0

13

Tecumseh 30560A

Coil Assembly (Incl. No. 14)

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in the parts list.

$48.99

$

In Stock, only 4 left!

0

14

Tecumseh 30554

Wire, Lead

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in the parts list.

$

$

Not available

15

Tecumseh 30548A

Condenser
(Superseded to 30548B)

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in the parts list.

$13.99

$

In Stock, Qty 20+

0

16

Tecumseh 30545

Core & Plate

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in the parts list.

$

$

Not available

17

Tecumseh 30561A

Stator Assembly (Incl. Nos. 2, 3, 4, 6 thru 16, 18, 19 & 20
(Superseded to 30561B)

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in the parts list.

$

$

Not available

18

Tecumseh 30549

Felt,Cam Wiper

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in the parts list.

$1.99

$

In Stock, only 4 left!

0

19

Tecumseh 29629

Spring Coil Wedge

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in the parts list.

$

$

Not available

20

Tecumseh 31311

Clip, Coil

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually as shown in the parts list.

$

$

Not available
