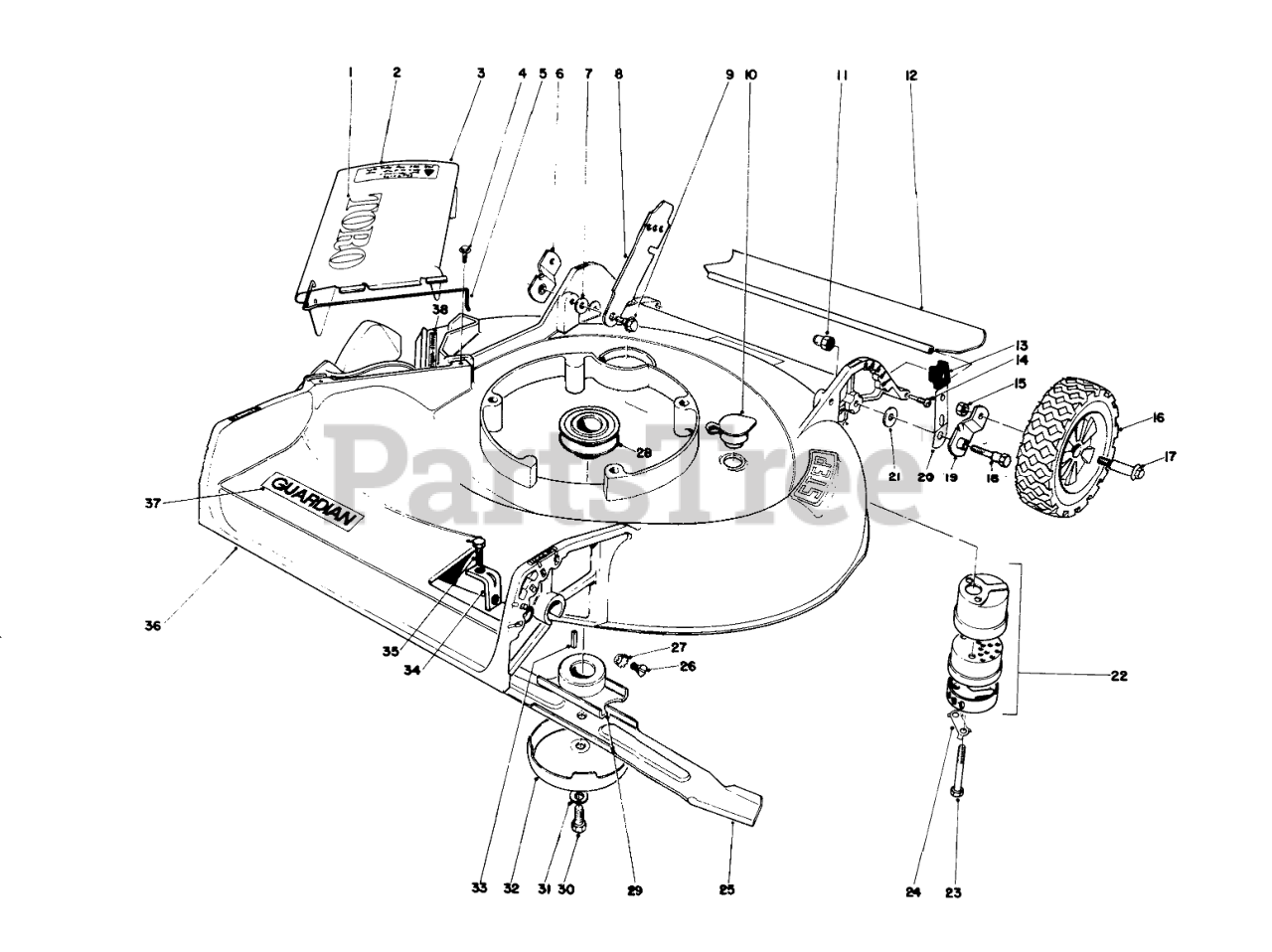

21727 - Toro Guardian Walk-Behind Mower (SN: 007000001 - 007999999) (1977) HOUSING ASSEMBLY Parts Diagram

Guardian Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 20-4690

TORO LOGO DECAL

$7.99

$

Usually ships in 3-6 days

0

2

Toro 20-4330

Caution Decal

$

$

Not available

3

Toro 20-2800

Deflector Cover Assembly (Incl. Ref. #1-2 & 5)
(Superseded to 13-4049)

$

$

Not available

4

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

5

Toro 20-2640

SPRING HINGE

$

$

Not available

6

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

7

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

8

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

9

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

10

Toro 6-4500

WASHOUT PLUG

$

$

Not available

11

Toro 12-2080

HANDLE PIVOT NUT

$22.99

$

Usually ships in 3-6 days

0

12

Toro 22-4950

REAR SAFETY SHIELD 21

$

$

Not available

13

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 13

0

14

Toro 8-6160

SAFTEY SHIELD SCREW

$

$

Not available

15

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

16

Toro 27-6200

WHEEL TIRE ASM 8 IN

$

$

Not available

17

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 3 left!

0

18

Toro 3-0655

5/16-18 PIVOT SCREW

$15.99

$

In Stock, only 1 left!

0

19

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$34.99

$

Usually ships in 3-6 days

0

20

Toro 25-8000

SPRING ARM ASM

$69.99

$

Usually ships in 3-6 days

0

21

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

22

Toro 5-4769

Muffler Assembly (Incl. Ref. #23 & 24)

$54.99

$

Usually ships in 3-6 days

0

23

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

24

Toro 3-5094

CLIP - LOCKING

$10.99

$

Usually ships in 3-6 days

0

25

Toro 20-2720

Blade
(Superseded to 20-2720-03)

$36.99

$

In Stock, Qty 5

0

26

Toro 32108-94

5/16-18X5/8 FLT HD MS

$

$

Not available

27

Toro 3255-12

Lockwasher

$

$

Not available

28

Toro 21-5580

DRIVER PULLEY

$

$

Not available

29

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$64.99

$

Usually ships in 3-6 days

0

30

Toro 3-5246

SPECIAL SCREW

$

$

Not available

31

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

32

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$15.99

$

In Stock, only 2 left!

0

33

Toro 27-6300

KEY-SQUARE

$6.49

$

In Stock, only 1 left!

0

34

Toro 25-7560

Bracket-Gear Box

$

$

Not available

35

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 15

0

36

Toro 6-0679

Housing

$

$

Not available

37

Toro 22-4770

Decal

$

$

Currently unavailable

38

Toro 22-7350

Decal

$

$

Not available

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not illustrated

$17.99

$

Usually ships in 3-6 days

0
