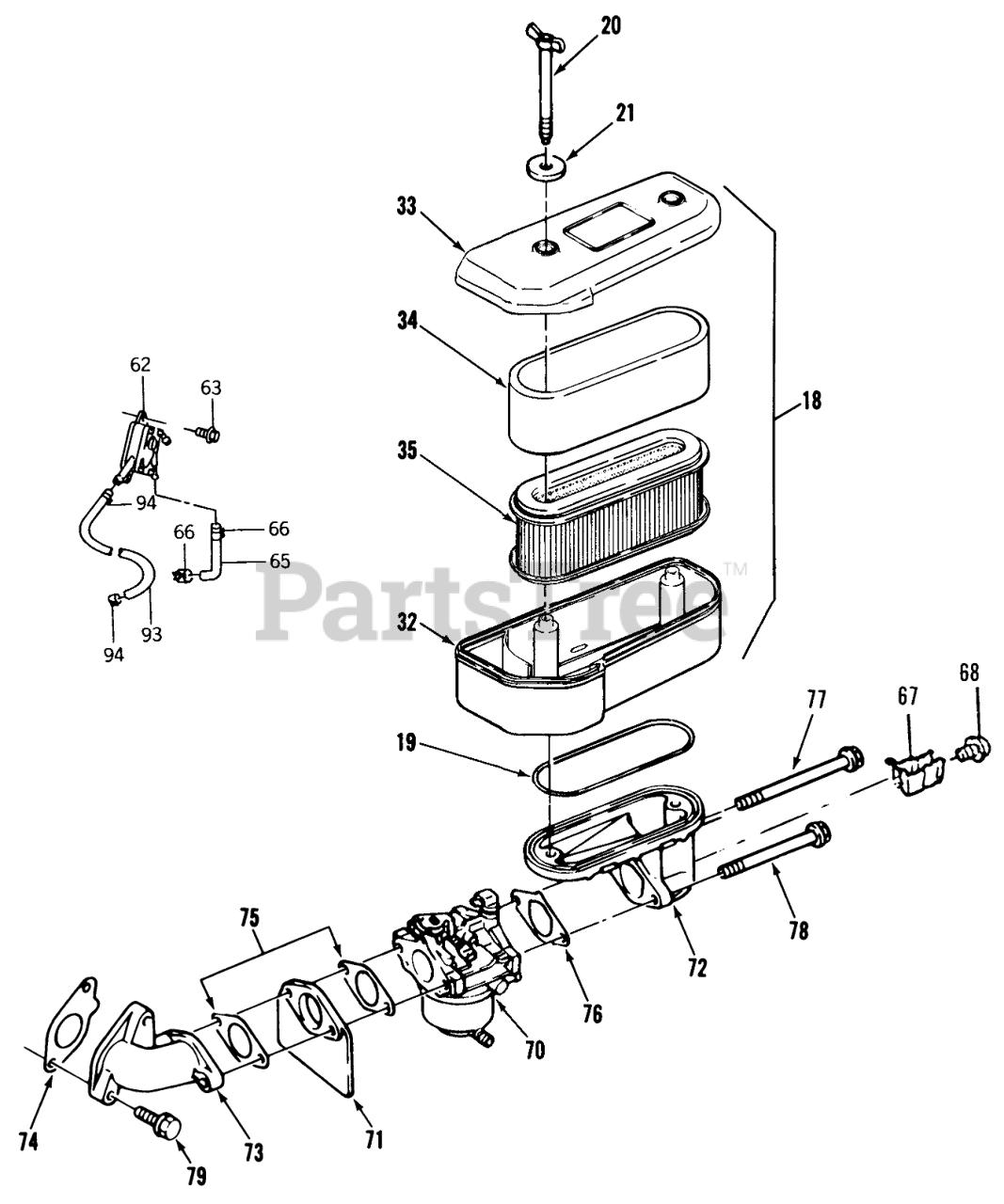

22-13KE02 (252-H) - Toro Yard Tractor (1989) AIR FILTER & CARBURETOR Parts Diagram

Yard Tractor

AIR FILTER & CARBURETOR Parts Diagram

  • Title

18

Toro KW10013

11010-2291 Air Filter Assy (includes items 32, 33, 34 & 35)

$

$

Not available

19

Toro KW10012

GASKET

$

$

Not available

20

Toro KW10185

BOLT

$16.99

$

Usually ships in 3-6 days

0

21

Toro KW10200

WASHER

$

$

Not available

32

Toro KW10246

CASE-AIR FILTER

$

$

Not available

33

Toro KW10015

CAP-AIR FILTER

$

$

Not available

34

Toro KW10016

ELEMENT-AIR CLEANER

$14.99

$

Usually ships in 3-6 days

0

35

Toro KW10017

AIR CLEANER ELEMENT

$

$

Not available

62

Toro KW10695

Fuel Pump Assy-See Section 9-8 for complete parts breakdown

$

$

Not available

63

Kw10029

BOLT-FLANGED

$

$

Not available

65

Toro KW10611

TUBE

$

$

Not available

66

Toro KW10570

CLIP

$

$

Not available

67

Toro KW10220

CLAMP

$

$

Not available

68

Toro KW10092

Screw 5 x 8

$

$

Not available

70

Toro KW10696

Carburetor Assy See section 9-6 for complete parts breakdown
(Superseded to KW10763)

$

$

Not available

71

Toro KW10072

INSULATOR

$

$

Not available

72

Toro KW10070

MANIFOLD INTAKE

$

$

Not available

73

Toro KW10071

MANIFOLD INTAKE

$

$

Not available

74

Toro KW10007

GASKET

$2.49

$

Usually ships in 3-6 days

0

75

Toro KW10008

GASKET

$

$

Not available

76

Toro KW10009

GASKET

$

$

Not available

77

Toro KW10187

BOLT

$

$

Not available

78

Toro KW10186

BOLT

$

$

Not available

79

Toro KW10034

BOLT, FLANGED 8X25

$

$

Not available

93

Toro KW10611

TUBE

$

$

Not available

94

Toro KW10570

CLIP

$

$

Not available
