22-13KE02 (252-H) - Toro Yard Tractor (1989) CYLINDER HEAD, VALVES, CAMSHAFT, AIR FILTER ASSEMBLY AND CARBURETOR Parts Diagram

Yard Tractor

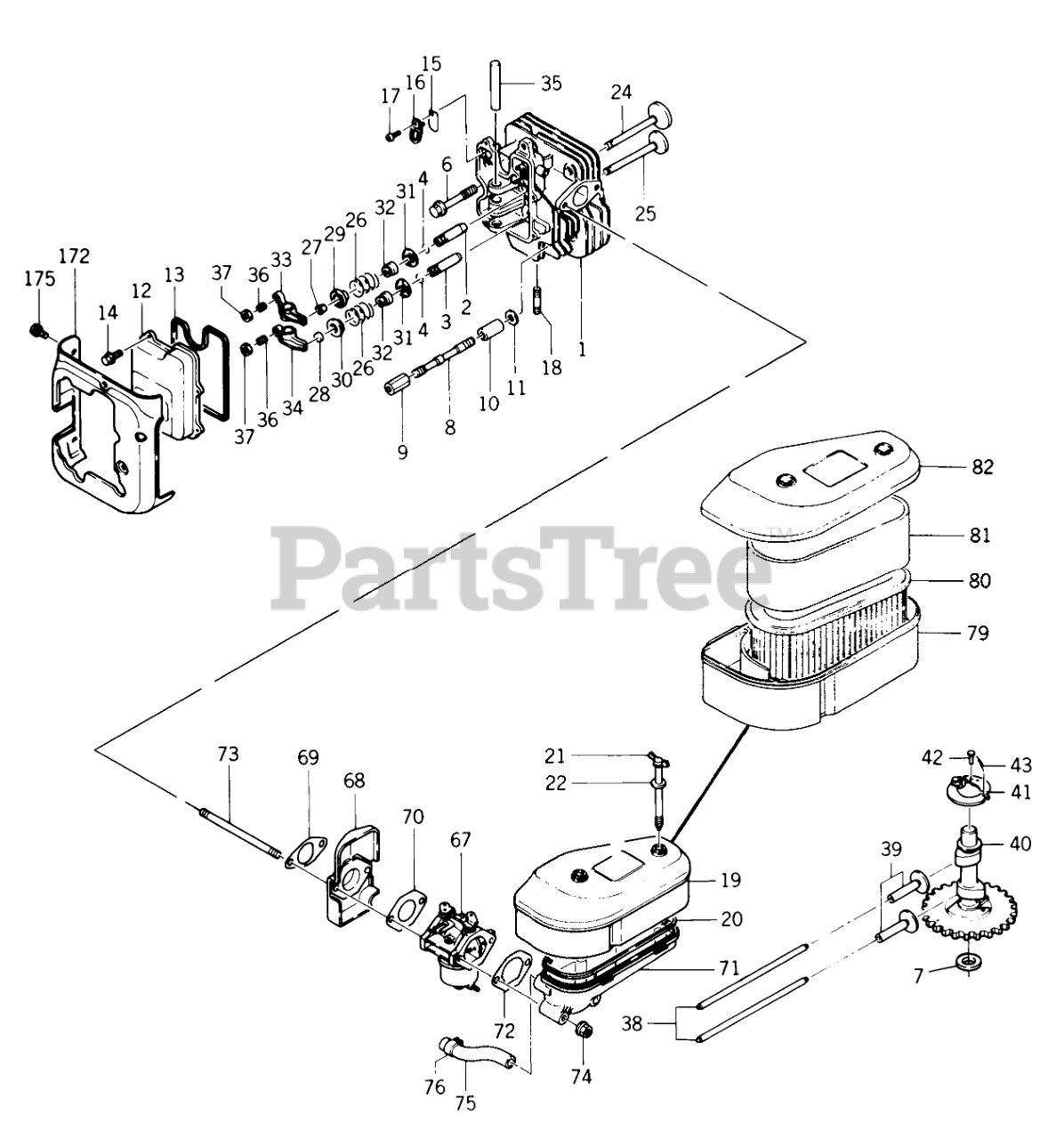

CYLINDER HEAD, VALVES, CAMSHAFT, AIR FILTER ASSEMBLY AND CARBURETOR Parts Diagram

  • Title

1

Toro KW10480

CYLINDER HEAD

$

$

Not available

2

Toro KW10581

GUIDE-VALVE(IN)

$

$

Not available

3

Toro KW10582

GUIDE-VALVE (EX)

$

$

Not available

4

Toro KW10664

RING-SNAP

$

$

Not available

6

Toro KW10612

BOLT-HEAD

$

$

Not available

7

Toro KW10630

SHIM 1.54

$

$

Not available

7

Toro KW10645

SHIM-1.575

$

$

Not available

7

Toro KW10631

SHIM-1.61

$

$

Not available

7

Toro KW10646

SHIM-1.645

$

$

Not available

7

Toro KW10632

SHIM 1.68

$

$

Not available

7

Toro KW10647

SHIM-1.715

$

$

Not available

7

Toro KW10633

SHIM-1.75

$

$

Not available

7

Toro KW10648

SHIM-1.785

$

$

Not available

7

Toro KW10634

SHIM-1.82

$

$

Not available

7

Toro KW10649

SHIM-1.855

$

$

Not available

7

Toro KW10635

SHIM-1.89

$

$

Not available

8

Toro KW10615

STUD

$

$

Not available

9

Toro KW10623

NUT

$

$

Not available

10

Toro KW10660

COLLAR

$

$

Not available

11

Toro KW10626

WASHER

$

$

Not available

12

Toro KW10496

CASE ROCKER

$

$

Not available

13

Toro KW10484

GASKET ROCKER CASE

$

$

Not available

14

Toro KW10288

Bolt
(Superseded to 93-8566)

$

$

Not available

15

Toro KW10539

VALVE

$

$

Not available

16

Toro KW10522

PLATE

$

$

Not available

17

Toro KW10567

SCREW

$

$

Not available

18

Toro KW10545

STUD

$

$

Not available

19

Toro KW10490

Air Filter Assembly

$

$

Currently unavailable

20

Toro KW10485

GASKET AIR FILTER

$

$

Not available

21

Toro KW10613

BOLT

$

$

Not available

22

Toro KW10200

WASHER

$

$

Not available

24

Toro KW10499

VALVE INTAKE

$

$

Not available

25

Toro KW10500

VALVE EXHAUST

$

$

Not available

26

Toro KW10587

Valve Spring

$

$

Not available

27

Toro KW10574

COLLET VALVE

$

$

Not available

28

Toro KW10493

CAP VALVE

$

$

Not available

29

Toro KW10575

RETAINER SPRING

$

$

Not available

30

Toro KW10501

RETAINER SPRING

$

$

Not available

31

Toro KW10530

SEAT SPRING

$

$

Not available

32

Toro KW10670

SEAL-OIL

$

$

Not available

33

Toro KW10503

ARM ROCKER

$

$

Not available

34

Toro KW10502

ARM ROCKER

$

$

Not available

35

Toro KW10504

SHAFT ROCKER

$

$

Not available

36

Toro KW10617

SCREW

$

$

Not available

37

Toro KW10622

NUT

$

$

Not available

38

Toro KW10520

ROD PUSH

$

$

Not available

39

Toro KW10505

TAPPET

$

$

Not available

40

Toro KW10593

SHAFT-CAM

$

$

Not available

41

Toro KW10550

DECOMPRESSOR

$

$

Not available

42

Toro KW10669

PIN

$

$

Not available

43

Toro KW10569

SPRING

$

$

Not available

67

Toro KW10529

Carburetor Assembly See Section 10-5 for complete breakdown

$

$

Not available

68

Toro KW10536

INSULATOR

$

$

Not available

69

Toro KW10486

GASKET

$

$

Not available

70

Toro KW10487

GASKET

$

$

Not available

71

Toro KW10535

PIPE INTAKE

$

$

Not available

72

Toro KW10488

Gasket

$

$

Not available

73

Toro KW10616

Stud

$

$

Not available

74

Toro KW10621

NUT
(Superseded to 95-9793)

$

$

Not available

75

Toro KW10673

TUBE

$

$

Not available

76

Toro KW10568

CLIP

$

$

Not available

79

Toro KW10491

Case

$

$

Not available

80

Toro KW10495

ELEMENT AIR FILTER

$

$

Not available

81

Toro KW10494

WRAPPER AIR FILTER

$

$

Not available

82

Toro KW10492

CAP AIR FILTER

$

$

Not available

172

Toro KW10588

SHROUD

$

$

Not available

175

Toro KW10517

Bolt 6 x 12
(Superseded to 93-8600)

$1.49

$

Usually ships in 3-6 days
