22-14O501 (244-5) - Toro Yard Tractor (SN: 010000001 - 019999999) (1991) LIFT BAR LINKAGE ASSEMBLY Parts Diagram

Yard Tractor

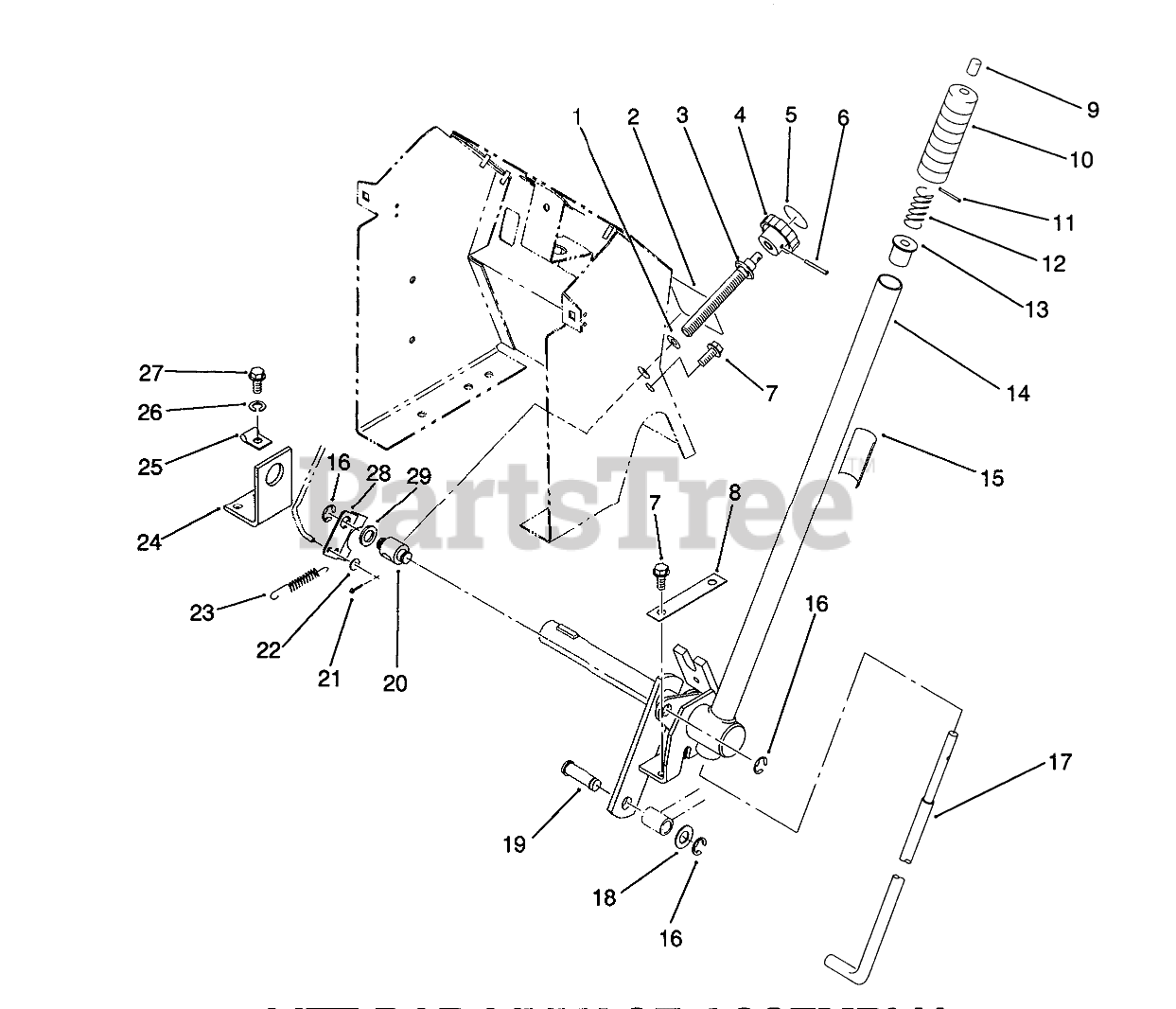

LIFT BAR LINKAGE ASSEMBLY Parts Diagram

  • Title

1

Toro 9202594

WASHER

$0.99

$

In Stock, only 4 left!

0

2

Toro 78-8520

Decal
(Superseded to 78-8521)

$

$

Not available

3

Toro 78-2151

ROD B

$57.99

$

Usually ships in 3-6 days

0

4

Toro 115593

KNOB

$10.99

$

Usually ships in 3-6 days

0

5

Toro 78-9740

DECAL-HEIGHT KNOB

$

$

Not available

6

Toro 933140

Pin-Roll

$

$

Currently unavailable

7

Toro 9267204

Screw
(Superseded to 9264964)

$1.49

$

In Stock, only 2 left!

0

8

Toro 78-6810

Plate
(Superseded to 78-6810-03)

$

$

Not available

9

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

10

Toro 6542

HANDGRIP

$14.99

$

Usually ships in 3-6 days

0

11

Toro 933148

PIN-SPIROL

$0.99

$

In Stock, only 4 left!

0

12

Toro 3624

SPRING-COMPRESSION

$4.99

$

In Stock, only 2 left!

0

13

Toro 8130

RETAINER-SPRING

$19.99

$

Usually ships in 3-6 days

0

14

Toro 78-2090

Handle
(Superseded to 78-2091)

$

$

Not available

15

Toro 112168

DECAL-LIFT

$9.49

$

Usually ships in 3-6 days

0

16

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 15

0

17

Toro 106257

ROD-LATCH LIFT

$95.99

$

Usually ships in 3-6 days

0

18

Toro 9200114

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

19

Toro 78-7911

SUPPORT-INDICATOR B

$

$

Not available

20

Toro 78-2140

TRUNNION

$

$

Not available

21

Toro 9320004

Pin-Cotter
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 10

0

22

Toro 9200054

Washer
(Superseded to 3256-14)

$0.99

$

In Stock, Qty 20+

0

23

Toro 116792

SPRING-EXTENSION

$10.99

$

Usually ships in 3-6 days

0

24

Toro 78-1310

BRACKET B

$

$

Not available

25

Toro 100729

THROTTLE CONTROL CLP

$6.49

$

Usually ships in 3-6 days

0

26

Toro 9201234

Washer-Lock
(Superseded to 3255-8)

$0.99

$

In Stock, Qty 7

0

27

Toro 9267204

Screw
(Superseded to 9264964)

$1.49

$

In Stock, only 2 left!

0

28

Toro 78-3180

PLATE B

$

$

Not available

29

Toro 9202634

WASHER

$6.49

$

Usually ships in 3-6 days

0
