22-14O502 (244-5) - Toro Yard Tractor (SN: 020000001 - 029999999) (1992) 14HP ENGINE CYLINDER BLOCK ASSEMBLY Parts Diagram

Yard Tractor

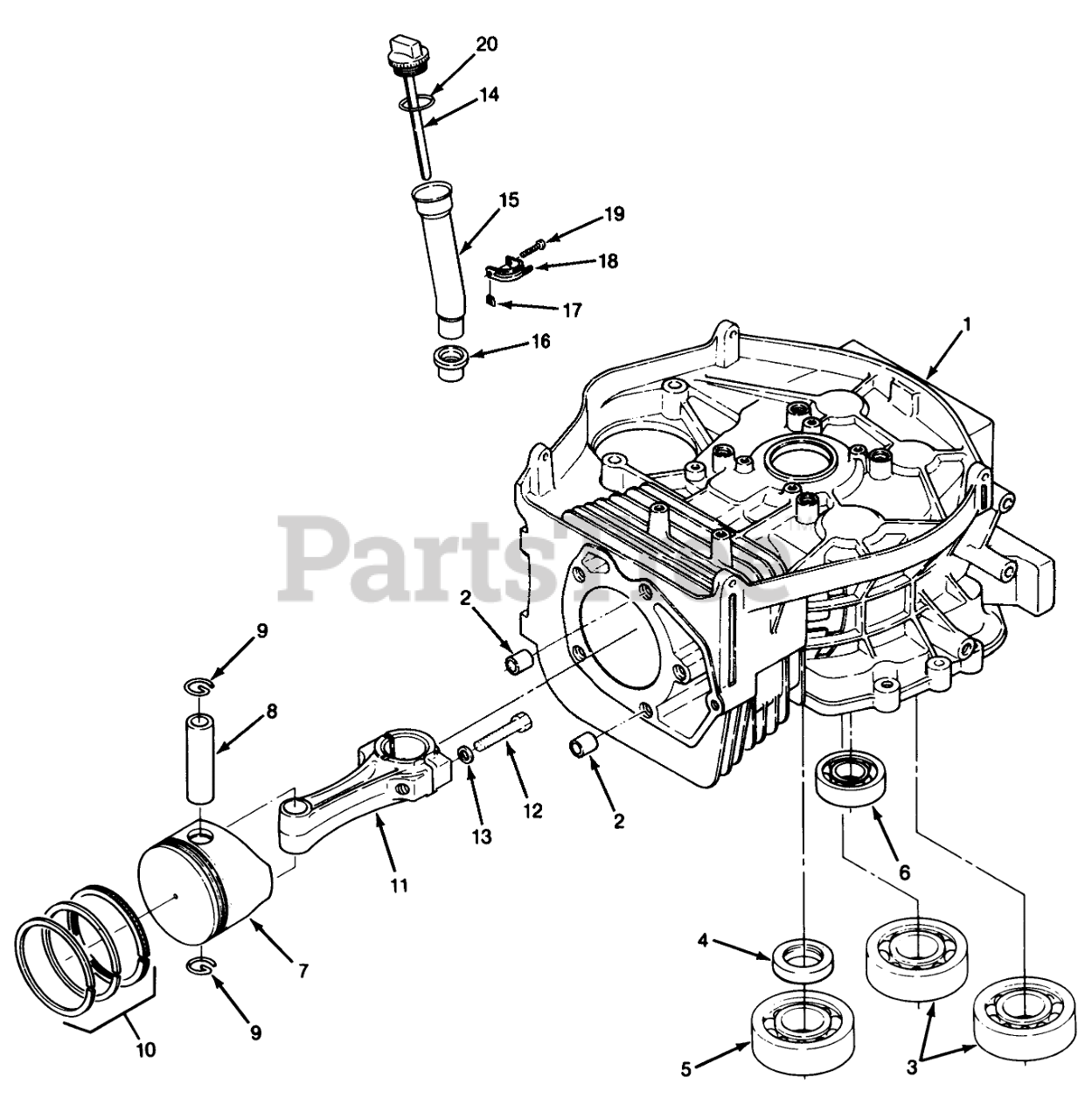

14HP ENGINE CYLINDER BLOCK ASSEMBLY Parts Diagram

  • Title

1

Toro NN10566

BLOCK-CYLINDER

$1725.99

$

Usually ships in 3-6 days

0

2

Toro NN10567

Dowel Pin
(Superseded to NN10626)

$

$

Not available

3

Toro NN10568

Ball Bearing
(Superseded to NN10678)

$

$

Not available

4

Toro NN10569

SEAL-OIL CRNKSHFT UP

$17.99

$

Usually ships in 3-6 days

0

5

Toro NN10570

BEARING-BALL CRANKSH

$

$

Not available

6

Toro NN10571

BEARING-BALL CAMSHFT

$

$

Not available

7

Toro NN10579

Kit-Piston (Standard) (Incl. Ref. #8-9)
(Superseded to 92-5886)

$

$

Not available

Toro NN10580

Kit-Piston (.25mm Oversize) (Incl. Ref. #8-9)
(Superseded to 92-5887)

Note: Not illustrated

$

$

Not available

Toro NN10581

Kit-Piston (.50mm Oversize) (Incl. Ref. #8-9)

Note: Not illustrated

$

$

Not available

8

Toro NN10582

PIN-PISTON

$

$

Not available

9

Toro NN10583

RING-RETAINING

$

$

Not available

10

Toro NN10584

Piston Ring Set-Standard
(Superseded to 92-5889)

$100.99

$

Usually ships in 3-6 days

0

Toro NN10585

Piston Ring Set-.25mm Oversize
(Superseded to 92-5890)

Note: Not illustrated

$

$

Not available

Toro NN10586

Piston Ring Set-.50mm Oversize
(Superseded to 92-5891)

Note: Not illustrated

$

$

Not available

11

Toro NN10587

Kit-Connecting Rod (Standard) (Incl. Ref. #12-13)

$

$

Not available

Toro NN10588

Kit-Connecting Rod (.25mm Undersize) (Incl. Ref. 12-13)

Note: Not illustrated

$229.99

$

Usually ships in 3-6 days

0

Toro NN10589

Kit-Connecting Rod (.50mm Undersize) (Incl. Ref. #12-13)

Note: Not illustrated

$212.99

$

Usually ships in 3-6 days

0

12

Toro NN10590

Bolt
(Superseded to NN10587)

$

$

Not available

13

Toro NN10591

WASHER-CONN ROD

$

$

Not available

14

Toro NN10688

INDICATOR

$

$

Not available

15

Toro NN10689

TUBE

$

$

Not available

16

Toro NN10690

Seal
(Superseded to 71-6170)

$13.99

$

In Stock, only 2 left!

0

17

Toro NN10431

Nut
(Superseded to 82-1700)

$

$

Not available

18

Toro NN10691

BRACKET

$

$

Not available

19

Toro NN10407

Screw
(Superseded to 82-1560)

$

$

Not available

20

Toro NN10323

O-Ring
(Superseded to 57-9610)

$6.99

$

In Stock, only 1 left!

0

Toro NN10852

Block-Short
(Superseded to 92-5947)

Note: Not illustrated

$5102.99

$

Usually ships in 3-6 days

0
