22-14O502 (244-5) - Toro Yard Tractor (SN: 020000001 - 029999999) (1992) MAIN FRAME ASSEMBLY Parts Diagram

Yard Tractor

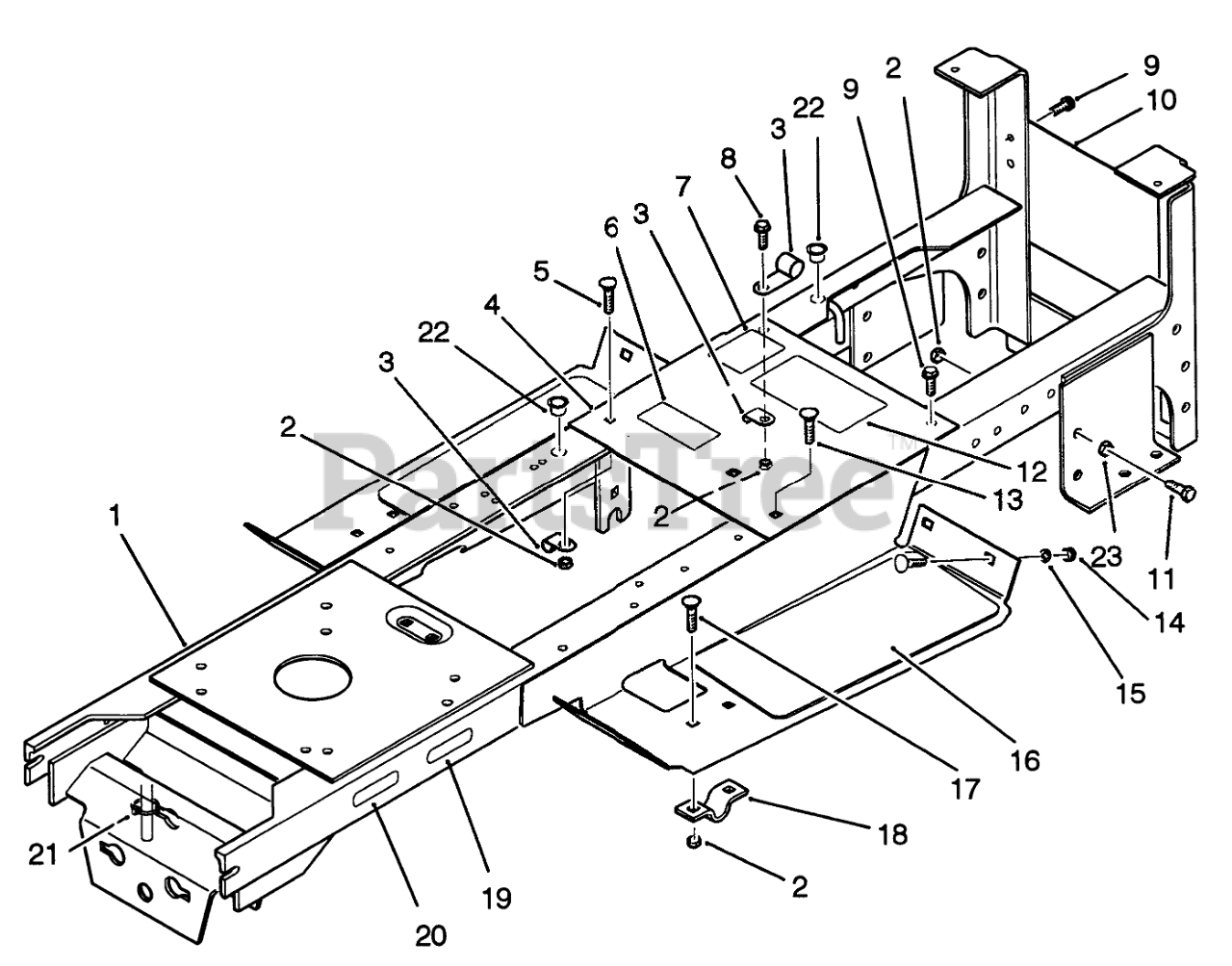

MAIN FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 78-7293

WEDMT-FRAME R

$

$

Not available

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 100729

THROTTLE CONTROL CLP

$6.49

$

Usually ships in 3-6 days

0

4

Toro 78-1130

Panel
(Superseded to 92-6347)

$

$

Not available

5

Toro 900038

Bolt-Carriage
(Superseded to 3230-2)

$1.49

$

In Stock, Qty 12

0

6

Toro 79-0370

DECAL-DANGER

$19.99

$

Usually ships in 3-6 days

0

7

Toro 79-0120

DECAL-PARKING BRAKE

$

$

Not available

8

Toro 926697

Bolt
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

9

Toro 926694

SCREW

$

$

Not available

10

Toro 79-0681

PANEL-REAR R

$

$

Not available

11

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 112670

DECAL-DANGER

$9.99

$

Usually ships in 3-6 days

0

13

Toro 900215

Bolt-Carriage
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

14

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

15

Toro 3254-23

WASHER - FLAT YZ

$

$

Not available

16

Toro 110636

PAD FOOTREST

$

$

Not available

17

Toro 900379

Bolt-Carriage

$

$

Currently unavailable

18

Toro 106288

CLAMP

$15.99

$

Usually ships in 3-6 days

0

19

Toro 115197

Decal-Attac-O-Matic
(Superseded to 94-6330)

$

$

Not available

20

Toro 79-6730

DECAL-INSTALL BELT

$

$

Not available

21

Toro 100571

PLASTIC TIE

$

$

Not available

22

Toro 79-4050

BUSHING

$

$

Not available

23

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0
