22010 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

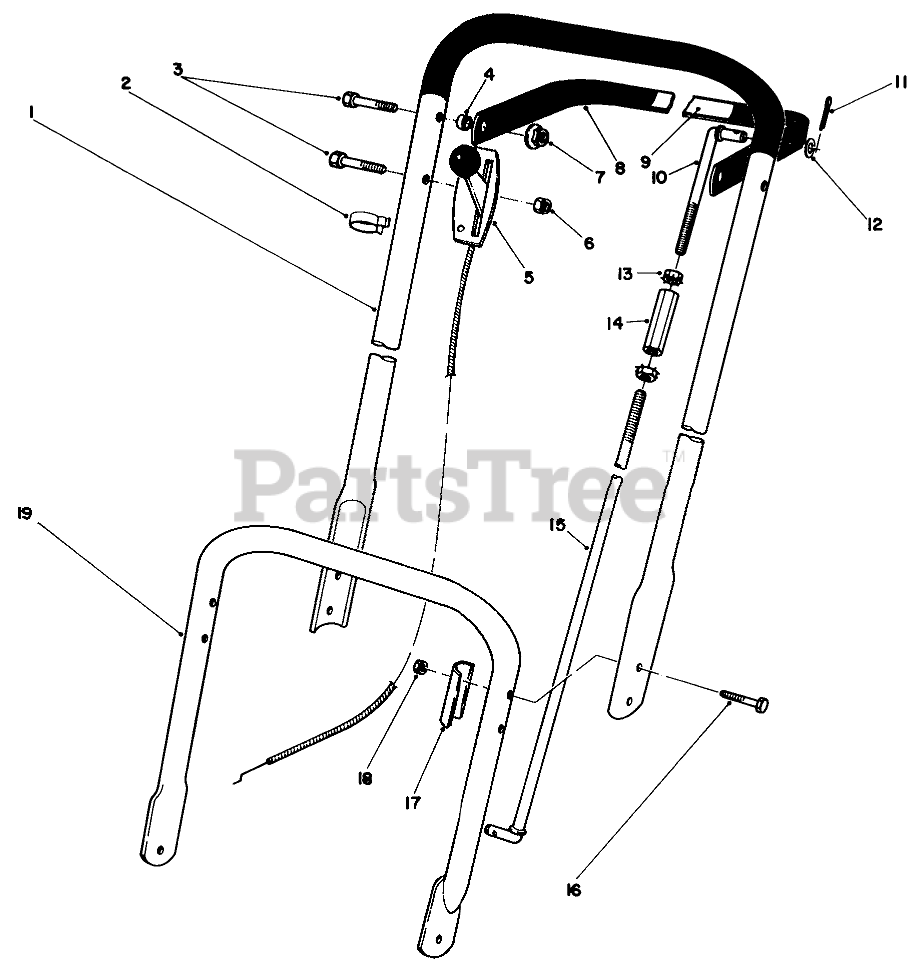

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 39-0190

UPPER HANDLE

$

$

Not available

2

Toro 218-466

CLIP

$

$

Not available

3

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 48-2740

STANDOFF LIFT BAIL

$

$

Not available

5

Toro 49-9070

THROTTLE CONTROL

$146.99

$

Usually ships in 3-6 days

0

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

7

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

8

Toro 48-2480

Lift Bail

$

$

Not available

9

Toro 48-2750

TRACTION DECAL

$

$

Not available

10

Toro 49-8970

CONTROL ROD LINK

$

$

Not available

11

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 8

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 11

0

14

Toro 3-6481

CONTROL ROD SLEEVE

$

$

Not available

15

Toro 29-4850

CONTROL ROD

$

$

Not available

16

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0

17

Toro 39-5950

Brace-Handle

$

$

Not available

18

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

19

Toro 39-0180

Handle-Lower

$

$

Not available
