22015 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) GEAR CASE ASSEMBLY (MODEL 22020) Parts Diagram

Walk-Behind Mower

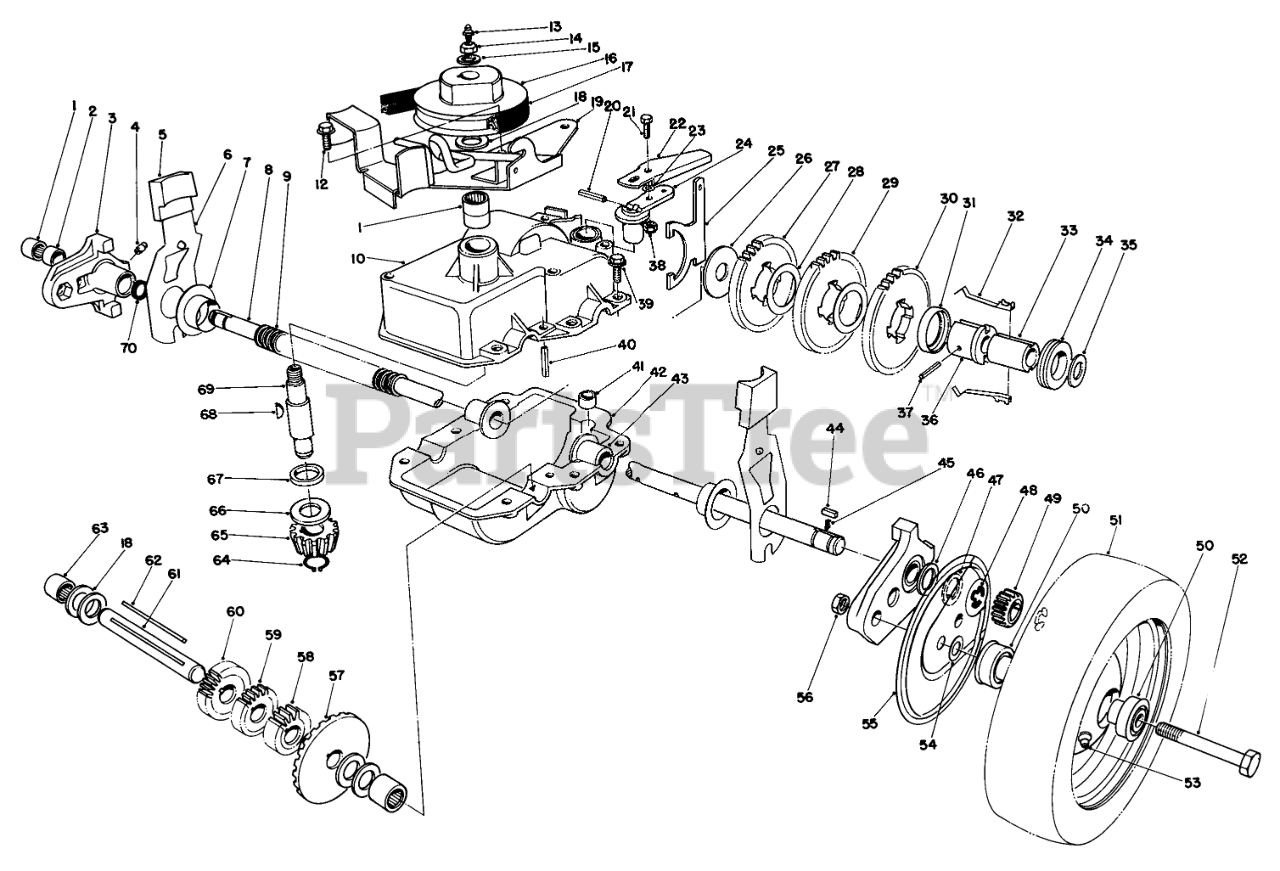

GEAR CASE ASSEMBLY (MODEL 22020) Parts Diagram

  • Title

1

Toro 47-7270

BEARING-NEEDLE

$29.99

$

In Stock, Qty 7

0

2

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

3

Toro 48-2540

Pivot Arm Assembly (Incl. Ref. #1-2, 4 & 70)
(Superseded to 53-7940)

$

$

Not available

4

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, Qty 8

0

5

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 13

0

6

Toro 48-2390

SPRING ARM ASM

$

$

Not available

7

Toro 48-2170

CAP-END

$10.99

$

In Stock, Qty 5

0

8

Toro 44-0850

Output Shaft
(Superseded to 12-6659)

$236.99

$

Usually ships in 3-6 days

0

9

Toro 24-7922

CONDUIT-CONVOLUTED, SPLIT

$10.99

$

Usually ships in 3-6 days

0

10

Case-Upper

Note: Order complete Gear Case Assembly 48-2500.

$

$

Not available

12

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

13

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 16

0

14

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

15

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

16

Toro 39-6740

PULLEY

$55.99

$

In Stock, only 1 left!

0

17

Toro 36-8070

V-BELT

$15.99

$

In Stock, Qty 20+

0

18

Toro 36-4790

WASHER-THRUST

$2.99

$

In Stock, only 2 left!

0

19

Toro 48-2490

BELT GUIDE BRKT W A

$

$

Not available

20

Toro 32121-99

PIN-COIL

$1.49

$

In Stock, only 3 left!

0

21

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 12

0

22

Toro 48-2560

Cover-Shift Lever
(Superseded to 55-8040)

$

$

Not available

23

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 29-9560

LEVER-SHIFT

$15.99

$

Usually ships in 3-6 days

0

25

Toro 29-9520

Shift Yoke
(Superseded to 60-8870)

$23.99

$

In Stock, only 3 left!

0

26

Toro 29-9690

WASHER

$12.99

$

Usually ships in 3-6 days

0

27

Toro 42-4740

GEAR-38T

$82.99

$

In Stock, only 2 left!

0

28

Toro 36-4770

WASHER

$6.49

$

Usually ships in 3-6 days

0

29

Toro 29-9271

GEAR-42T

$86.99

$

Usually ships in 3-6 days

0

30

Toro 46-3560

GEAR

$77.99

$

In Stock, only 2 left!

0

31

Toro 39-7830

KEY RETAINER

$

$

Not available

32

Toro 39-6470

Key
(Superseded to 29-9330)

$27.99

$

In Stock, Qty 8

0

33

Toro 39-6720

SLEEVE

$15.99

$

Usually ships in 3-6 days

0

34

Toro 29-9340

COLLAR-SHIFT

$38.99

$

Usually ships in 3-6 days

0

35

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 13

0

36

Toro 39-6730

Body-Sleeve
(Superseded to 55-8010)

$19.99

$

In Stock, Qty 5

0

37

Toro 32121-108

PIN-SPIROL

$6.99

$

Usually ships in 3-6 days

0

38

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

39

Toro 32144-44

SCREW-HWH, THREAD ROLL

$1.49

$

In Stock, only 4 left!

0

40

Toro 32121-100

ROLL PIN 3/16 X 1 IN

$1.99

$

Usually ships in 3-6 days

0

41

Toro 29-9570

BUSHING-YOKE

$11.99

$

In Stock, only 4 left!

0

42

Case-Lower

Note: Order complete Gear Case Assembly 48-2500.

$

$

Not available

43

Toro 48-2450

BUSHING

$15.99

$

Usually ships in 3-6 days

0

44

Toro 39-9680

KEY RECTANGULAR

$5.49

$

In Stock, Qty 20+

0

45

Toro 39-9650

SPRING-COMPRESSION

$2.99

$

In Stock, Qty 20+

0

46

Toro 48-2890

THRUST WASHER

$16.99

$

Usually ships in 3-6 days

0

47

Toro 48-2580

KEYED WASHER

$12.99

$

Usually ships in 3-6 days

0

48

Toro 32151-68

RING-RETAINING
(Superseded to 65-2720)

$1.49

$

In Stock, Qty 20+

0

49

Toro 39-9160

GEAR-PINION

$13.99

$

In Stock, Qty 20+

0

50

Toro 48-2260

WHEEL BRG

$

$

Not available

51

Toro 48-2300

Wheel & Tire Assembly (Incl. Ref. #50 & 53)

$

$

Not available

52

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

53

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 16

0

54

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

55

Toro 44-0600

WHEEL COVER

$

$

Not available

56

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

57

Toro 39-6670

BEVEL GEAR

$

$

Not available

58

Toro 46-3540

GEAR-12T

$13.99

$

In Stock, Qty 5

0

59

Toro 46-3550

GEAR-14T

$21.99

$

In Stock, only 1 left!

0

60

Toro 39-6650

GEAR-18T

$13.99

$

In Stock, only 2 left!

0

61

Toro 48-2520

Shaft-Intermediate
(Superseded to 53-7950)

$52.99

$

In Stock, only 1 left!

0

62

Toro 39-7841

Key Square
(Superseded to 39-7843)

$

$

Not available

63

Toro 252-103

BEARING-NEEDLE, CLOSED

$23.99

$

In Stock, only 4 left!

0

64

Toro 32151-57

RING-RETAINING

$5.49

$

In Stock, only 3 left!

0

65

Toro 39-6660

PINION-BEVEL

$38.99

$

In Stock, only 2 left!

0

66

Toro 47-2910

WASHER-THRUST

$13.99

$

In Stock, only 1 left!

0

67

Toro 47-7260

SEAL

$8.49

$

In Stock, only 2 left!

0

68

Toro 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 20+

0

69

Toro 48-2460

Shaft Input
(Superseded to 13-5149)

$71.99

$

Usually ships in 3-6 days

0

70

Toro 47-7260

SEAL

$8.49

$

In Stock, only 2 left!

0

Toro 48-2500

Gear Case Assembly (Incl. Ref. #8,10-16, 18-43 & 57-69)
(Superseded to 61-8032)

Note: Not illustrated

$1159.99

$

Usually ships in 3-6 days

0
