22025 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) GAS TANK ASSEMBLY Parts Diagram

Walk-Behind Mower

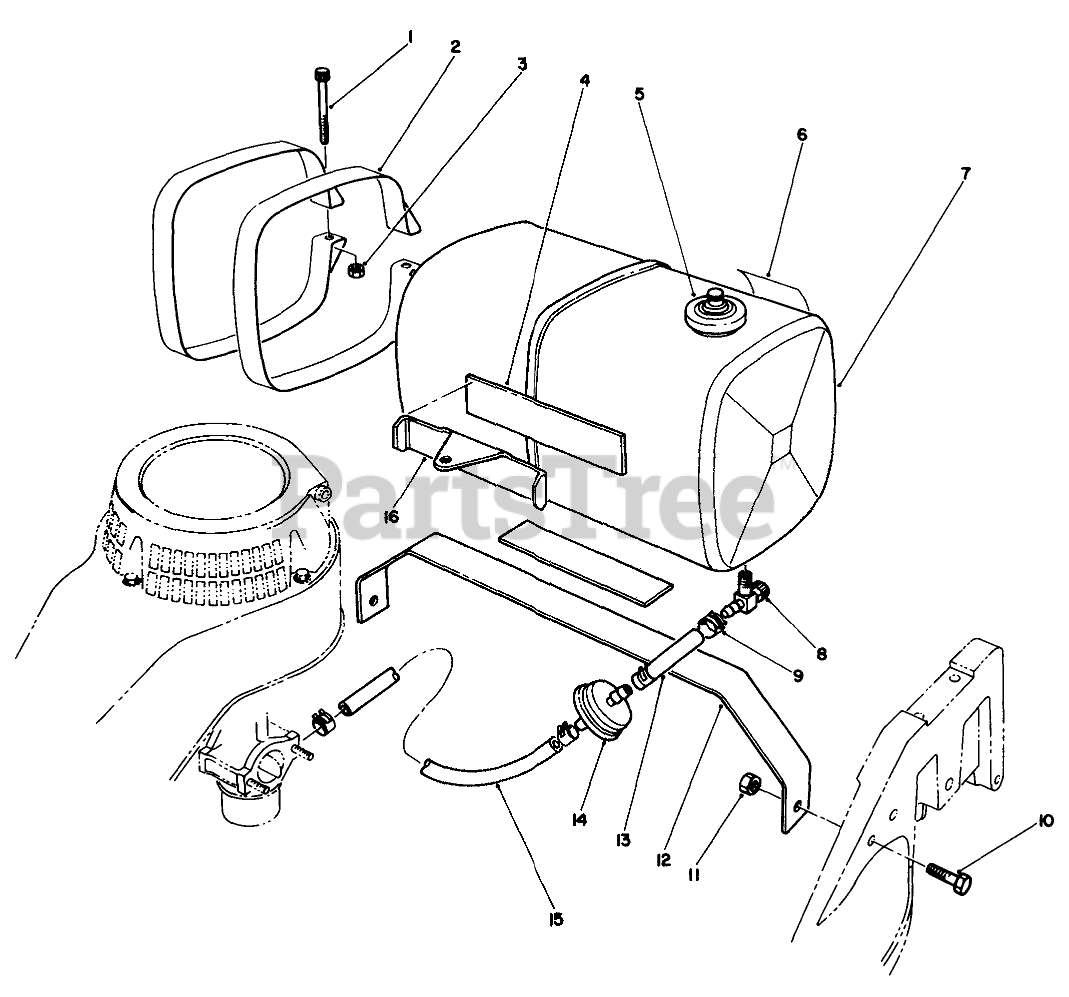

GAS TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 3274-62

SCREW-HSH

$

$

Not available

2

Toro 39-0570

TANK STRAP WA

$123.99

$

Usually ships in 3-6 days

0

3

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 10

0

4

Toro 52-2290

ISOLATOR PAD

$

$

Not available

5

Toro 55-4700

GAS CAP

$

$

Not available

6

Toro 62-7600

DECAL - FUEL

$11.99

$

Usually ships in 3-6 days

0

7

Toro 52-2331

Tank-Gas (Incl. Ref. #5)

$360.99

$

Usually ships in 3-6 days

0

8

Toro 304-71

.125 ID SHUTOFF VALVE

$

$

Not available

9

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 14

0

10

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 52-2280

BOTTOM TANK MT

$

$

Not available

13

Toro 51-3210

HOSE-FUEL

$4.49

$

Usually ships in 3-6 days

0

14

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 20+

0

15

Toro 51-3211

LINE-GAS

$6.49

$

In Stock, Qty 6

0

16

Toro 52-2270

FRT TANK MOUNT

$

$

Not available
