22026 - Toro Walk-Behind Mower (SN: 230000001 - 230999999) (2003) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

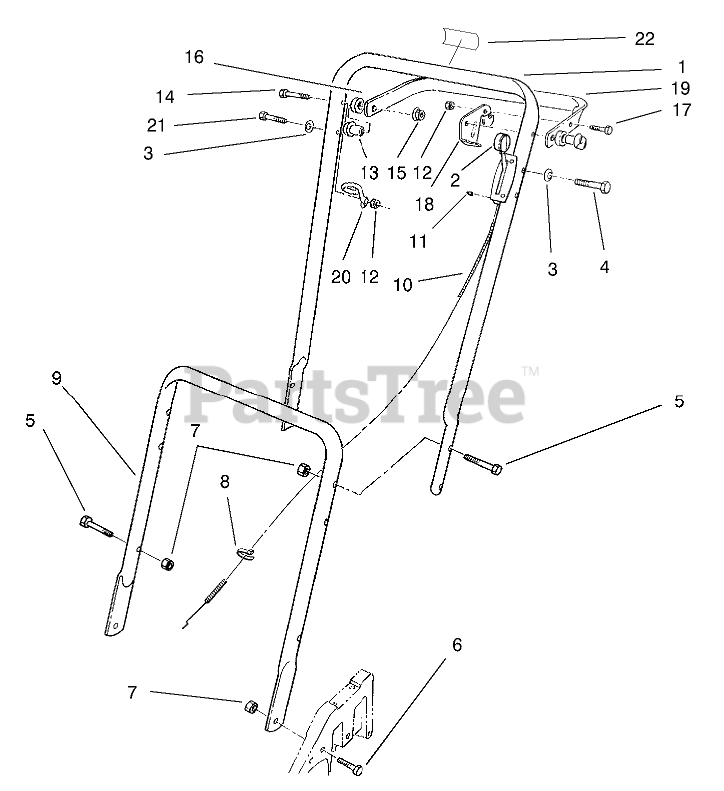

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 74-2150-03

UPPER HANDLE

$

$

Not available

2

Toro 82-9950

CONTROL-THROTTLE

$84.99

$

Usually ships in 3-6 days

0

3

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 15

0

4

Toro 321-13

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

5

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

9

Toro 52-2370-03

LOWER HANDLE

$

$

Not available

10

Toro 70-1062

CABLE-THROTTLE

$

$

Not available

11

Toro 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

14

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

15

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

16

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

17

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 66-5350

LEVER-CONTROL

$13.99

$

Usually ships in 3-6 days

0

19

Toro 61-8270-03

BAR-CONTROL

$100.99

$

Usually ships in 3-6 days

0

20

Toro 46-8081

GUIDE-ROPE

$20.99

$

Usually ships in 3-6 days

0

21

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

22

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0
