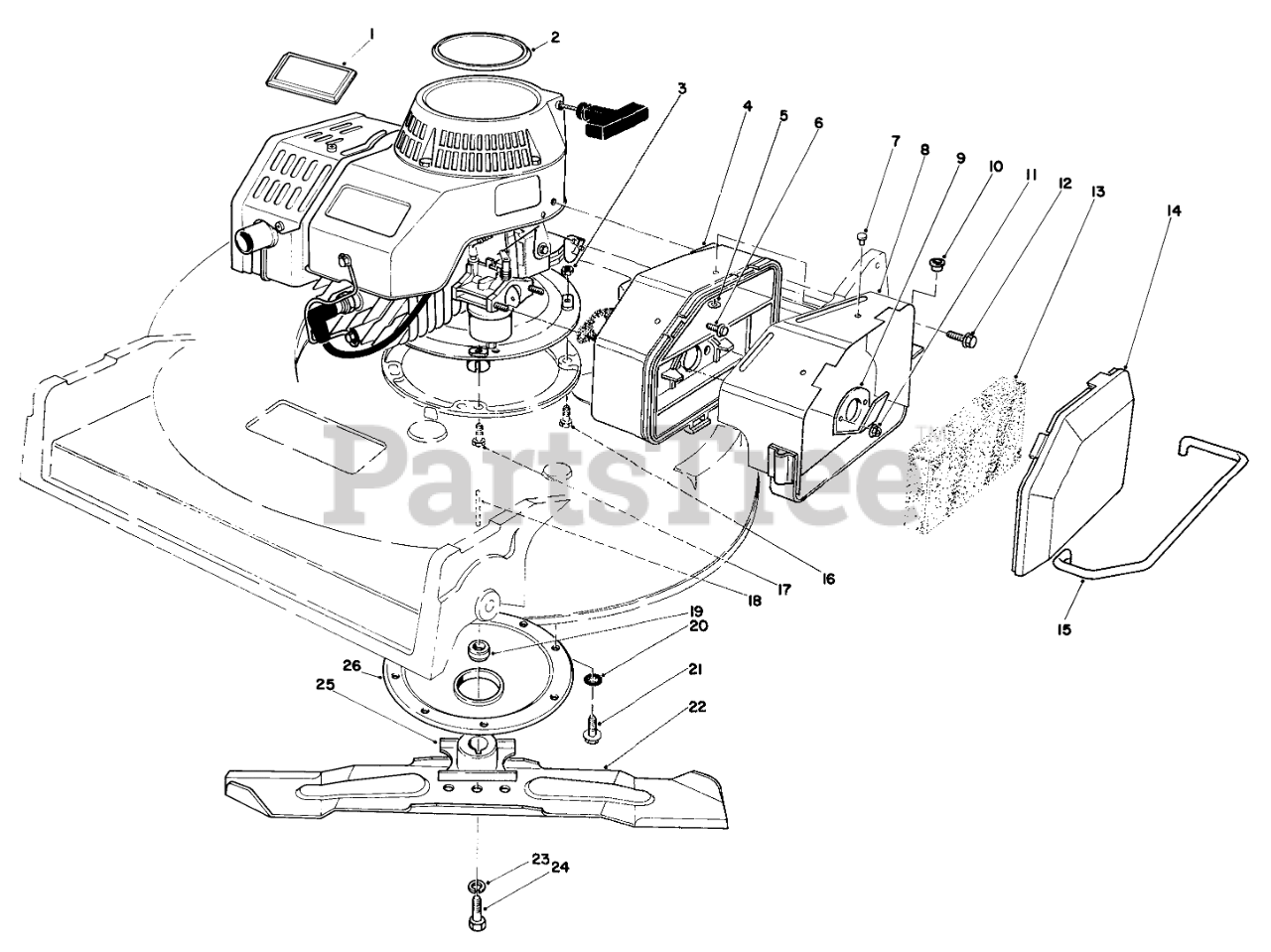

22035 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) ENGINE ASSEMBLY (MODEL 22030) Parts Diagram

Walk-Behind Mower

ENGINE ASSEMBLY (MODEL 22030) Parts Diagram

  • Title

1

Toro 46-8291

Plate-Logo
(Superseded to 71-1260)

$7.49

$

Usually ships in 3-6 days

0

2

Toro 49-9030

Plate-Engine Logo
(Superseded to 77-0040)

$11.99

$

Usually ships in 3-6 days

0

3

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

4

Toro 52-2200

AIR CLEANER ASM

$553.99

$

Usually ships in 3-6 days

0

5

Toro 3269-6

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

6

Toro 51-3220

HEX FL HD M.6X1.0X25MM

$

$

Not available

7

Toro 3269-5

RIVET-POP

$1.49

$

Usually ships in 3-6 days

0

8

Toro 52-2250

AIR CLEANER COVER WA

$

$

Not available

9

Toro 81-0140

SPIT BACK DEFLECTOR

$16.99

$

Usually ships in 3-6 days

0

10

Toro 237-127

5/16 ID BSHG

$

$

Not available

11

Toro 49-7810

NUT-LOCK
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

12

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 6

0

13

Toro 81-0100

FILTER

$9.49

$

In Stock, only 4 left!

0

14

Toro 81-0120

AIR CLEANER COVER

$

$

Not available

15

Toro 52-2240

AIR CLEANER GUARD

$

$

Not available

16

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

17

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

18

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

19

Toro 52-2190

SPACER-BLADE RETAINER

$11.99

$

Usually ships in 3-6 days

0

20

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

In Stock, only 3 left!

0

21

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

22

Toro 42-1000

BLADE-21in
(Superseded to 107-4276-03)

$30.99

$

In Stock, Qty 7

0

23

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

24

Toro 26-0670

SCREW-BLADE

$

$

Not available

25

Toro 52-2170

RETAINER-BLADE
(Superseded to 52-2170-03)

$72.99

$

In Stock, only 4 left!

0

26

Toro 48-2591

PROTECTOR-CRANKSHAFT

$163.99

$

Usually ships in 3-6 days

0
