22038 - Toro 53cm Walk-Behind Mower (SN: 099000001 - 099999999) (1999) ENGINE & BLADE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower

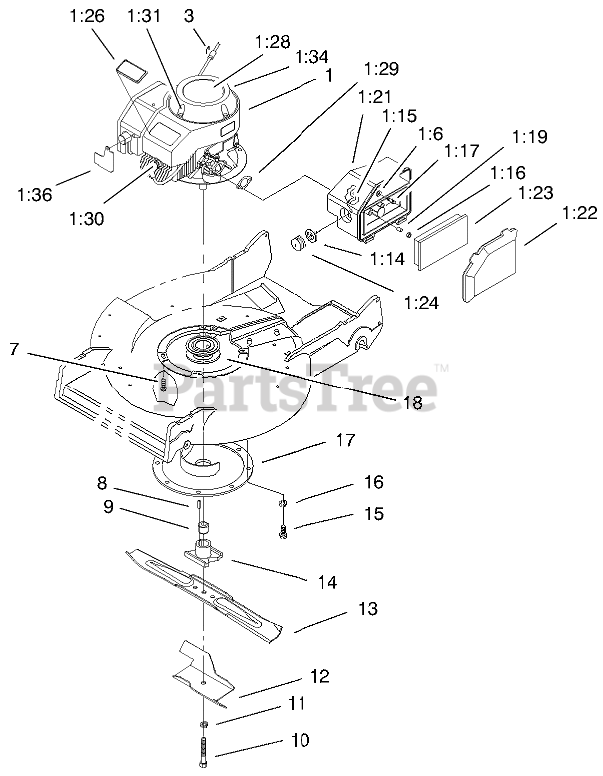

ENGINE & BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 61-8062

ENGINE ASM
(Superseded to 12-8099)

$

$

Not available

1:6

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

1:14

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

1:15

Toro 44-3172

HOSE-PRIMER

$5.49

$

In Stock, Qty 8

0

1:16

Toro 50-7180

NUT

$5.49

$

In Stock, only 3 left!

0

1:17

Toro 51-2690

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

1:19

Toro 62-3980

SPACER

$2.49

$

Usually ships in 3-6 days

0

1:21

Toro 63-9330

BODY-AIR CLEANER

$

$

Not available

1:22

Toro 63-9340

COVER-AIR CLEANER

$49.99

$

In Stock, only 2 left!

0

1:23

Toro 63-9380

ELEMENT-AIR CLEANER

$11.99

$

In Stock, Qty 7

0

1:24

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

1:26

Toro 71-1260

DECAL - PROLINE

$7.49

$

Usually ships in 3-6 days

0

1:28

Toro 77-0040

DECAL-2 CYC RECOIL COMM

$11.99

$

Usually ships in 3-6 days

0

1:29

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, Qty 10

0

1:30

Toro 81-0181

Sparkplug
(Superseded to 50-1170)

$3.49

$

In Stock, Qty 20+

0

1:31

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 6

0

1:34

Toro 81-5940

RECOIL ASM

$

$

Not available

1:36

Toro 93-7661

EXTENSION-MUFFLER GUARD

$

$

Not available

1:33

Toro 81-2350

SCREW

$12.99

$

Usually ships in 3-6 days

0

3

Toro 3290-443

STAPLE

$

$

Not available

7

Toro 66-9300

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

8

Toro 27-6300

KEY-SQUARE

$6.49

$

In Stock, only 1 left!

0

9

Toro 52-2190

SPACER-BLADE RETAINER

$11.99

$

Usually ships in 3-6 days

0

10

Toro 26-0670

SCREW-BLADE

$

$

Not available

11

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

12

Toro 92-1599-03

STIFFENER-BLADE

$76.99

$

In Stock, only 2 left!

0

13

Toro 14-9419

Blade
(Superseded to 91-2256-03)

$31.99

$

In Stock, Qty 13

0

14

Toro 52-2170

RETAINER-BLADE
(Superseded to 52-2170-03)

$72.99

$

In Stock, only 4 left!

0

15

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

16

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

In Stock, only 3 left!

0

17

Toro 65-5860

PROTECTOR-CRANKSHAFT
(Superseded to 125-8370)

$101.99

$

Usually ships in 3-6 days

0

18

Toro 46-7910

PULLEY-DRIVER

$36.99

$

In Stock, only 2 left!

0
