22145 - Toro 21" ProLine Recycler Walk-Behind Mower (SN: 069000001 - 069999999) (1996) ENGINE ASSEMBLY Parts Diagram

21" ProLine Recycler Walk-Behind Mower

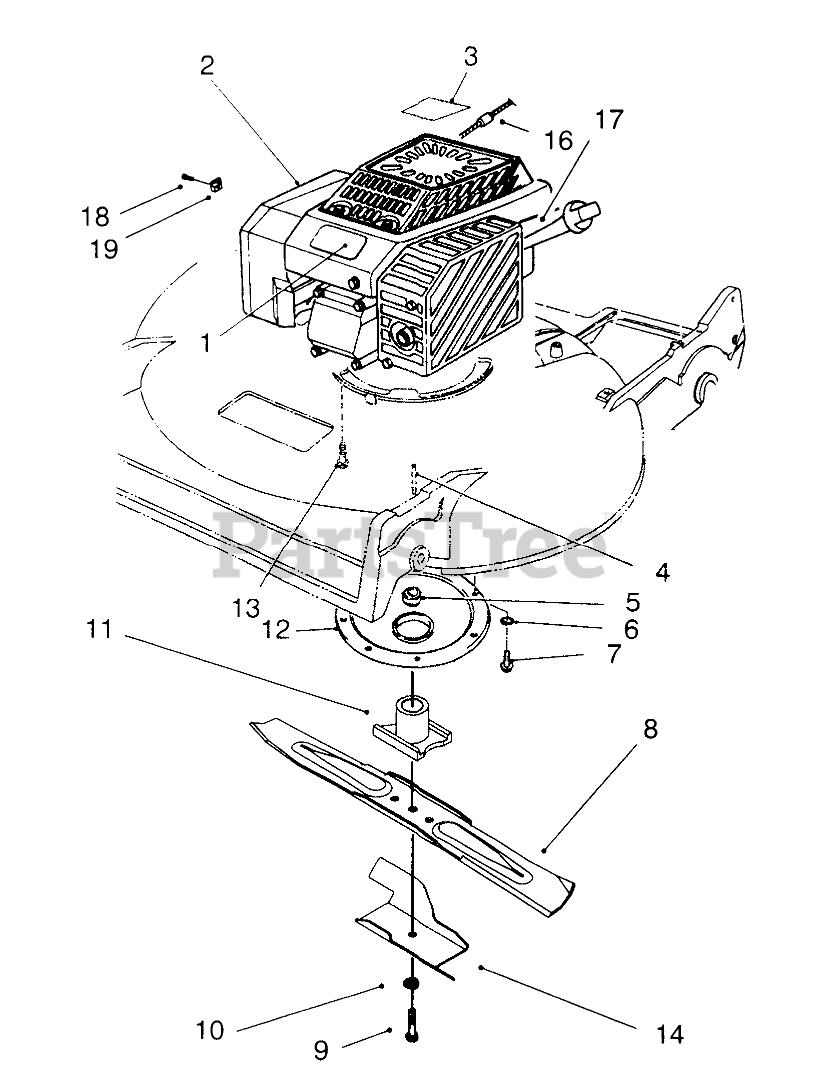

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 84-4960

DECAL - PROLINE

$7.99

$

Usually ships in 3-6 days

0

2

Toro 77-8971

Engine-Complete
(Superseded to 77-9020)

$

$

Not available

3

Toro 71-9270

DECAL - ENGINE

$

$

Not available

4

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

5

Toro 52-2190

SPACER-BLADE RETAINER

$11.99

$

Usually ships in 3-6 days

0

6

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

In Stock, only 3 left!

0

7

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

8

Toro 14-9419

Blade
(Superseded to 91-2256-03)

$31.99

$

In Stock, Qty 14

0

9

Toro 26-0670

SCREW-BLADE

$

$

Not available

10

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

11

Toro 52-2170

RETAINER-BLADE
(Superseded to 52-2170-03)

$72.99

$

In Stock, only 4 left!

0

12

Toro 48-2591

PROTECTOR-CRANKSHAFT

$163.99

$

Usually ships in 3-6 days

0

13

Toro 32144-102

SCREW-HWH

$3.49

$

In Stock, Qty 5

0

14

Toro 92-1599

Accelerator
(Superseded to 92-1599-03)

$76.99

$

In Stock, only 2 left!

0

16

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

17

Toro 77-9550

COVER - BRAKE F/W

$

$

Not available

18

Toro 86-7990

CLAMP SCREW F/W ENGINE

$3.49

$

Usually ships in 3-6 days

0

19

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

Toro 77-9020

Short Block

Note: Not illustrated

$

$

Not available
