22170 - Toro Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) HANDLE AND CONTROLS ASSEMBLY Parts Diagram

Recycler Walk-Behind Mower

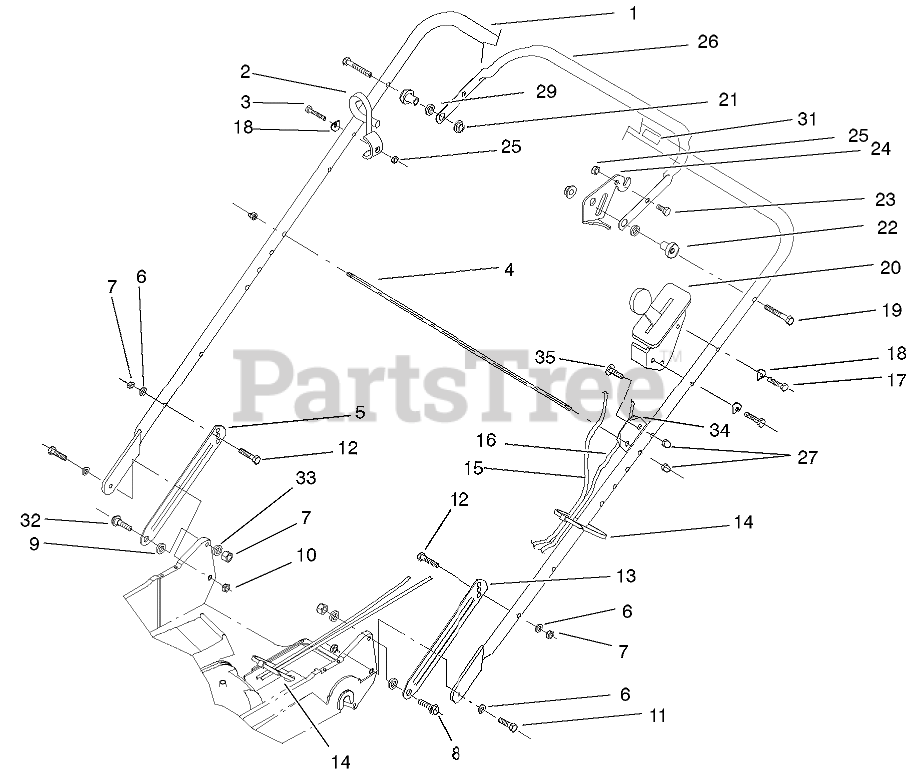

HANDLE AND CONTROLS ASSEMBLY Parts Diagram

  • Title

1

Toro 98-2000-03

HANDLE

$120.99

$

Usually ships in 3-6 days

0

2

Toro 46-8081

GUIDE-ROPE

$20.99

$

Usually ships in 3-6 days

0

3

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

4

Toro 48-2810

ROD-SUPPORT, BAG

$27.99

$

Usually ships in 3-6 days

0

5

Toro 100-3297-03

LATCH-HANDLE, RH

$9.49

$

In Stock, only 2 left!

0

6

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 10

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, Qty 5

0

9

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

10

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

11

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

12

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 100-3298-03

LATCH-HANDLE, LH

$9.49

$

In Stock, only 2 left!

0

14

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

15

Toro 100-2838

CABLE-BRAKE

$

$

Not available

16

Toro 70-1061

CABLE-THROTTLE
(Superseded to 106-0888)

$18.99

$

In Stock, only 2 left!

0

17

Toro 321-13

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

18

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 15

0

19

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

20

Toro 82-9950

CONTROL-THROTTLE

$84.99

$

Usually ships in 3-6 days

0

21

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

22

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

23

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 66-5350

LEVER-CONTROL

$13.99

$

Usually ships in 3-6 days

0

25

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

26

Toro 61-8270-03

BAR-CONTROL

$100.99

$

Usually ships in 3-6 days

0

27

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

28

Toro 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

29

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

31

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

32

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 4 left!

0

33

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

34

Toro 104-1326

PLATE-ALIGNING, BAG

$19.99

$

Usually ships in 3-6 days

0

35

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

99

Toro 100-2512

TUBE-DRAIN, OIL

Note: Not illustrated

$14.99

$

Usually ships in 3-6 days

0
