22178 - Toro 21" Heavy-Duty Rear Bagger Walk-Behind Mower (SN: 260004001 - 260999999) (2006) ENGINE AND TANK ASSEMBLY Parts Diagram

21" Heavy-Duty Rear Bagger Walk-Behind Mower

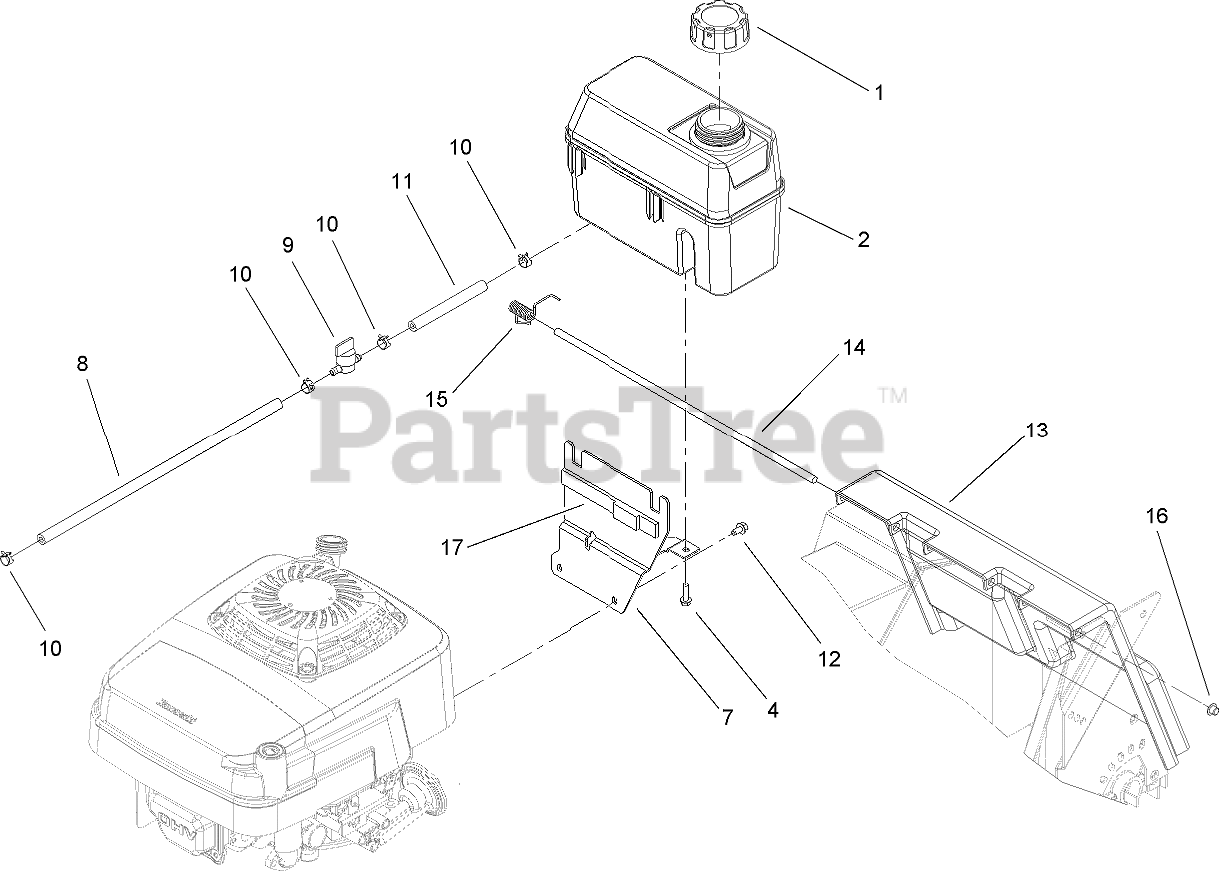

ENGINE AND TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 93-7198

CAP-GAS

$15.99

$

Usually ships in 3-6 days

0

2

Toro 106-0625

Tank-Fuel
(Superseded to 117-3510)

$92.99

$

In Stock, Qty 6

0

4

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

7

Toro 110-4950-03

TANK MOUNT ASM
(Superseded to 115-0954-03)

$42.99

$

In Stock, only 3 left!

0

8

Toro 109-0296

HOSE-FUEL

$10.99

$

In Stock, only 4 left!

0

9

Toro 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 18

0

10

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

11

Toro 109-0650

HOSE-FUEL

$7.99

$

In Stock, only 1 left!

0

12

Toro 104-2628

SCREW-HWH

$1.99

$

In Stock, Qty 9

0

13

Toro 107-4287

DOOR-DISCHARGE, REAR
(Superseded to 114-3445-03)

$85.99

$

Usually ships in 3-6 days

0

14

Toro 107-4286

ROD-DOOR

$15.99

$

Usually ships in 3-6 days

0

15

Toro 110-2139

SPRING-TORSION, DOOR

$5.99

$

Usually ships in 3-6 days

0

16

Toro 32112-1

PUSHNUT-CAP, WASHER

$6.49

$

Usually ships in 3-6 days

0

17

Toro 110-4931

DAMPER-RUBBER, TANK

$

$

Not available
