22186 TE - Toro 53cm Walk-Behind Mower (SN: 312000001 - 312999999) (2012) ENGINE AND BLADE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower

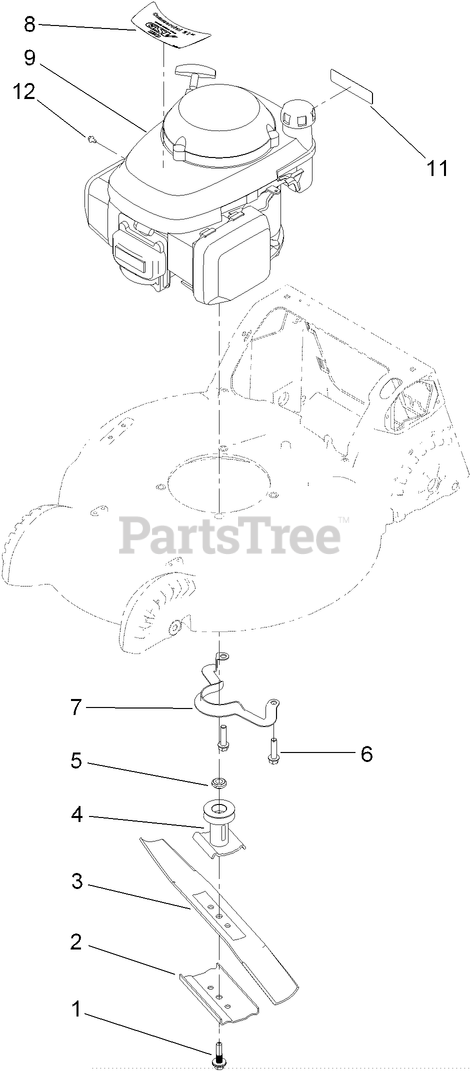

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 117-5270

BOLT-BLADE

$5.49

$

In Stock, Qty 19

0

2

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 20+

0

3

Toro 108-3759-03

BLADE-BAGGING

$28.99

$

In Stock, Qty 20+

0

4

Toro 114-2774

DRIVER-BLADE

$33.99

$

In Stock, only 1 left!

0

5

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, Qty 20+

0

6

Toro 32144-102

SCREW-HWH

$3.49

$

In Stock, Qty 5

0

7

Toro 108-8110-03

GUIDE-BELT

$15.99

$

In Stock, only 3 left!

0

8

Toro 117-5245

DECAL-ENGINE

$11.99

$

In Stock, only 1 left!

0

9

ENGINE-HONDA, GSV190

Note: Not serviced separately

$

$

Not available

9

ENGINE-HONDA, GSV190

Note: Obtain parts from www.honda-engines.com

$

$

Not available

11

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

12

Toro 98-1394

SCREW-HWH

$4.49

$

In Stock, only 1 left!

0
