22196 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 310000001 - 310999999) (2010) AIR CLEANER ASSEMBLY HONDA GXV160UH2 T1AH Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

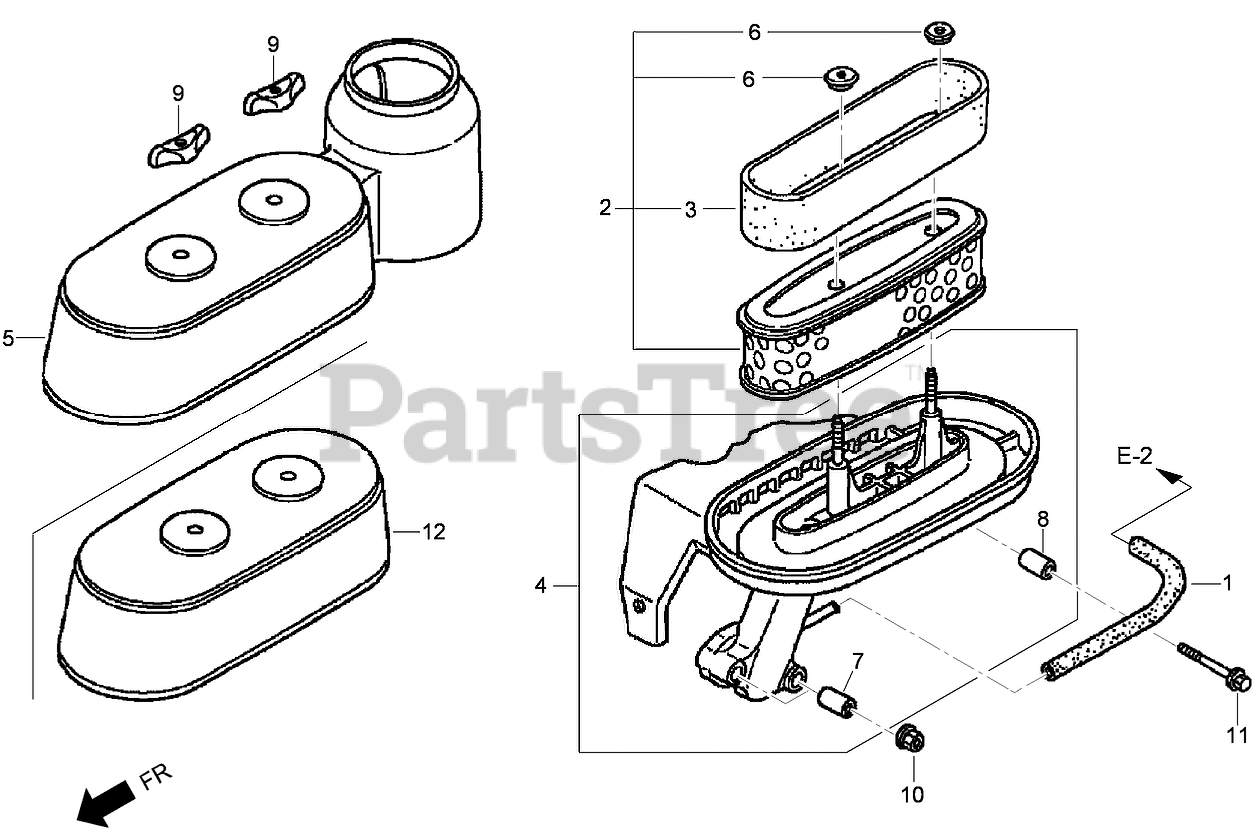

AIR CLEANER ASSEMBLY HONDA GXV160UH2 T1AH Parts Diagram

  • Title

1

Honda 15721-ZE7-000

Tube-Breather

Note: Obtain parts from www.honda-engines.com

$10.99

$

Usually ships in 3-6 days

0

2

Honda 17210-Z1V-003

ELEMENT-CLEANER, AIR

Note: Obtain parts from www.honda-engines.com

$34.99

$

In Stock, Qty 20+

0

3

Honda 17218-ZE6-505

FILTER (OUTER)
(Superseded to 17218-ZE6-305)

Note: Obtain parts from www.honda-engines.com

$7.99

$

In Stock, Qty 10

0

3

Honda 17218-888-003

FILTER (OUTER)
(Superseded to 17218-ZE6-505)

Note: Obtain parts from www.honda-engines.com

$

$

Not available

4

Honda 17220-Z1V-000

HOUSING-CLEANER, AIR
(Superseded to 17220-Z1V-010)

Note: Obtain parts from www.honda-engines.com

$47.99

$

In Stock, Qty 5

0

5

Honda 17231-Z1V-000

COVER-CLEANER, AIR (Engine Serial No. Up To 1036455)

Note: Obtain parts from www.honda-engines.com

$

$

Not available

6

Honda 17232-891-000

GROMMET-CLEANER, AIR

Note: Obtain parts from www.honda-engines.com

$5.49

$

In Stock, Qty 15

0

7

Honda 17238-ZE7-710

COLLAR-CLEANER, AIR

Note: Obtain parts from www.honda-engines.com

$3.99

$

Usually ships in 3-6 days

0

8

Honda 17239-ZE6-300

COLLAR B-CLEANER, AIR

Note: Obtain parts from www.honda-engines.com

$4.49

$

In Stock, only 1 left!

0

9

Honda 90300-Z1V-000

NUT-CLEANER, AIR

Note: Obtain parts from www.honda-engines.com

$5.49

$

In Stock, Qty 20+

0

10

Honda 94050-06000

NUT-FLANGE (6 mm)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 20+

0

11

Honda 95701-06035-00

BOLT-FLANGE (6X35)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 5

0

12

Honda 17231-Z1V-G01

COVER-CLEANER, AIR (Engine Serial No. From 1036456)

Note: Obtain parts from www.honda-engines.com

$47.99

$

In Stock, only 1 left!

0
