22203 TE - Toro 66cm Heavy-Duty Rear Bagger Walk-Behind Mower (SN: 312000001 - 312999999) (2012) BLADE DRIVE ASSEMBLY Parts Diagram

66cm Heavy-Duty Rear Bagger Walk-Behind Mower

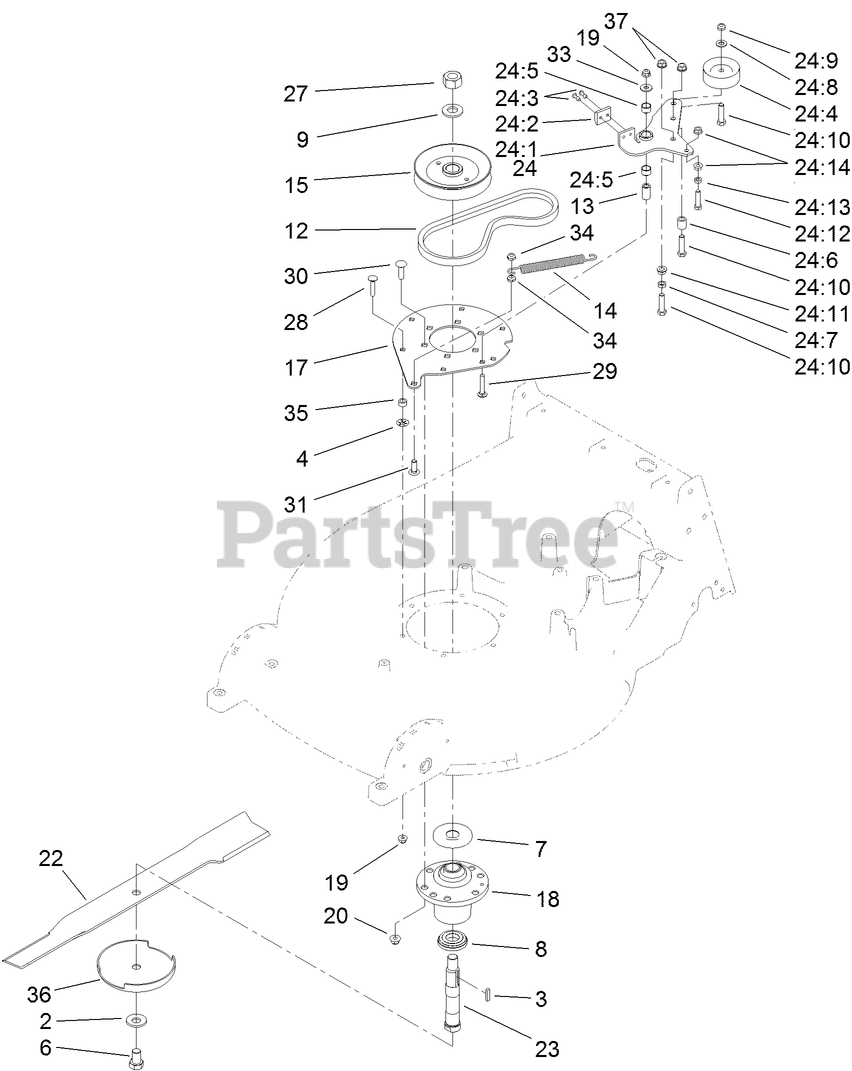

BLADE DRIVE ASSEMBLY Parts Diagram

  • Title

2

Toro 1-513208

WASHER-SPRING

$8.99

$

In Stock, Qty 20+

0

3

Toro 1-807268

KEY-RECTANGLE

$2.99

$

In Stock, Qty 20+

0

4

Toro 78-7170

RING-RETAINING

$1.49

$

In Stock, Qty 20+

0

6

Toro 103-1026

SCREW-CAP

$5.49

$

In Stock, Qty 15

0

7

Toro 103-1330

Guard-Bearing, Top

$5.49

$

Usually ships in 3-6 days

0

8

Toro 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, Qty 8

0

9

Toro 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

12

Toro 116-0823

BELT

$53.99

$

In Stock, only 4 left!

0

13

Toro 103-7108

BUSHING-ARM, IDLER

$26.99

$

Usually ships in 3-6 days

0

14

Toro 103-7896

SPRING-BRAKE

$20.99

$

Usually ships in 3-6 days

0

15

Toro 116-0821

SHEAVE-SPLIT, STEEL (W/HUB)

$75.99

$

Usually ships in 3-6 days

0

17

Toro 116-0092-03

PLATE-ADAPTER, HOUSING

$51.99

$

Usually ships in 3-6 days

0

18

Toro 107-4065

CUTTER HOUSING ASM

$159.99

$

In Stock, only 1 left!

0

19

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 109-0343

BLADE

$33.99

$

In Stock, Qty 11

0

23

Toro 109-2650

SHAFT-SPINDLE

$106.99

$

Usually ships in 3-6 days

0

24

Toro 116-0096

IDLER ARM ASM

$239.99

$

Usually ships in 3-6 days

0

24:1

Toro 116-0085-03

ARM-IDLER

$

$

Not available

24:2

Toro 116-0959

PAD-BRAKE

$

$

Not available

24:3

Toro 103-0138

RIVET-POP

$1.49

$

In Stock, Qty 19

0

24:4

Toro 109-3546

PULLEY-IDLER

$68.99

$

Usually ships in 3-6 days

0

24:5

Toro 103-6111

BEARING

$7.99

$

In Stock, Qty 6

0

24:6

Toro 1-633080

BUSHING-LEVER, LIFT

$10.99

$

Usually ships in 3-6 days

0

24:7

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

24:8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24:9

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

24:10

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24:11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

24:12

Toro 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

24:13

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

24:14

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

27

Toro 3217-46

NUT-HH

$12.99

$

In Stock, Qty 18

0

28

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 9

0

29

Toro 116-0629

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

30

Toro 3231-28

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

31

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

33

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

35

Toro 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

36

Toro 67-7561

CUP-SCALP, ANTI

$42.99

$

In Stock, only 2 left!

0

37

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+
