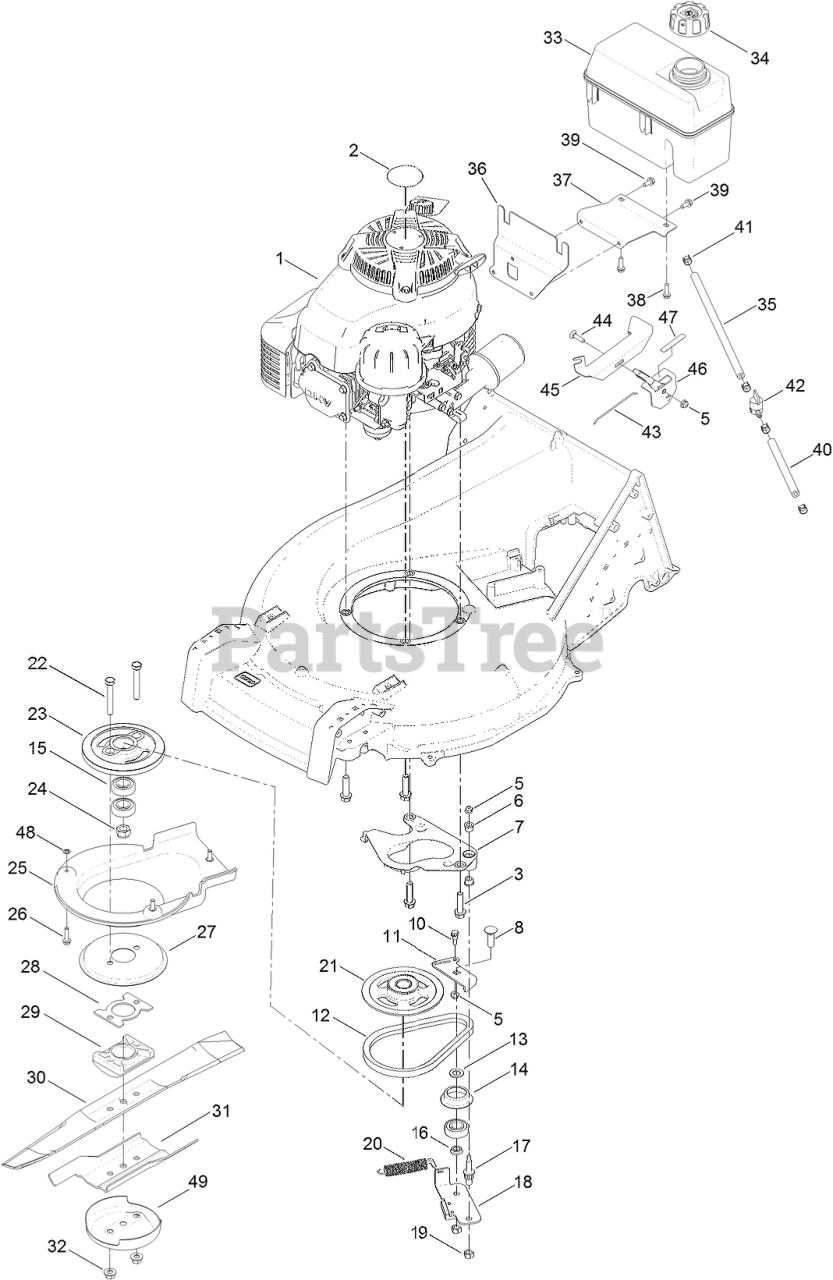

22293 - Toro 53cm Heavy-Duty Recycler Walk-Behind Mower (SN: 315000001 - 315999999) (2015) ENGINE ASSEMBLY Parts Diagram

53cm Heavy-Duty Recycler Walk-Behind Mower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KAWASAKI, FJ180V

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FJ180V

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

2

Toro 110-0520

DECAL

$30.99

$

Usually ships in 3-6 days

0

3

Toro 125-1073

SCREW-HWH

$3.49

$

In Stock, only 2 left!

0

5

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Toro 130-2377

BUSHING-FLANGE

$1.99

$

In Stock, only 3 left!

0

7

Toro 130-2375

PLATE-ANCHOR

$42.99

$

In Stock, Qty 15

0

8

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

10

Toro 42-3560

BOLT-SHOULDER

$5.99

$

In Stock, Qty 18

0

11

Toro 125-8446

PLATE-GUIDE, BBC

$8.99

$

In Stock, only 2 left!

0

12

Toro 110-1790

BELT
(Superseded to 110-1790-SL)

$35.99

$

Usually ships in 3-6 days

0

13

Toro 605256

WASHER-PLAIN

$2.99

$

In Stock, Qty 10

0

14

Toro 108-3790

RETAINER-BELT
(Superseded to 138-3217)

$2.99

$

In Stock, Qty 20+

0

15

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

16

Toro 107-0758

SPACER-BEARING

$3.49

$

In Stock, Qty 11

0

17

Toro 107-0759

BOLT-SHOULDER

$10.99

$

In Stock, Qty 20+

0

18

Toro 125-1063

PLATE-BRAKE

$23.99

$

In Stock, Qty 20+

0

19

Toro 125-5069

NUT-HEX
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

20

Toro 108-3792

SPRING-TENSION, BRAKE

$11.99

$

In Stock, Qty 20+

0

21

Toro 117-5970

PULLEY

$32.99

$

In Stock, only 1 left!

0

22

Toro 3211-42

SCREW-HH

$4.99

$

In Stock, Qty 20+

0

23

Toro 107-0754

DRUM
(Superseded to 126-8108)

$54.99

$

In Stock, only 2 left!

0

24

Toro 108-9342

NUT-HEX

$5.49

$

In Stock, only 2 left!

0

25

Toro 125-1006

COVER

$17.99

$

In Stock, only 4 left!

0

26

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

27

Toro 108-3787

DISC
(Superseded to 138-3225)

$12.99

$

In Stock, only 2 left!

0

28

Toro 130-6405-03

SPACER-DRIVER, BLADE

$6.99

$

In Stock, only 1 left!

0

29

Toro 107-7487

SUPPORT-BLADE

$21.99

$

In Stock, only 2 left!

0

30

Toro 108-3762-03

BLADE-RECYCLING
(Superseded to 108-3762-S)

$29.99

$

In Stock, Qty 17

0

31

Toro 125-1069-03

ACCELERATOR-BLADE

$17.99

$

In Stock, Qty 20+

0

32

Toro 127-6852

NUT-FLANGE, LOCK

$2.99

$

In Stock, Qty 20+

0

33

Toro 117-3510

TANK-FUEL

$92.99

$

In Stock, Qty 6

0

34

Toro 93-7198

CAP-GAS

$15.99

$

Usually ships in 3-6 days

0

35

Toro 109-0297

HOSE-FUEL

$7.99

$

In Stock, only 1 left!

0

36

Toro 125-8381-03

BRACKET-TANK, MOUNTING

$13.99

$

In Stock, only 3 left!

0

37

Toro 125-8382-03

BRACKET-TANK, SUPPORT

$11.99

$

Usually ships in 3-6 days

0

38

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

39

Toro 125-8383

SCREW-HWH

$2.99

$

Usually ships in 3-6 days

0

40

Toro 107-0588

HOSE-FUEL

$5.49

$

In Stock, only 2 left!

0

41

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

42

Toro 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 18

0

43

Toro 130-9654

WIRE-CONTROL

$2.99

$

In Stock, Qty 20+

0

44

Toro 3229-30

SCREW-CARR

$1.49

$

In Stock, Qty 15

0

45

Toro 130-6440-03

BRACKET-MOUNT, THROTTLE

$31.99

$

In Stock, Qty 11

0

46

Toro 130-9655

CONTROL-THROTTLE

$41.99

$

In Stock, Qty 12

0

47

Toro 130-9656

DECAL-THROTTLE, CHOKE

$2.99

$

In Stock, only 2 left!

0

48

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0

49

Toro 125-8440

CUP-ANTI SCALP

$20.99

$

Usually ships in 3-6 days

0
