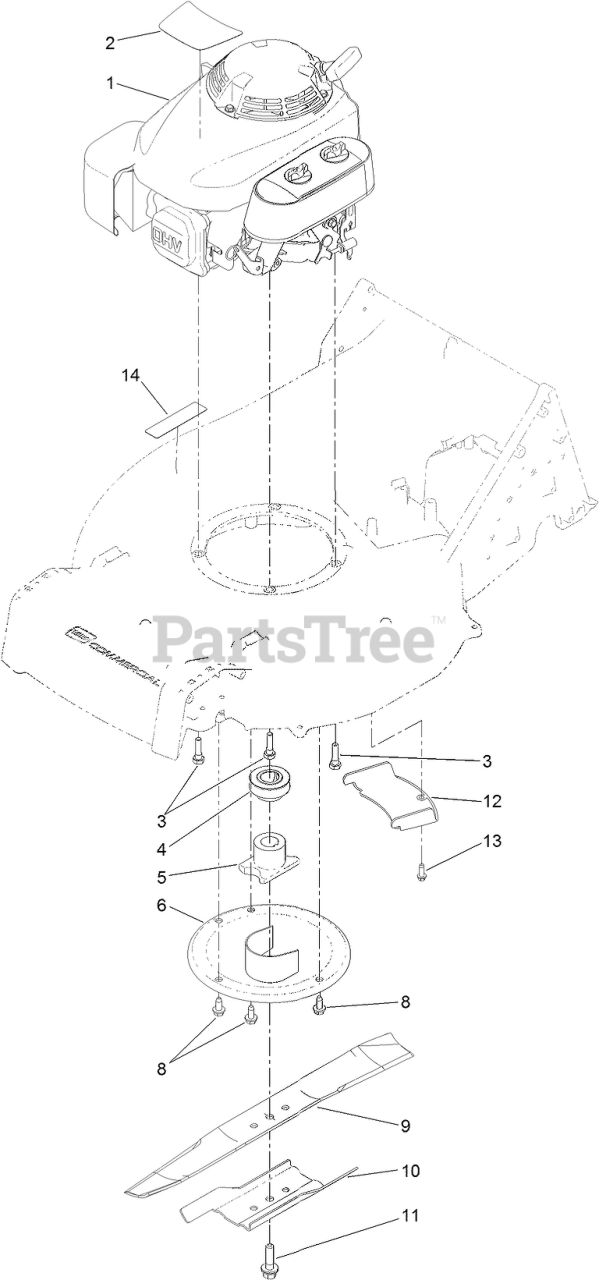

22295 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 314000001 - 314999999) (2014) ENGINE ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 119-7831

ENGINE-HONDA, GXV160UH2 A1TT

$1376.99

$

Usually ships in 3-6 days

0

2

Toro 125-8405

DECAL-ENGINE, HONDA

$6.99

$

In Stock, only 3 left!

0

3

Toro 125-1074

SCREW-HHSH

$3.49

$

In Stock, Qty 9

0

4

Toro 125-8396

PULLEY-DRIVER

$48.99

$

Usually ships in 3-6 days

0

5

Toro 125-1004

DRIVER-BLADE

$33.99

$

In Stock, Qty 11

0

6

Toro 125-8370

PROTECTOR-CRANKSHAFT

$101.99

$

Usually ships in 3-6 days

0

8

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

9

Toro 108-3762-03

BLADE-RECYCLING
(Superseded to 108-3762-S)

$29.99

$

In Stock, Qty 12

0

10

Toro 125-1069-03

ACCELERATOR-BLADE

$17.99

$

In Stock, Qty 20+

0

11

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

12

Toro 125-1024

COVER-BELT

$11.99

$

Usually ships in 3-6 days

0

13

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

14

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0
