22302 (220-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) FRONT WHEEL ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

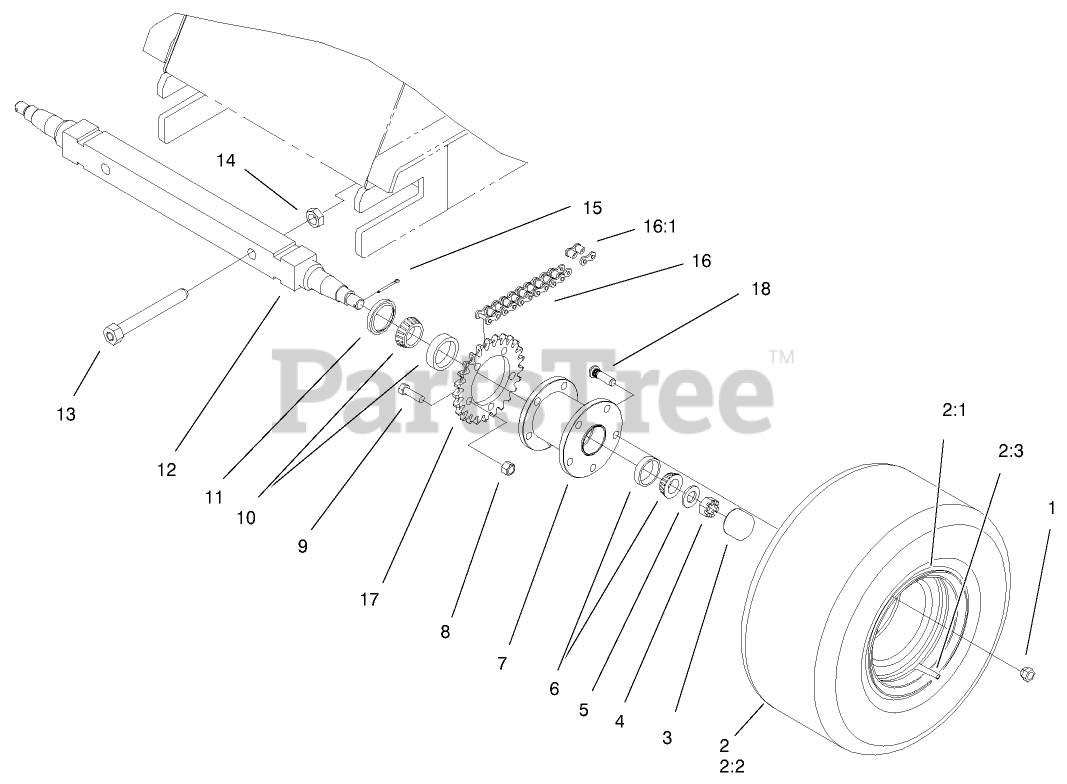

FRONT WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 242-35

NUT-WHEEL

$9.49

$

Usually ships in 3-6 days

0

2

Toro 99-3257

TIRE and WHEEL ASM

$

$

Not available

2:1

Toro 99-3063

WHEEL

$

$

Not available

2:2

Toro 99-3062

TIRE
(Superseded to 98-4757)

$366.99

$

Usually ships in 3-6 days

0

2:3

Toro 106396

TUBE-TIRE

$41.99

$

Usually ships in 3-6 days

0

3

Toro 99-3258

DUST CAP

$18.99

$

Usually ships in 3-6 days

0

4

Toro 32146-14

LOCKNUT
(Superseded to 3296-51)

$6.49

$

In Stock, Qty 20+

0

5

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

6

Toro 99-3260

BEARING-ROLLER TAPERED

$

$

Not available

7

Toro 99-3261

HUB-FRONT

$

$

Not available

8

Toro 3219-4

NUT-HEX

$3.49

$

In Stock, only 1 left!

0

9

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

10

Toro 99-3262

BEARING-CUP and CONE

$105.99

$

Usually ships in 3-6 days

0

11

Toro 106-8184

Seal-Bearing, Wheel

$15.99

$

Usually ships in 3-6 days

0

12

Toro 99-3264

AXLE-FRONT

$

$

Not available

13

Toro 98-4706

BOLT-TENSION

$76.99

$

Usually ships in 3-6 days

0

14

Toro 3218-7

NUT-JAM

$4.99

$

Usually ships in 3-6 days

0

15

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

16

Toro 98-4906

CHAIN-ROLLER

$291.99

$

Usually ships in 3-6 days

0

16:1

Toro 98-9089

LINK-CONNECTING

$17.99

$

In Stock, only 2 left!

0

17

Toro 98-9937

SPROCKET-25T

$248.99

$

Usually ships in 3-6 days

0

18

Toro 242-34

STUD-DRIVE

$13.99

$

In Stock, Qty 8

0
