22302 (220-D) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) INJECTION PUMP ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

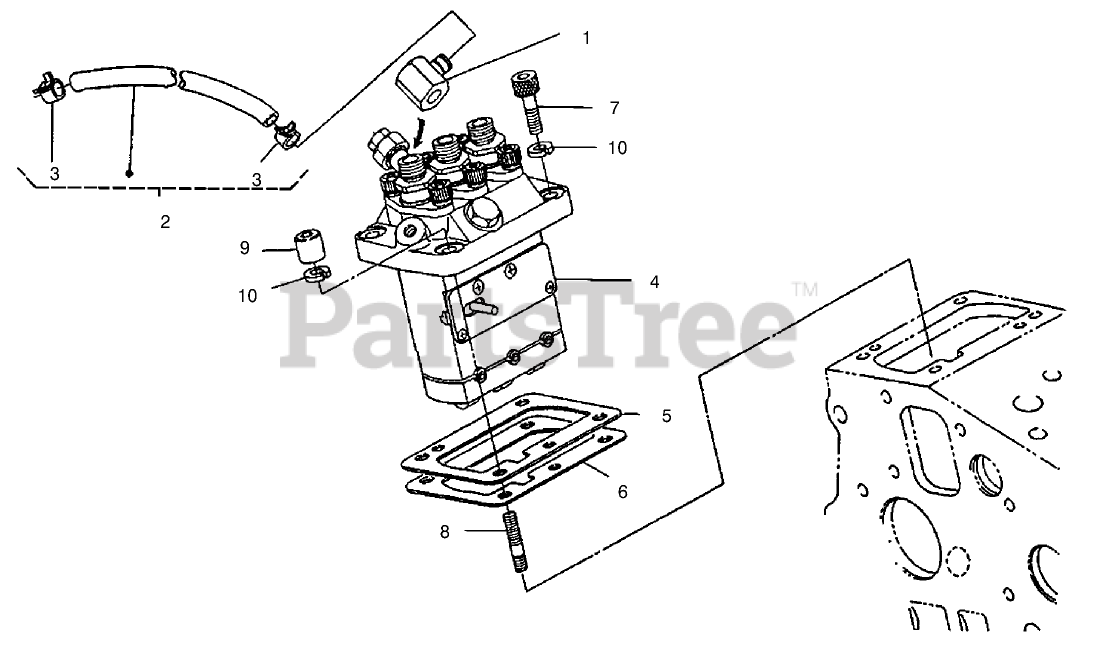

INJECTION PUMP ASSEMBLY Parts Diagram

  • Title

1

Toro 100-1928

JOINT-EYE

$5.99

$

Usually ships in 3-6 days

0

2

Toro 100-1842

FUEL PIPE ASM

$19.99

$

Usually ships in 3-6 days

0

3

Toro 98-9545

BAND-PIPE
(Superseded to 100-2217)

$8.99

$

Usually ships in 3-6 days

0

4

Toro 100-1759

INJECTION PUMP ASM
(Superseded to 130-1223)

$1478.99

$

Usually ships in 3-6 days

0

4

Toro 100-1761

ASSY PUMP, INJ. (S/N 489915 or lower)
(Superseded to 130-1223)

$1478.99

$

Usually ships in 3-6 days

0

5

Toro 100-1951

SHIM-PUMP, INJECTION
(Superseded to 98-9456)

$10.99

$

Usually ships in 3-6 days

0

5

Toro 98-9456

SHIM-INJECTION (0.20MM)

$10.99

$

Usually ships in 3-6 days

0

6

Toro 100-1952

SHIM-PUMP, INJECTION
(Superseded to 98-9457)

$12.99

$

Usually ships in 3-6 days

0

6

Toro 98-9457

SHIM-INJECTION (0.25MM)

$12.99

$

Usually ships in 3-6 days

0

6

Toro 98-9458

SHIM-INJECTION (0.30MM)

$17.99

$

Usually ships in 3-6 days

0

7

Toro 98-9361

BOLT-HSH

$1.49

$

Usually ships in 3-6 days

0

8

Toro 98-9438

STUD

$1.99

$

Usually ships in 3-6 days

0

9

Toro 98-9440

NUT-CAP

$26.99

$

Usually ships in 3-6 days

0

10

Toro 98-9367

WASHER-SPRING
(Superseded to 98-7699)

$0.99

$

Usually ships in 3-6 days

0
