22303 TE (320-D) - Toro Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) FRAME AND LOADER ARM ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

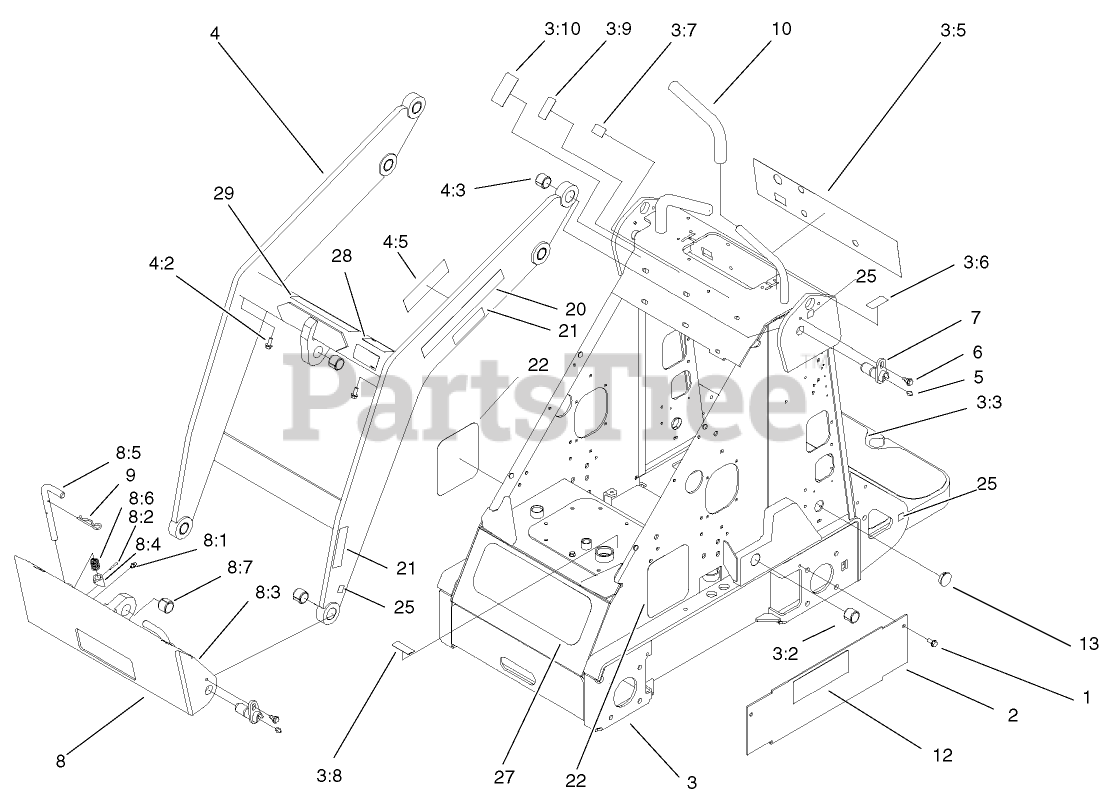

FRAME AND LOADER ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

2

Toro 99-3020-01

COVER-HOSE

$

$

Not available

3

Toro 104-7416

FRAME ASM
(Superseded to 105-8375)

$10352.99

$

Usually ships in 3-6 days

0

3:2

Toro 98-4871

BUSHING-TENSION

$22.99

$

In Stock, only 2 left!

0

3:3

Toro 98-9947

TREAD-FOOT

$34.99

$

Usually ships in 3-6 days

0

3:5

Toro 100-1706

DECAL-PANEL, CONTROL

$

$

Not available

3:6

Toro 98-8219

DECAL-THROTTLE

$17.99

$

In Stock, only 1 left!

0

3:7

Toro 100-1703

DECAL-LIMITER, SPEED

$31.99

$

Usually ships in 3-6 days

0

3:8

Toro 93-6686

DECAL-OIL, HYD

$8.99

$

Usually ships in 3-6 days

0

3:9

Toro 98-8235

DECAL-SELECTOR

$17.99

$

Usually ships in 3-6 days

0

3:10

Toro 100-1704

DECAL-POWER, AUXILIARY

$33.99

$

Usually ships in 3-6 days

0

4

Toro 100-8814

LOADER ASM
(Superseded to 106-8155)

$2282.99

$

Usually ships in 3-6 days

0

4:2

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4:3

Toro 98-4871

BUSHING-TENSION

$22.99

$

In Stock, only 2 left!

0

4:5

Toro 100-1701

DECAL-DANGER

$38.99

$

Usually ships in 3-6 days

0

5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 19

0

6

Toro 99-5105

BOLT-SHOULDER

$6.49

$

In Stock, only 3 left!

0

7

Toro 99-1414

PIN-PIVOT
(Superseded to 112-2609)

$105.99

$

In Stock, only 2 left!

0

8

Toro 98-4690

QUICK ATTACH ASM
(Superseded to 132-8418)

$1402.99

$

Usually ships in 3-6 days

0

8:1

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 19

0

8:2

Toro 32121-94

PIN-SPECIAL

$

$

Not available

8:3

Toro 98-4691-03

MOUNT-ATTACH, QUICK
(Superseded to 130-7708-03)

$1232.99

$

Usually ships in 3-6 days

0

8:4

Toro 98-4692

CAM-ATTACH, QUICK

$

$

Not available

8:5

Toro 100-3373

PIN

$50.99

$

Usually ships in 3-6 days

0

8:6

Toro 98-4694

SPRING-COMPRESSION

$11.99

$

In Stock, only 2 left!

0

8:7

Toro 98-4871

BUSHING-TENSION

$22.99

$

In Stock, only 2 left!

0

9

Toro 3290-468

PIN-COTTER

$1.49

$

Usually ships in 3-6 days

0

10

Toro 98-4845

GRIP-CUSHION

$15.99

$

Usually ships in 3-6 days

0

12

Toro 99-3068

DECAL-4-PAW

$

$

Not available

13

Toro 94-1402

PLUG-HOLE

$1.99

$

Usually ships in 3-6 days

0

20

Toro 99-3167

DECAL-DINGO 320D
(Superseded to 105-8382)

$

$

Not available

21

Toro 100-8821

DECAL-WARNING, PINCH

$9.99

$

In Stock, only 4 left!

0

22

Toro 100-8827

DECAL-DINGO, SIDE

$

$

Not available

25

Toro 93-9084

DECAL-POINT, LIFT

$9.49

$

Usually ships in 3-6 days

0

27

Toro 100-8828

DECAL-DINGO, FRONT

$61.99

$

Usually ships in 3-6 days

0

28

Toro 100-8822

DECAL-NO RIDER

$40.99

$

Usually ships in 3-6 days

0

29

Toro 100-1702

DECAL-CAUTION

$26.99

$

Usually ships in 3-6 days

0
