22305 (322) - Toro Dingo Compact Utility Loader (SN: 220000001 - 220000200) (2002) GROUP 4-HEAD/VALVE/BREATHER ASSEMBLY KOHLER CH22S-66559 Parts Diagram

Dingo Compact Utility Loader

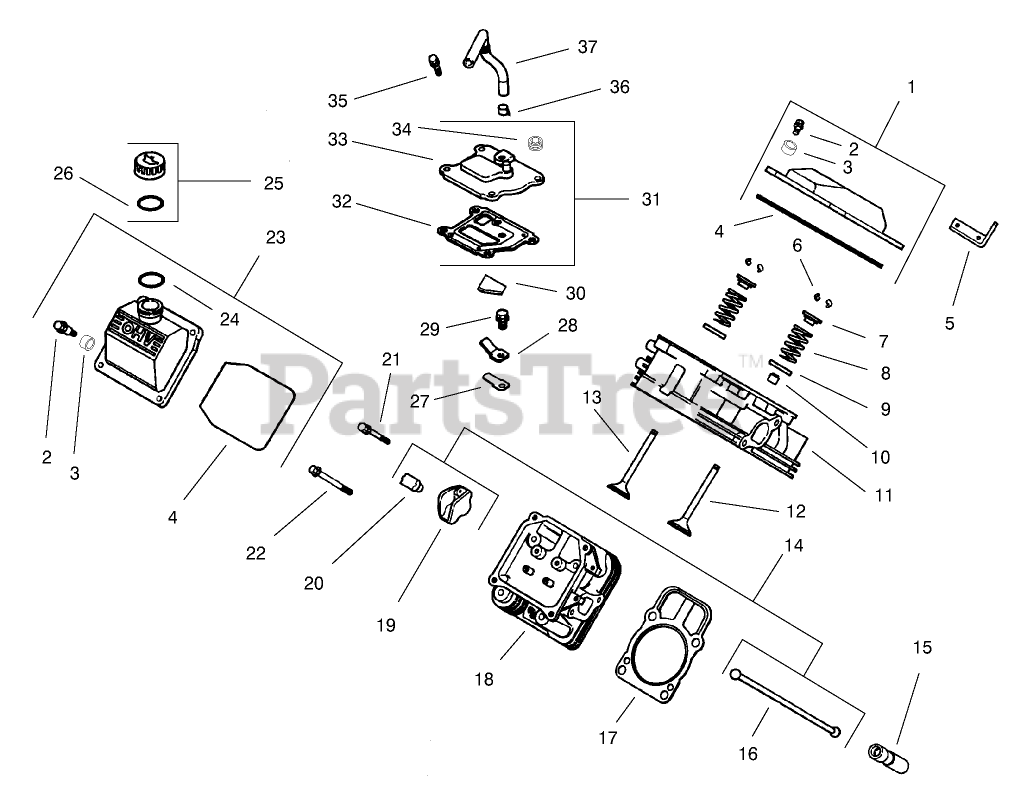

GROUP 4-HEAD/VALVE/BREATHER ASSEMBLY KOHLER CH22S-66559 Parts Diagram

  • Title

1

Kohler 24 755 74-S

Kit-Valve cover, Plain (Includes 3-4)
(Superseded to 24 755 141-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$35.99

$

In Stock, Qty 6

0

2

Kohler M-651030-S

SCREW-FLANGE (M6X1.0X30)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

Kohler 24 112 08-S

Spacer

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

Usually ships in 2-5 days

0

4

Kohler 24 153 16-S

O-Ring
(Superseded to 24 153 23-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

In Stock, Qty 7

0

5

Kohler 24 445 01-S

STRAP-LIFTING
(Superseded to 25 445 03-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

6

Kohler 12 755 03-S

RETAINER KIT

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, Qty 20+

0

7

Kohler 12 173 01-S

CAP-SPRING, VALVE
(Superseded to 25 173 28-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$8.49

$

In Stock, Qty 9

0

8

Kohler 24 089 02-S

SPRING-VALVE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$7.99

$

In Stock, Qty 12

0

9

Kohler 235011-S

RETAINER-SPRING

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, Qty 14

0

10

Kohler 24 032 05-S

Seal-Stem, Valve
(Superseded to 66 032 05-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$11.99

$

In Stock, Qty 20+

0

11

Kohler 24 318 09-S

#1 Cylinder Head ASM
(Superseded to 24 318 68-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

Kohler 24 017 01-S

VALVE-INTAKE (STD)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$30.99

$

In Stock, Qty 18

0

Kohler 24 017 02-S

VALVE-INTAKE (.25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$31.99

$

In Stock, only 3 left!

0

13

Kohler 24 016 01-S

VALVE-EXHAUST (STD)
(Superseded to 32 016 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$14.99

$

In Stock, Qty 20+

0

Kohler 24 016 02-S

VALVE-EXHAUST (.25)
(Superseded to 32 016 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$15.99

$

In Stock, only 3 left!

0

14

Kohler 24 755 66-S

Kit-Train, Valve (Includes 16, 19, 20)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$44.99

$

In Stock, Qty 5

0

15

Toro 12 351 01-S

Lifter-Valve

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

16

Kohler 24 411 05-S

ROD-PUSH

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, Qty 20+

0

17

Kohler 24 041 08-S

Gasket-Head, Cylinder
(Superseded to 24 841 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$45.99

$

In Stock, Qty 11

0

18

Kohler 24 318 10-S

#2 Cylinder Head ASM
(Superseded to 24 318 150-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$240.99

$

In Stock, only 1 left!

0

19

Kohler 25 186 01-S

ARM-ROCKER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$12.99

$

In Stock, only 3 left!

0

20

Kohler 24 599 01-S

Pivot-Arm, Rocker
(Superseded to 24 599 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 12

0

21

Kohler M-640034-S

SCREW-FLANGE (M6X1.0X34)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 17

0

22

Kohler 12 086 16-S

SCREW-FLANGE (M10X1.5X90)
(Superseded to 62 086 08-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.49

$

In Stock, Qty 20+

0

23

Kohler 24 755 75-S

Kit-Valve Cover, Oil Fill (Includes 2-4, 24)
(Superseded to 24 755 140-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$36.99

$

In Stock, Qty 11

0

24

Kohler 24 153 09-S

O-Ring
(Superseded to 24 153 32-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 9

0

25

Kohler 24 755 46-S

Kit-Cap, Oil Fill (Includes 26)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$11.99

$

In Stock, only 3 left!

0

26

Kohler 12 153 03-S

O-Ring
(Superseded to 25 153 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

27

Kohler 24 402 03-S

REED-BREATHER
(Superseded to 24 402 06-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 7

0

28

Kohler 12 018 01-S

Retainer-Reed, Breather
(Superseded to 66 018 04-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, Qty 9

0

29

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 13

0

30

Kohler 24 050 01-S

Filter-Breather
(Superseded to 24 050 11-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 19

0

31

Kohler 24 033 01-S

Kit-Breather (Includes 32-34)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$30.99

$

In Stock, only 4 left!

0

32

Kohler 24 041 23-S

Gasket-Breather
(Superseded to 24 041 67-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$12.99

$

In Stock, Qty 20+

0

33

Kohler 24 096 58-S

Cover-Breather
(Superseded to 24 096 86-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$30.99

$

In Stock, only 4 left!

0

34

Kohler X-75-23-S

Plug
(Superseded to 25 139 60-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 1 left!

0

35

Kohler M-645020-S

SCREW-HHFTF (M6X1.0X20)
(Superseded to 25 086 396-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 20+

0

36

Kohler 25 237 08-S

Clamp-Hose
(Superseded to 25 237 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0

37

Kohler 24 326 31-S

Hose-Breather
(Superseded to 24 326 91-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.99

$

In Stock, only 1 left!

0
