22305 TE (322) - Toro Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) ELECTRICAL ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

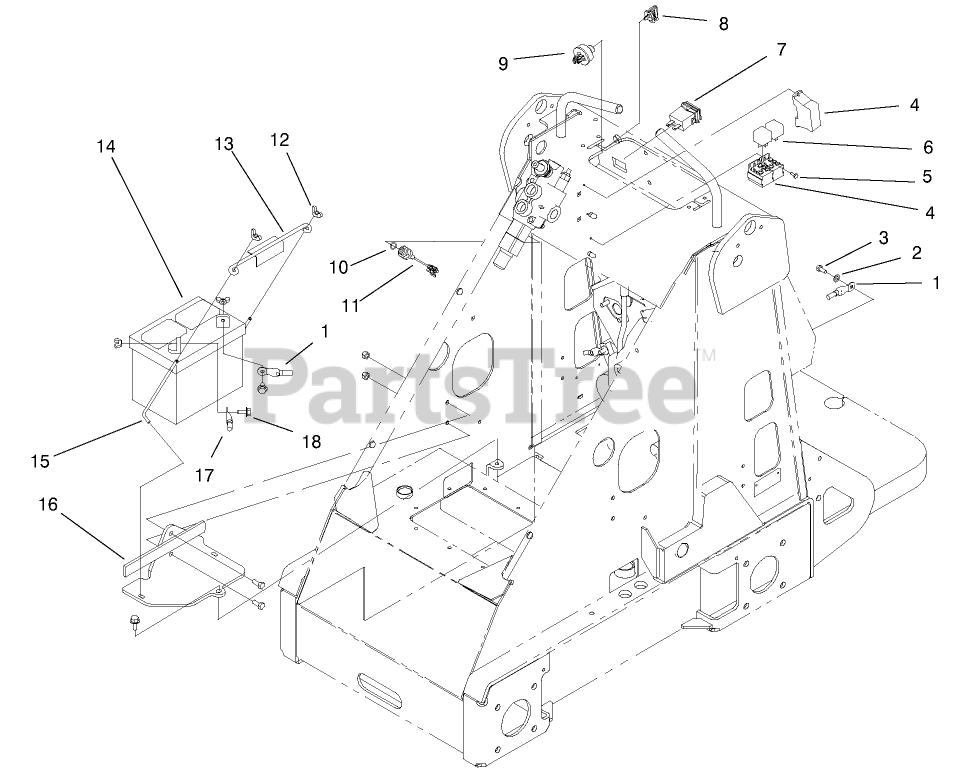

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 111075

WIRE ASM

$23.99

$

Usually ships in 3-6 days

0

2

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 11

0

3

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

4

Toro 99-3161

HARNESS - ELECTRICAL

$

$

Not available

5

Toro 32144-87

SCREW-HWHTF

$1.49

$

Usually ships in 3-6 days

0

6

Toro 98-7249

RELAY

$22.99

$

In Stock, Qty 15

0

7

Toro 94-4208

HOURMETER
(Superseded to 120-2244)

$67.99

$

In Stock, Qty 6

0

8

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

9

Toro 111216

IGNITION SWITCH ASM
(Superseded to 103990)

$27.99

$

In Stock, Qty 12

0

10

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

11

Toro 72-4310

SWITCH-BALL

$96.99

$

Usually ships in 3-6 days

0

12

Toro 32103-22

NUT-WING

$2.99

$

In Stock, only 2 left!

0

13

Toro 113010

HOLDDOWN-BATTERY

$26.99

$

In Stock, only 4 left!

0

14

Toro 94-1867

BATTERY
(Superseded to 104-2492)

$

$

Not available

15

Toro 99-5027

RETAINER-BATTERY

$13.99

$

Usually ships in 3-6 days

0

16

Toro 99-3060-03

BATTERY MOUNT ASM

$242.99

$

Usually ships in 3-6 days

0

17

Toro 100-1712

CABLE-POSITIVE

$40.99

$

Usually ships in 3-6 days

0

18

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

99

Toro 32144-18

SCREW-HWH

Note: Not illustrated

$2.49

$

Usually ships in 3-6 days

0
