22307 (TX 425) - Toro Dingo Wide Track Compact Utility Loader (SN: 220000001 - 220000400) (2002) CRANKCASE ASSEMBLY KOHLER ENGINE CH25S PS-68688 Parts Diagram

Dingo Wide Track Compact Utility Loader

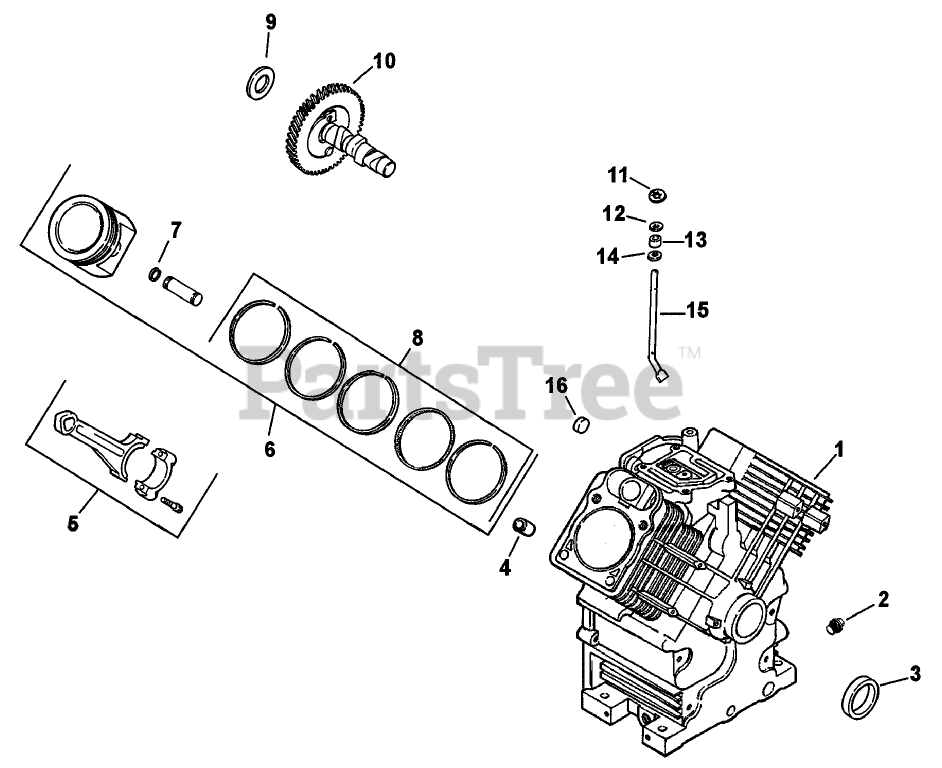

CRANKCASE ASSEMBLY KOHLER ENGINE CH25S PS-68688 Parts Diagram

  • Title

1

Kohler 24 561 138-S

Kit-Crankcase (Includes 2, 4, 16, & 24 113 56-S)

$793.99

$

Usually ships in 2-5 days

0

2

Kohler 25 139 57-S

PLUG-PIPE, SQ HD (3/8)

$2.49

$

In Stock, Qty 14

0

3

Kohler 24 032 01-S

SEAL-OIL
(Superseded to 24 032 19-S)

$7.49

$

In Stock, Qty 20+

0

4

Kohler 24 380 13-S

Pin-Locating
(Superseded to 24 380 16-S)

$4.49

$

In Stock, Qty 8

0

5

Kohler 24 067 13-S

Rod-Connecting (Standard)
(Superseded to 25 067 04-S)

$59.99

$

In Stock, Qty 19

0

Kohler 24 067 14-S

Rod-Connecting (.25)
(Superseded to 25 067 05-S)

$59.99

$

In Stock, only 1 left!

0

6

Kohler 24 874 06-S

Piston w/Ring Set (Std.)(Includes 7, 8)
(Superseded to 25 874 13-S)

$269.99

$

In Stock, only 3 left!

0

7

Kohler 24 018 01-S

RETAINER-PIN, PISTON

$2.49

$

In Stock, only 2 left!

0

8

Kohler 24 108 04-S

Set-Ring (STD and .08)
(Superseded to 24 108 14-S)

$

$

Not available

9

Kohler 12 422 09-S

SHIM-CAMSHAFT (RED .032)

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 422 13-S

SHIM-CAMSHAFT (BLACK .04)

$2.99

$

Usually ships in 2-5 days

0

Kohler 12 422 07-S

SHIM-CAMSHAFT (WHITE .028)

$4.49

$

Usually ships in 2-5 days

0

Kohler 12 422 08-S

SHIM-CAMSHAFT (BLUE .03)

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 422 10-S

SHIM-CAMSHAFT (YELLOW .034)

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 11-S

SHIM-CAMSHAFT (GREEN .036)

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 12-S

SHIM-CAMSHAFT (GRAY .038)

$2.99

$

In Stock, only 1 left!

0

10

Kohler 24 012 10-S

Camshaft Kit
(Superseded to 24 012 23-S)

$138.99

$

In Stock, only 1 left!

0

11

Kohler 24 018 09-S

RETAINER-RING

$2.49

$

In Stock, Qty 9

0

12

Kohler M-931010-S

WASHER-FLAT (9MM)

$2.49

$

In Stock, Qty 10

0

13

Kohler 28 032 09-S

SEAL-CROSS SHAFT, GOVERNOR

$3.49

$

In Stock, Qty 20+

0

14

Kohler 24 468 15-S

WASHER-FLAT (11/32)

$2.49

$

In Stock, Qty 10

0

15

Kohler 24 144 33-S

Shaft-Cross, Governor
(Superseded to 24 144 39-S)

$41.99

$

Usually ships in 2-5 days

0

16

Kohler 52 139 09-S

PLUG-CUP

$4.99

$

In Stock, Qty 9

0

Kohler 24 113 56-S

Decal

$

$

Not available
