22307 (TX 425) - Toro Dingo Wide Track Compact Utility Loader (SN: 220000001 - 220000400) (2002) TRACK AND TRACTION ASSEMBLY Parts Diagram

Dingo Wide Track Compact Utility Loader

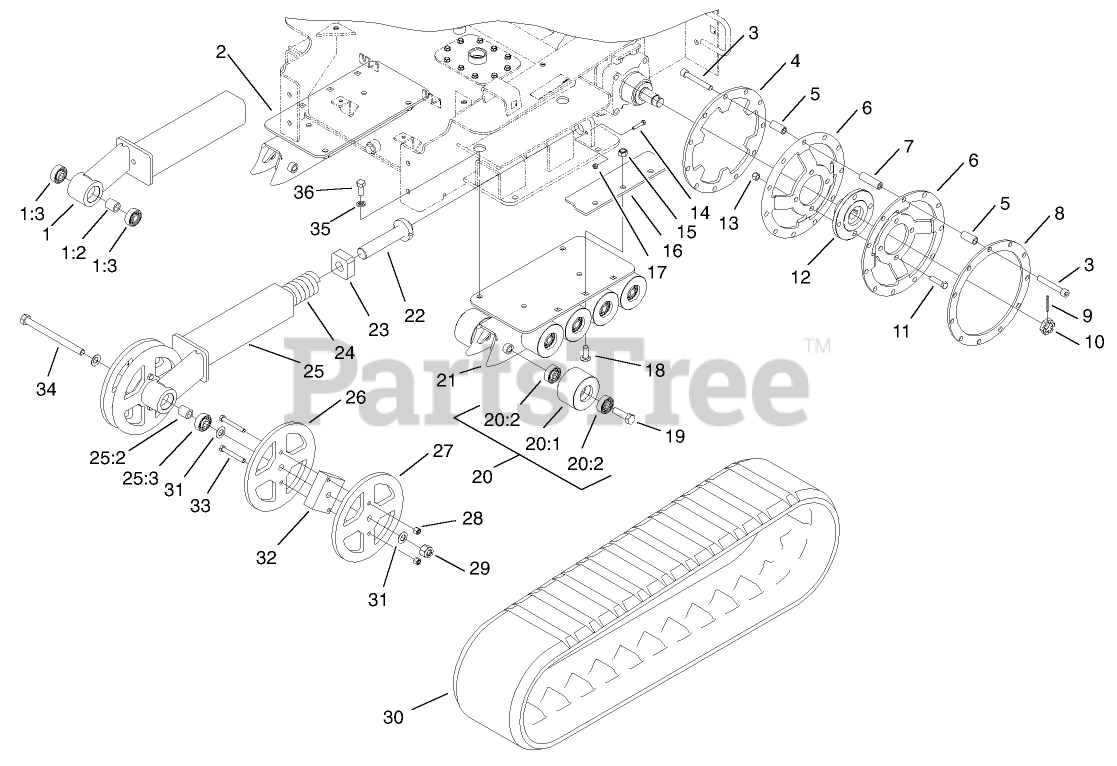

TRACK AND TRACTION ASSEMBLY Parts Diagram

  • Title

1

Toro 105-0234

XREF 105-5841
(Superseded to 106-7611)

$1358.99

$

Usually ships in 3-6 days

0

1:2

Toro 105-0209

SPACER-BEARING

$

$

Not available

1:3

Toro 93-4237

BEARING
(Superseded to 120-5378)

$16.99

$

In Stock, Qty 20+

0

2

Toro 105-0218-03

RH TRACK GUIDE ASM

$

$

Not available

3

Toro 3274-100

SCREW-HSH

$10.99

$

Usually ships in 3-6 days

0

4

Toro 100-8934-03

RIM-BRAKE, DRIVE WHEEL

$

$

Not available

5

Toro 100-8936

SPACER-WHEEL, DRIVE

$

$

Not available

6

Toro 100-8935-03

DRIVE WHEEL ASM

$705.99

$

Usually ships in 3-6 days

0

7

Toro 100-1286

SPACER-WHEEL, DRIVE

$37.99

$

In Stock, Qty 8

0

8

Toro 99-6170-03

RING-WHEEL, DRIVE

$125.99

$

Usually ships in 3-6 days

0

9

Toro 99-3171

PIN-COTTER

$1.99

$

In Stock, only 1 left!

0

10

Toro 99-3139

NUT

$16.99

$

In Stock, only 2 left!

0

11

Toro 325-7

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

12

Toro 104-5719-03

HUB-WHEEL, DRIVE

$

$

Not available

13

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 321-13

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

15

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 105-0219-03

CLAMP-GUIDE, TRACK

$

$

Not available

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Toro 3233-26

SCREW-CARR, SHORT NECK

$2.99

$

Usually ships in 3-6 days

0

19

Toro 327-6

SCREW-HH

$13.99

$

In Stock, only 1 left!

0

20

Toro 105-0248

ROAD WHEEL ASM

$129.99

$

Usually ships in 3-6 days

0

20:1

Toro 100-8929

Wheel-Road
(Superseded to 105-0248)

$129.99

$

Usually ships in 3-6 days

0

20:2

Toro 93-4237

BEARING
(Superseded to 120-5378)

$16.99

$

In Stock, Qty 20+

0

21

Toro 105-0220-03

LH TRACK GUIDE ASM

$

$

Not available

22

Toro 98-9846

BOLT-TENSIONER

$430.99

$

Usually ships in 3-6 days

0

23

Toro 95-3626

BLOCK-TENSIONER

$276.99

$

Usually ships in 3-6 days

0

24

Toro 95-3624

SPRING-COMPRESSION

$181.99

$

In Stock, only 1 left!

0

25

Toro 105-0235

XREF 105-5842
(Superseded to 106-7612)

$

$

Not available

25:2

Toro 105-0209

SPACER-BEARING

$

$

Not available

25:3

Toro 93-4237

BEARING
(Superseded to 120-5378)

$16.99

$

In Stock, Qty 20+

0

26

Toro 105-0211-03

WHEEL-TENSIONER, INNER

$

$

Not available

27

Toro 105-0242-03

WHEEL-TENSIONER, OUTER

$

$

Not available

28

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

29

Toro 105-0369

NUT-CROWNLOCK

$7.99

$

Usually ships in 3-6 days

0

30

Toro 100-8931

TRACK
(Superseded to 136-5848)

$1254.99

$

Usually ships in 3-6 days

0

31

Toro 3290-473

WASHER-BELLEVILLE

$19.99

$

Usually ships in 3-6 days

0

32

Toro 105-0210-03

BLOCK-SPACER

$

$

Not available

33

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 18

0

34

Toro 105-0350

SCREW-HEAD, SOCKET

$50.99

$

Usually ships in 3-6 days

0

35

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

36

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0
