22317 (220) - Toro Dingo Compact Utility Loader (SN: 270000001 - 270999999) (2007) FRAME AND LOADER ARM ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

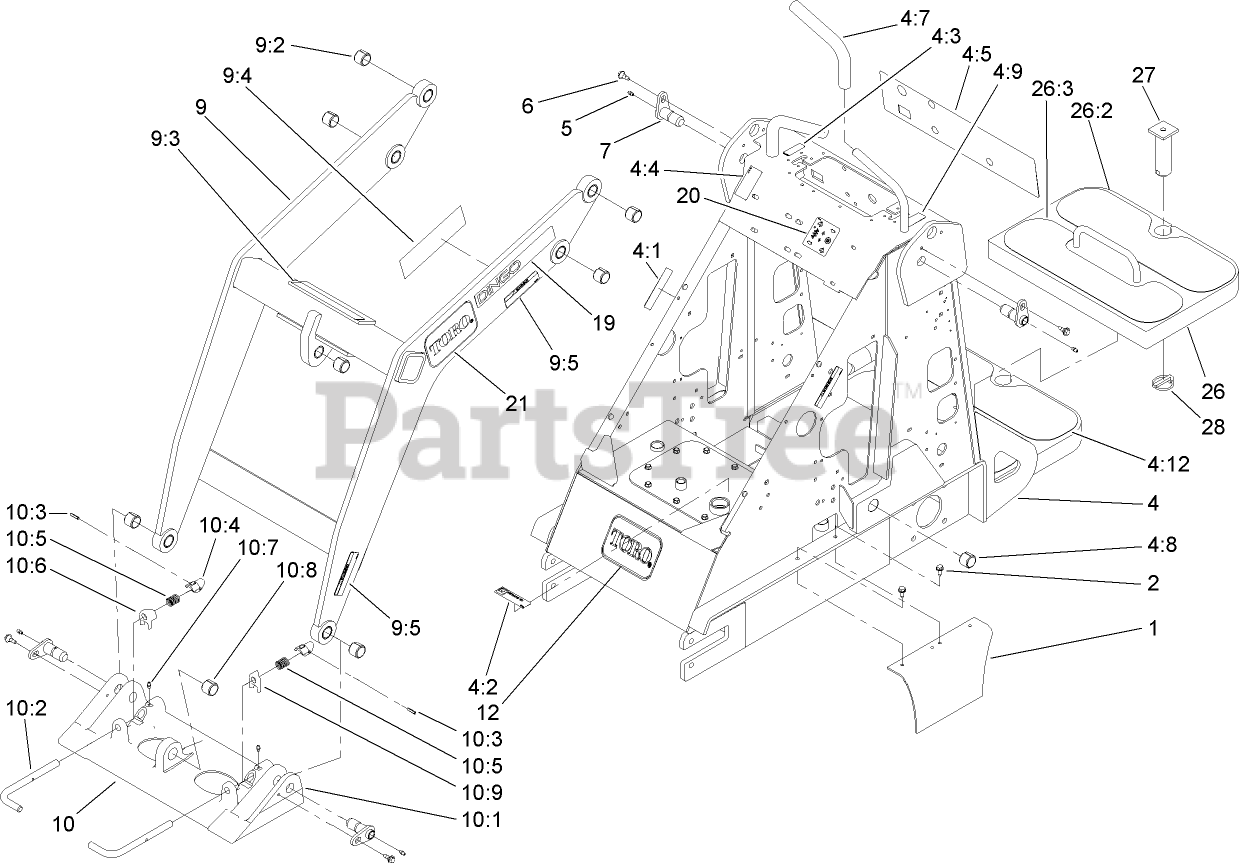

FRAME AND LOADER ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 98-4669-01

COVER-CHAIN

$86.99

$

Usually ships in 3-6 days

0

2

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 108-9700

FRAME ASM

$8290.99

$

Usually ships in 3-6 days

0

4:1

Toro 100-6141

DECAL-PINCH

$39.99

$

Usually ships in 3-6 days

0

4:2

Toro 105-8432

DECAL-OIL, HYD

$6.99

$

Usually ships in 3-6 days

0

4:3

Toro 94-2551

DECAL-CHOKE

$38.99

$

Usually ships in 3-6 days

0

4:4

Toro 98-4677

DECAL-POWER, AUXILIARY

$7.49

$

Usually ships in 3-6 days

0

4:5

Toro 108-9732

DECAL-PANEL, CONTROL

$71.99

$

Usually ships in 3-6 days

0

4:7

Toro 98-4845

GRIP-CUSHION

$15.99

$

Usually ships in 3-6 days

0

4:8

Toro 98-4871

BUSHING-TENSION

$22.99

$

In Stock, only 2 left!

0

4:9

Toro 98-8219

DECAL-THROTTLE

$17.99

$

In Stock, only 1 left!

0

4:12

Toro 98-9947

TREAD-FOOT

$34.99

$

Usually ships in 3-6 days

0

5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 19

0

6

Toro 99-5105

BOLT-SHOULDER

$6.49

$

In Stock, only 3 left!

0

7

Toro 112-2609

PIN-PIVOT

$105.99

$

In Stock, only 2 left!

0

9

Toro 106-8155

LOADER ASM

$2282.99

$

Usually ships in 3-6 days

0

9:2

Toro 98-4871

BUSHING-TENSION

$22.99

$

In Stock, only 2 left!

0

9:3

Toro 98-4682

DECAL-CAUTION

$22.99

$

Usually ships in 3-6 days

0

9:4

Toro 98-9051

DECAL-DANGER

$33.99

$

In Stock, only 1 left!

0

9:5

Toro 100-6141

DECAL-PINCH

$39.99

$

Usually ships in 3-6 days

0

10

Toro 105-8364

QUICK ATTACH ASM
(Superseded to 132-8418)

$1402.99

$

Usually ships in 3-6 days

0

10:1

Toro 105-0245-03

MOUNT-ATTACH, QUICK
(Superseded to 130-7708-03)

$1232.99

$

Usually ships in 3-6 days

0

10:2

Toro 105-8367

PIN-LOCKING
(Superseded to 132-8419)

$32.99

$

In Stock, only 2 left!

0

10:3

Toro 3285-1

PIN-GROOVED

$2.49

$

In Stock, only 2 left!

0

10:4

Toro 105-0246

CAM

$70.99

$

In Stock, only 2 left!

0

10:5

Toro 98-4694

SPRING-COMPRESSION

$11.99

$

In Stock, only 2 left!

0

10:6

Toro 104-5909

STOP-RH

$56.99

$

In Stock, only 1 left!

0

10:7

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 19

0

10:8

Toro 98-4871

BUSHING-TENSION

$22.99

$

In Stock, only 2 left!

0

10:9

Toro 104-5903

STOP-LH

$56.99

$

In Stock, only 1 left!

0

12

Toro 62-5550

DECAL

$10.99

$

In Stock, only 1 left!

0

19

Toro 105-8426

DECAL

$21.99

$

Usually ships in 3-6 days

0

20

Toro 108-9716

DECAL-SELECTOR, SPEED

$43.99

$

Usually ships in 3-6 days

0

21

Toro 93-7340

DECAL

$50.99

$

Usually ships in 3-6 days

0

26

Toro 112-4947

COUNTERWEIGHT ASM

$1886.99

$

Usually ships in 3-6 days

0

26:2

Toro 98-9947

TREAD-FOOT

$34.99

$

Usually ships in 3-6 days

0

26:3

Toro 112-4948

TREAD

$35.99

$

Usually ships in 3-6 days

0

27

Toro 99-8638

PIN

$307.99

$

Usually ships in 3-6 days

0

28

Toro 99-9978

PIN-LYNCH

$11.99

$

Usually ships in 3-6 days

0
