22330 (TX 413) - Toro Dingo Compact Utility Loader (SN: 260000001 - 260999999) (2006) CAMSHAFT ASSEMBLY HONDA GX390K1QNE2 Parts Diagram

Dingo Compact Utility Loader

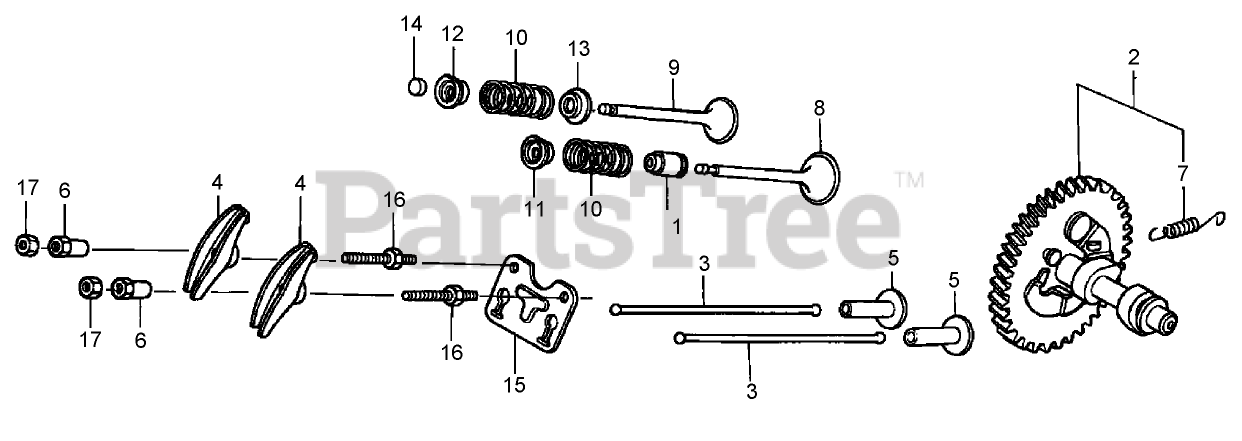

CAMSHAFT ASSEMBLY HONDA GX390K1QNE2 Parts Diagram

  • Title

1

Honda 12209-ZE8-003

SEAL-STEM, VALVE

Note: Obtain parts from www.honda-engines.com

$7.99

$

In Stock, Qty 18

0

2

Honda 14100-ZF6-W01

CAMSHAFT ASM

Note: Obtain parts from www.honda-engines.com

$194.99

$

Usually ships in 3-6 days

0

3

Honda 14410-ZE3-013

ROD, PUSH

Note: Obtain parts from www.honda-engines.com

$7.49

$

Usually ships in 3-6 days

0

4

Honda 14431-ZE2-010

ARM-ROCKER, VALVE

Note: Obtain parts from www.honda-engines.com

$8.49

$

In Stock, Qty 20+

0

5

Honda 14441-ZE2-000

LIFTER-VALVE

Note: Obtain parts from www.honda-engines.com

$15.99

$

Usually ships in 3-6 days

0

6

Honda 14451-ZE1-013

PIVOT-ARM, ROCKER
(Superseded to 14451-Z4M-000)

Note: Obtain parts from www.honda-engines.com

$5.99

$

In Stock, Qty 7

0

7

Honda 14568-ZE1-000

SPRING-RETURN, WEIGHT

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 1 left!

0

8

Honda 14711-ZE3-000

VALVE-INTAKE

Note: Obtain parts from www.honda-engines.com

$20.99

$

Usually ships in 3-6 days

0

9

Honda 14721-ZE3-000

VALVE-EXHAUST

Note: Obtain parts from www.honda-engines.com

$32.99

$

In Stock, only 2 left!

0

10

Honda 14751-ZE2-003

SPRING-VALVE

Note: Obtain parts from www.honda-engines.com

$4.99

$

Usually ships in 3-6 days

0

11

Honda 14771-ZE2-000

RETAINER-VALVE, INTAKE
(Superseded to 14771-Z8S-000)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, only 2 left!

0

12

Honda 14773-ZE2-000

RETAINER-VALVE, EXHAUST

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 5

0

13

Honda 14775-ZE2-010

SEAT-SPRING, VALVE

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 4 left!

0

14

Honda 14781-ZE2-000

ROTATOR-VALVE

Note: Obtain parts from www.honda-engines.com

$5.49

$

In Stock, only 2 left!

0

15

Honda 14791-ZE2-010

PLATE-PUSH ROD

Note: Obtain parts from www.honda-engines.com

$3.99

$

In Stock, only 3 left!

0

16

Honda 90012-ZE0-010

BOLT-PIVOT (8 mm)

Note: Obtain parts from www.honda-engines.com

$7.99

$

In Stock, Qty 6

0

17

Honda 90206-ZE1-000

NUT-ADJUSTING, PIVOT

Note: Obtain parts from www.honda-engines.com

$3.99

$

In Stock, Qty 9

0
