22331 (TX 420) - Toro Dingo Compact Utility Loader (SN: 250000001 - 250999999) (2005) AIR INTAKE AND FILTRATION ASSEMBLY KOHLER CH20S 64725 Parts Diagram

Dingo Compact Utility Loader

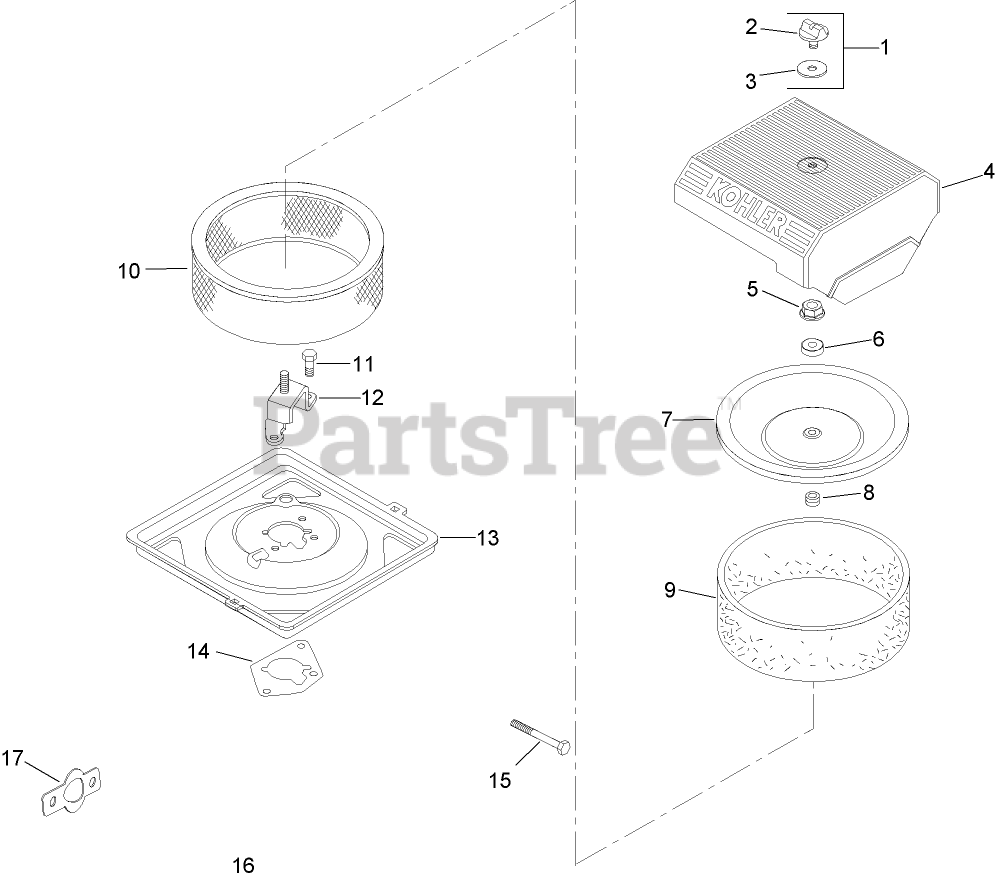

AIR INTAKE AND FILTRATION ASSEMBLY KOHLER CH20S 64725 Parts Diagram

  • Title

1

Kohler 54 755 01-S

Knob Kit (Includes 2, 3)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

In Stock, Qty 18

0

2

Kohler 20 341 01-S

Knob-Cover
(Superseded to 25 341 04-S)

Note: Obtain parts from www.kohlerplus.com

$7.99

$

In Stock, Qty 13

0

3

Kohler 24 153 20-S

O-RING

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 13

0

4

Kohler 24 096 67-S

Cover-Cleaner, Air

Note: Obtain parts from www.kohlerplus.com

$47.99

$

In Stock, Qty 5

0

5

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 17

0

6

Kohler 28 112 01-S

Spacer

Note: Obtain parts from www.kohlerplus.com

$12.99

$

Usually ships in 2-5 days

0

7

Kohler 24 096 01-S

COVER-AIR CLEANER, INNER

Note: Obtain parts from www.kohlerplus.com

$16.99

$

In Stock, Qty 10

0

8

Kohler 230046-S

Seal

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 3 left!

0

9

Kohler 24 083 05-S

PRE-CLEANER

Note: Obtain parts from www.kohlerplus.com

$6.99

$

In Stock, Qty 11

0

10

Kohler 24 083 03-S

ELEMENT-FILTER, AIR

Note: Obtain parts from www.kohlerplus.com

$23.99

$

In Stock, Qty 12

0

11

Kohler 24 086 53-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 10

0

12

Kohler 24 126 141-S

Bracket-Base, Air Cleaner
(Superseded to 24 126 212-S)

Note: Obtain parts from www.kohlerplus.com

$47.99

$

Usually ships in 2-5 days

0

13

Kohler 24 094 37-S

BASE-CLEANER, AIR
(Superseded to 24 094 88-S)

Note: Obtain parts from www.kohlerplus.com

$28.99

$

Usually ships in 2-5 days

0

14

Kohler 24 041 06-S

GASKET-BASE, AIR CLEANER

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 7

0

15

Kohler 25 086 84-S

Screw-HF (M6x1.0x55)
(Superseded to 25 086 766-S)

Note: Obtain parts from www.kohlerplus.com

$1.99

$

In Stock, Qty 20+

0

16

Kohler 24 164 14-S

Manifold-Intake

Note: Obtain parts from www.kohlerplus.com

$229.99

$

Usually ships in 2-5 days

0

17

Kohler 24 041 01-S

Gasket-Manifold, Intake
(Superseded to 24 041 79-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 10

0
