22337 CP (320-D) - Toro Dingo Compact Utility Loader (SN: 313000001 - 313999999) (2013) STARTER ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

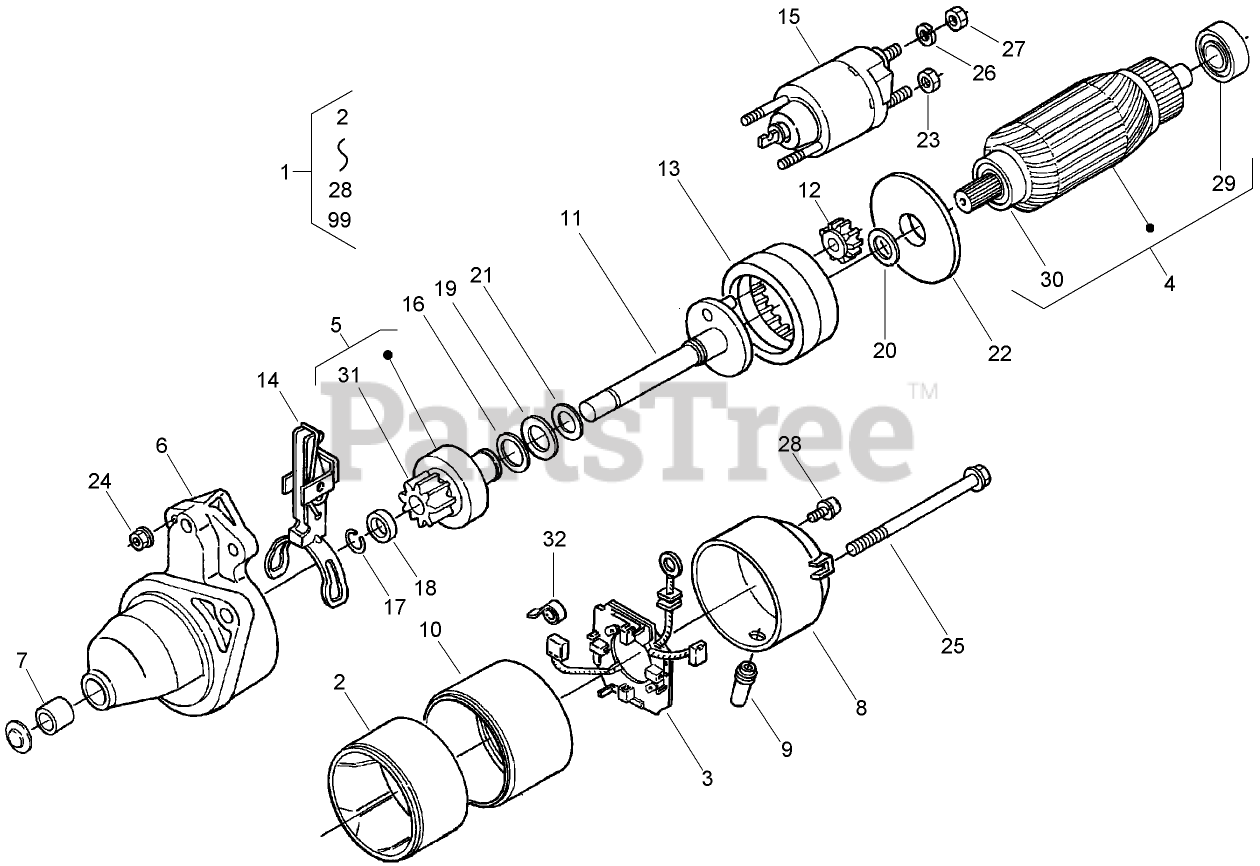

STARTER ASSEMBLY Parts Diagram

  • Title

1

Toro 100-2179

STARTER ASM

$1408.99

$

Usually ships in 3-6 days

0

2

Toro 100-2181

STARTER YOKE ASM

$123.99

$

Usually ships in 3-6 days

0

3

Toro 100-2222

HOLDER ASM

$35.99

$

Usually ships in 3-6 days

0

4

Toro 100-2182

ARMATURE ASM

$246.99

$

Usually ships in 3-6 days

0

5

Toro 100-2185

STARTER CLUTCH ASM

$178.99

$

Usually ships in 3-6 days

0

6

Toro 100-2180

STARTER HOUSING ASM

$257.99

$

Usually ships in 3-6 days

0

7

Toro 100-2183

BEARING

$3.49

$

Usually ships in 3-6 days

0

8

Toro 100-2186

FRAME ASM

$98.99

$

Usually ships in 3-6 days

0

9

Toro 100-2213

COVER

$6.49

$

Usually ships in 3-6 days

0

10

Toro 100-2223

BEARING ASM

$23.99

$

Usually ships in 3-6 days

0

11

Toro 100-2187

STARTER SHAFT ASM

$49.99

$

Usually ships in 3-6 days

0

12

Toro 100-2220

GEAR

$29.99

$

Usually ships in 3-6 days

0

13

Toro 100-2221

GEAR

$98.99

$

Usually ships in 3-6 days

0

14

Toro 100-2218

LEVER

$9.49

$

Usually ships in 3-6 days

0

15

Toro 100-2211

MAGNETIC SWITCH ASM

$364.99

$

Usually ships in 3-6 days

0

16

Toro 100-2219

RING-SNAP

$18.99

$

Usually ships in 3-6 days

0

17

Toro 100-2212

RING-SNAP

$11.99

$

Usually ships in 3-6 days

0

18

Toro 100-2216

COLLAR

$28.99

$

Usually ships in 3-6 days

0

19

Toro 100-2224

WASHER-PLAIN

$11.99

$

Usually ships in 3-6 days

0

20

Toro 100-2225

WASHER-PLAIN

$4.99

$

Usually ships in 3-6 days

0

21

Toro 100-2226

WASHER-PLAIN

$4.99

$

Usually ships in 3-6 days

0

22

Toro 100-2227

PLATE

$17.99

$

Usually ships in 3-6 days

0

23

Toro 100-2243

NUT-HEX
(Superseded to 99-8371)

$5.99

$

Usually ships in 3-6 days

0

24

Toro 100-1813

NUT

$3.99

$

Usually ships in 3-6 days

0

25

Toro 100-2210

BOLT-THROUGH

$4.49

$

Usually ships in 3-6 days

0

26

Toro 100-2215

WASHER-SPRING

$2.99

$

Usually ships in 3-6 days

0

27

Toro 100-2171

NUT-HEX

$5.49

$

Usually ships in 3-6 days

0

28

Toro 100-2188

SCREW

$4.99

$

Usually ships in 3-6 days

0

29

Toro 98-9412

BEARING-BALL

$19.99

$

Usually ships in 3-6 days

0

30

Toro 98-9411

BEARING-BALL

$19.99

$

Usually ships in 3-6 days

0

31

Toro 112-2833

GEAR-PINION

$197.99

$

Usually ships in 3-6 days

0

32

Toro 98-7750

SPRING-BRUSH

$3.99

$

Usually ships in 3-6 days

0

99

Toro 99-1434

WIRE-LEAD

$82.99

$

Usually ships in 3-6 days

0
