22525 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

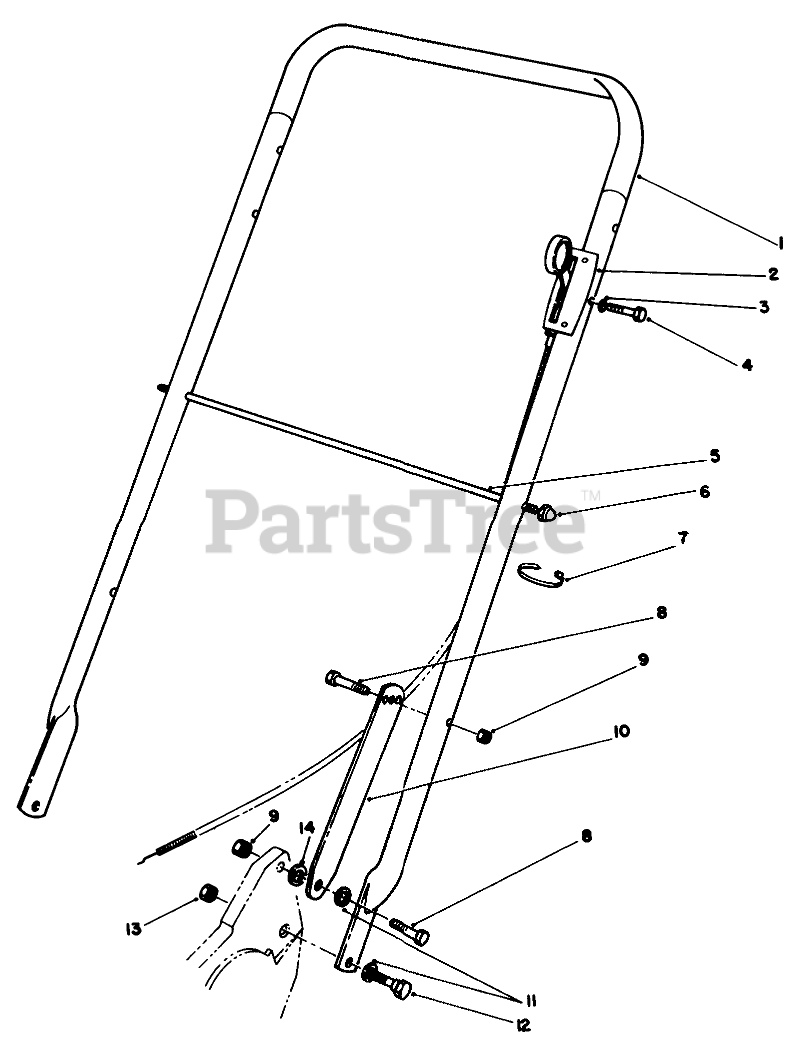

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 65-5820

Handle
(Superseded to 98-2000-03)

$120.99

$

Usually ships in 3-6 days

0

2

Toro 65-4996

Throttle Control Bend Type #2 Sheath Lg. 52.0 inch Wire Lg. 2.8 inch

$

$

Not available

3

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 15

0

4

Toro 321-13

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

5

Toro 48-2810

ROD-SUPPORT, BAG

$27.99

$

Usually ships in 3-6 days

0

6

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

7

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

8

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 65-5830

HANDLE LATCH
(Superseded to 65-5830-03)

$

$

Not available

11

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 10

0

12

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

13

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

14

Toro 26-4840

SPACER-PIN, MOUNTING

$6.49

$

Usually ships in 3-6 days

0
