22606 THD - Toro Log Splitter (SN: 310000001 - 310999999) (2010) RESERVOIR ASSEMBLY Parts Diagram

Log Splitter

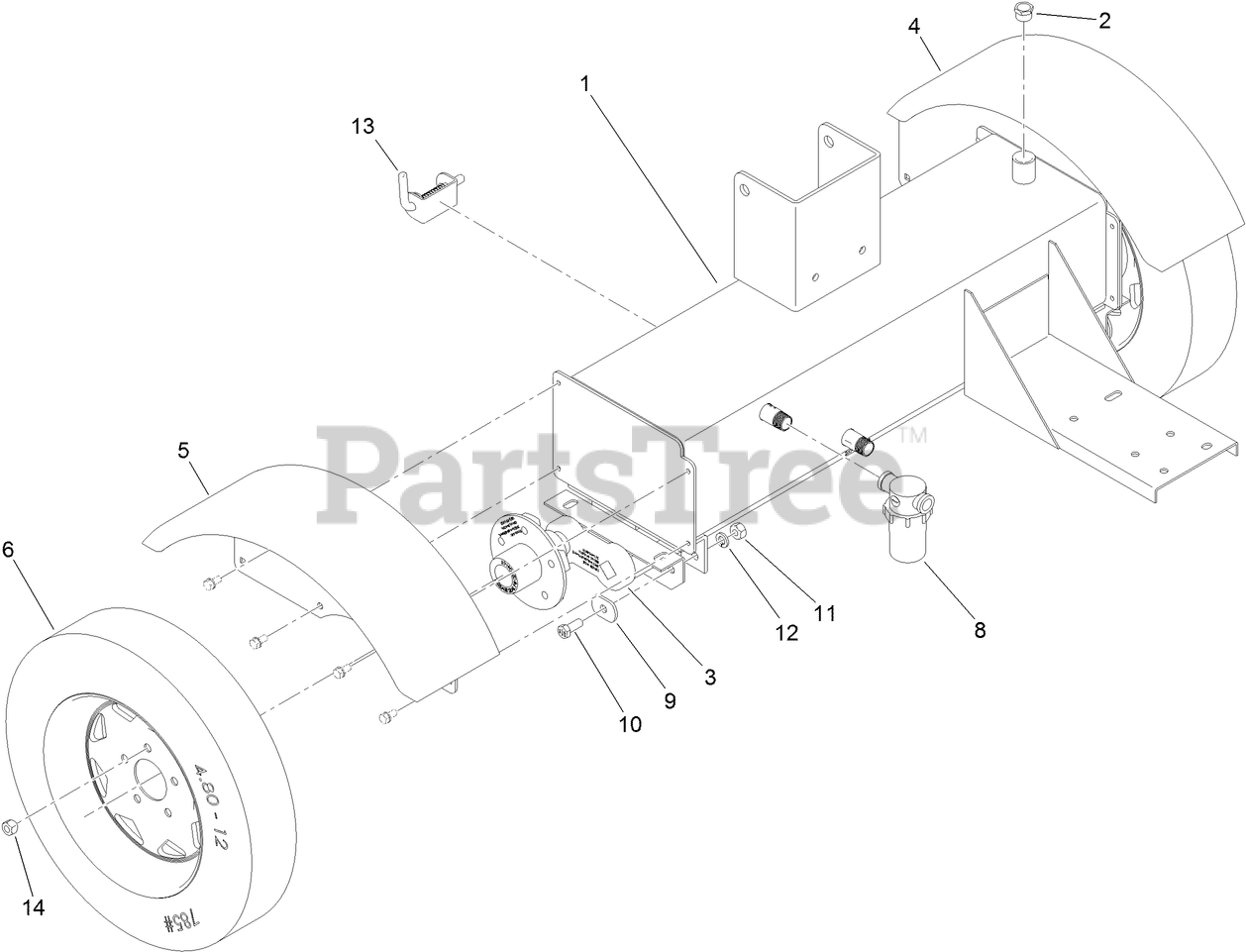

RESERVOIR ASSEMBLY Parts Diagram

  • Title

1

Toro W000034

RESERVOIR ASM

$

$

Not available

2

Toro 120-1412

CAP-BREATHER

$35.99

$

Usually ships in 3-6 days

0

3

Toro PP000043

AXLE-TORFLEX

$3197.99

$

Usually ships in 3-6 days

0

4

Toro 120-1844

FENDER-LH
(Superseded to 130-7584)

$

$

Not available

5

Toro 120-1845

FENDER-RH
(Superseded to 130-7585)

$

$

Not available

6

Toro PP000080

TIRE
(Superseded to 120-1206)

$144.99

$

Usually ships in 3-6 days

0

8

Toro 120-1414

FILTER-HYD

$141.99

$

Usually ships in 3-6 days

0

9

Toro 107-7543

WASHER-HARDENED

$4.99

$

Usually ships in 3-6 days

0

10

Toro 3235-19

Capscrew

$

$

Currently unavailable

11

Toro 108-3745

NUT-HHF, WHIZ

$1.99

$

Usually ships in 3-6 days

0

12

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

13

Toro 120-1427

PIN-LATCHING

$44.99

$

Usually ships in 3-6 days

0

14

Toro 242-50

NUT-LUG

$1.99

$

In Stock, Qty 20+

0
