22700 B - Toro 21" Walk-Behind Mower (SN: 049000001 - 049999999) (1994) HOUSING ASSEMBLY Parts Diagram

21" Walk-Behind Mower

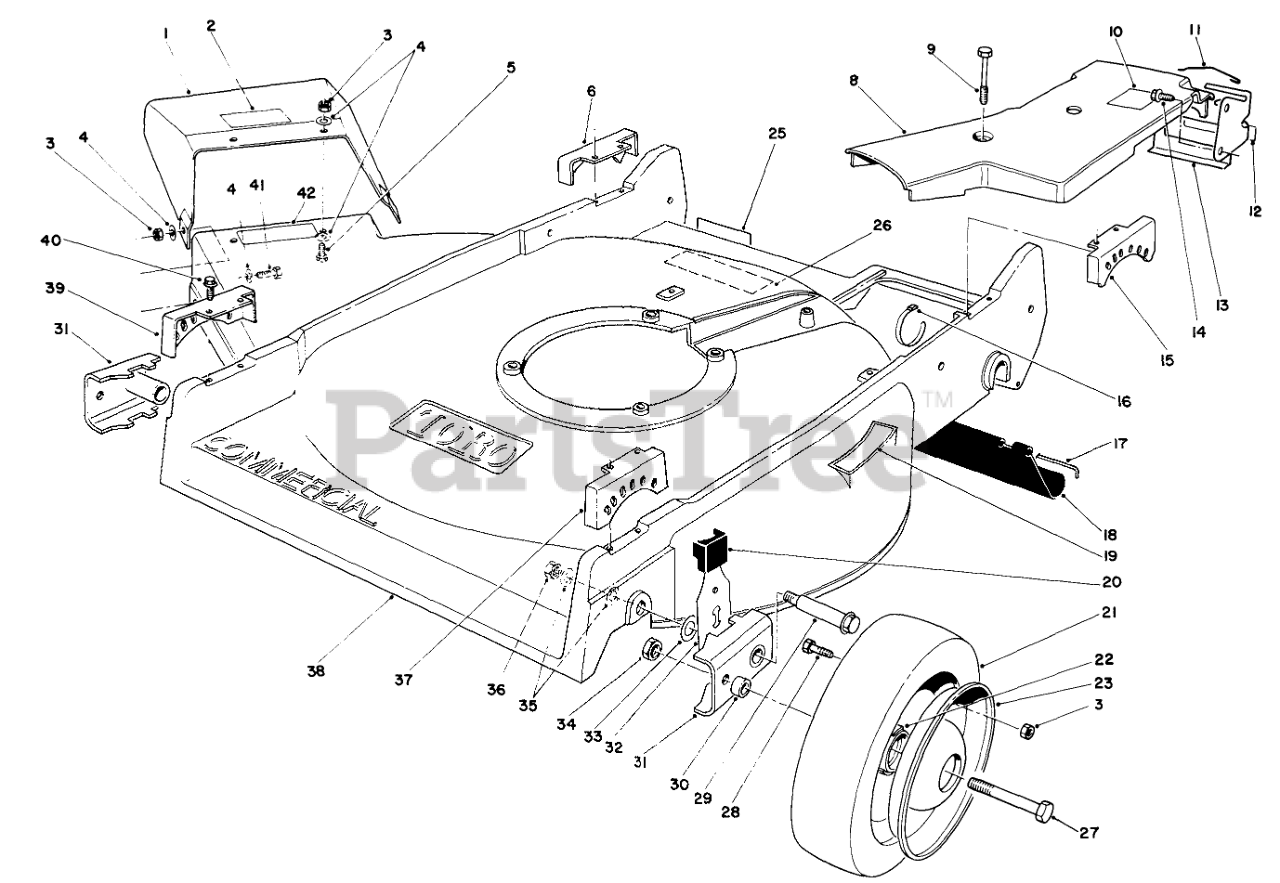

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 66-7040

Assembly-Deflector (Incl. Ref. #2)

$

$

Not available

2

Toro 92-1780

DECAL - DANGER

$

$

Not available

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 49-8750

QUADRANT-REAR, RH

$26.99

$

In Stock, only 4 left!

0

8

Toro 74-1770

COVER-BELT

$43.99

$

In Stock, Qty 5

0

9

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, Qty 6

0

10

Toro 62-7580

Label-Grease
(Superseded to 93-6664)

$7.49

$

Usually ships in 3-6 days

0

11

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 3 left!

0

12

Toro 74-1970

DECAL-POSITION, GEAR

$6.49

$

In Stock, Qty 6

0

13

Toro 74-1741

BRACKET-ADJUSTMENT, TRACTION

$23.99

$

Usually ships in 3-6 days

0

14

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

15

Toro 49-8740

QUADRANT-REAR, LH

$26.99

$

In Stock, only 4 left!

0

16

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

17

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 16

0

18

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$27.99

$

In Stock, Qty 16

0

19

Toro 62-3950

DECAL - STEP PAD INT'L

$

$

Not available

20

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 13

0

21

Toro 53-7740

TIRE

$37.99

$

In Stock, Qty 9

0

22

Toro 92-8905

Hub Ass-y
(Superseded to 99-5872)

$

$

Not available

23

Toro 53-7780

Wheel-Half
(Superseded to 121-1365-06)

$18.99

$

In Stock, only 3 left!

0

25

Toro 66-0680

DECAL FRENCH REGUL.

$

$

Not available

26

Toro 92-9077

DECAL - DIN/DANGER

$

$

Not available

27

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

28

Toro 321-2

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

29

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 12

0

30

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, Qty 13

0

31

Toro 61-8300

ARM-PIVOT, FRONT

$28.99

$

In Stock, Qty 7

0

32

Toro 66-7560

FRONT SPRING ARM ASM

$13.99

$

In Stock, Qty 10

0

33

Toro 257-3

WASHER-THRUST

$15.99

$

In Stock, Qty 5

0

34

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

35

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

36

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 17

0

37

Toro 49-8760

QUADRANT-FRONT, LH

$26.99

$

In Stock, Qty 10

0

38

Toro 13-0409

Housing-Commercial (Incl. Ref. #19, 26 & 42)
(Superseded to 16-9119)

$2307.99

$

Usually ships in 3-6 days

0

39

Toro 49-8770

QUADRANT-FRONT, RH

$26.99

$

In Stock, only 2 left!

0

40

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

41

Toro 321-7

SCREW-HH

$5.49

$

In Stock, only 3 left!

0

42

Toro 66-7360

DECAL - WARNING/INT'L

$

$

Not available

Toro 92-6532

Tire & Wheel Assembly (Incl. Ref. #3, 21-23 & 28)
(Superseded to 121-1380)

Note: Not illustrated

$100.99

$

In Stock, only 4 left!

0
