22911 - Toro Vibratory Plow for Dingo Compact Utility Loader (SN: 315000001 - 315999999) (2015) PLOW HEAD ASSEMBLY Parts Diagram

Vibratory Plow for Dingo Compact Utility Loader

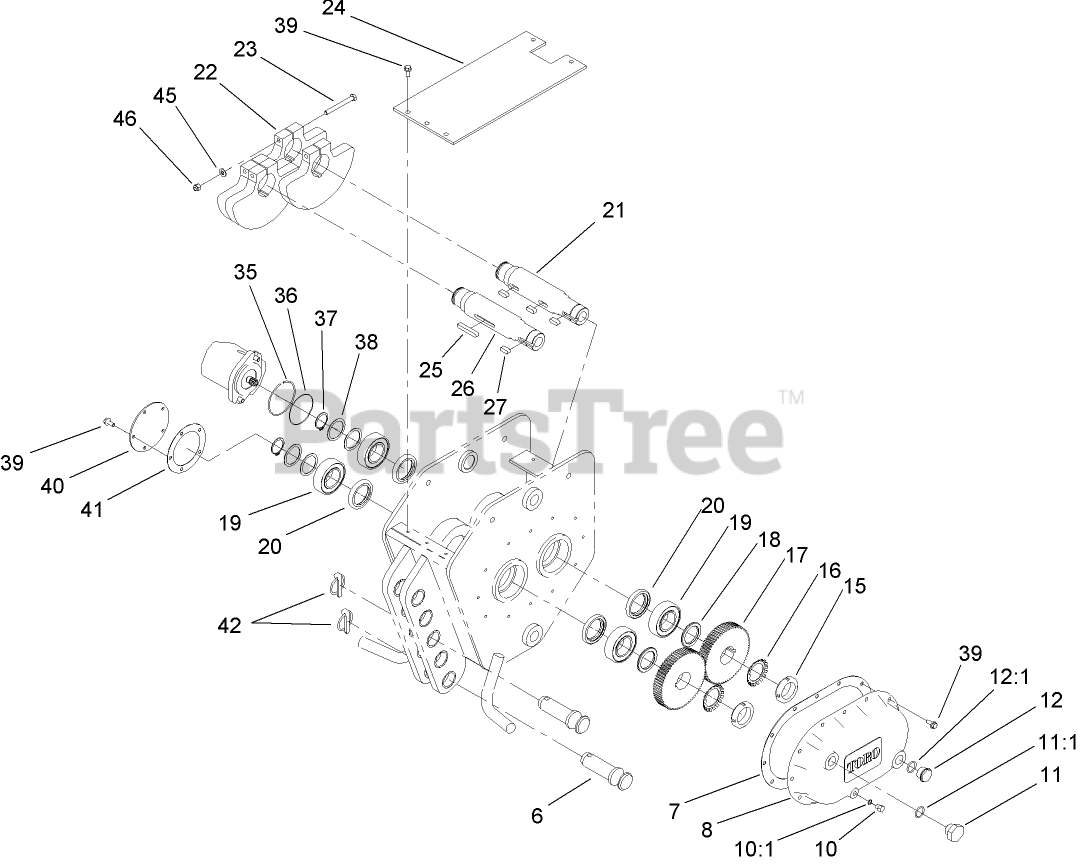

PLOW HEAD ASSEMBLY Parts Diagram

  • Title

6

Toro 104-5992

PIN-BLADE

$301.99

$

Usually ships in 3-6 days

0

7

Toro 99-2744

GASKET

$206.99

$

In Stock, only 1 left!

0

8

Toro 99-2723-03

COVER

$547.99

$

In Stock, only 1 left!

0

10

Toro 353-512

PLUG

$23.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-78

O-RING

$3.99

$

Usually ships in 3-6 days

0

11

Toro 354-74

PLUG-HH

$27.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-81

O-RING

$2.99

$

In Stock, Qty 5

0

12

Toro 69-1170

GLASS-SIGHT

$43.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-81

O-RING

$2.99

$

In Stock, Qty 5

0

15

Toro 99-2706

NUT

$101.99

$

Usually ships in 3-6 days

0

16

Toro 99-2708

RETAINER-NUT
(Superseded to 117-3404)

$31.99

$

Usually ships in 3-6 days

0

17

Toro 99-2676

GEAR

$1099.99

$

Usually ships in 3-6 days

0

18

Toro 99-2677

SPACER

$77.99

$

Usually ships in 3-6 days

0

19

Toro 99-2670

BEARING-ROLLER, SPHERICAL

$560.99

$

Usually ships in 3-6 days

0

20

Toro 99-2714

SEAL-OIL

$56.99

$

Usually ships in 3-6 days

0

21

Toro 99-2672

SHAFT-SPLINED

$749.99

$

Usually ships in 3-6 days

0

22

Toro 99-2673-03

WEIGHT-COUNTER

$300.99

$

Usually ships in 3-6 days

0

23

Toro 323-15

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

24

Toro 99-2699-03

PLATE-TOP

$123.99

$

Usually ships in 3-6 days

0

25

Toro 99-2675

KEY-LONG

$14.99

$

Usually ships in 3-6 days

0

26

Toro 99-2671

SHAFT

$590.99

$

Usually ships in 3-6 days

0

27

Toro 99-2674

KEY-SHORT

$38.99

$

Usually ships in 3-6 days

0

35

Toro 99-2746

RING-PILOT

$30.99

$

Usually ships in 3-6 days

0

36

Toro 237-167

O-RING

$8.99

$

Usually ships in 3-6 days

0

37

Toro 32151-95

RING-RETAINING

$1.99

$

Usually ships in 3-6 days

0

38

Toro 99-2654

WASHER-THRUST

$45.99

$

Usually ships in 3-6 days

0

39

Toro 100-1668

SCREW-FLANGE

$6.49

$

Usually ships in 3-6 days

0

40

Toro 99-2724-03

PLATE-COVER

$69.99

$

Usually ships in 3-6 days

0

41

Toro 99-2745

GASKET

$11.99

$

Usually ships in 3-6 days

0

42

Toro 283-71

PIN-LYNCH

$5.99

$

In Stock, Qty 7

0

45

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

46

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
