22971 (TRX-19) - Toro Trencher (SN: 290000001 - 290999999) (2009) COOLING EQUIPMENT ASSEMBLY Parts Diagram

Trencher

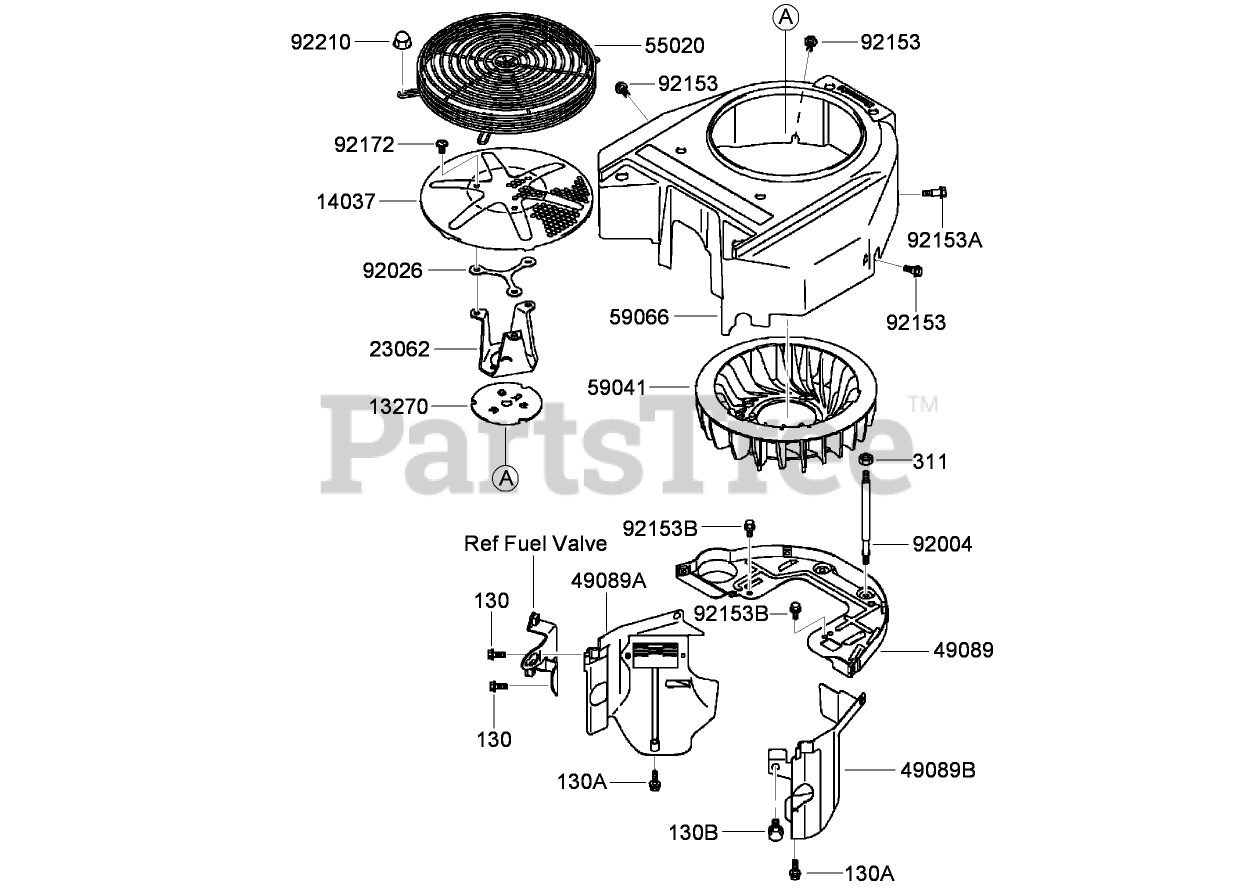

COOLING EQUIPMENT ASSEMBLY Parts Diagram

  • Title

130

Toro 95-9837

BOLT-FLANGED (6X16)

$1.49

$

Usually ships in 3-6 days

0

130A

Toro 93-8548

BOLT-FLANGED (6X25)
(Superseded to 100-2610)

$2.49

$

Usually ships in 3-6 days

0

130B

Toro 93-8679

BOLT-FLANGED

$

$

Not available

311

Toro 114-8698

NUT-HEX (6MM)

$3.49

$

Usually ships in 3-6 days

0

13270

Toro 114-8689

PLATE

$16.99

$

Usually ships in 3-6 days

0

14037

Toro 115-6568

SCREEN

$98.99

$

Usually ships in 3-6 days

0

23062

Toro 115-6569

BRACKET

$

$

Not available

49089

Toro 115-6570

SHROUD-ENGINE

$

$

Not available

49089A

Toro 115-6571

SHROUD-ENGINE

$

$

Not available

49089B

Toro 115-6572

SHROUD-ENGINE

$94.99

$

Usually ships in 3-6 days

0

55020

Toro 115-6573

GUARD

$88.99

$

Usually ships in 3-6 days

0

59041

Toro 114-8694

FAN

$55.99

$

Usually ships in 3-6 days

0

59066

Toro 115-6574

HOUSING-FAN

$

$

Not available

92004

Toro 115-6575

STUD

$21.99

$

Usually ships in 3-6 days

0

92026

Toro 115-6576

SPACER

$17.99

$

Usually ships in 3-6 days

0

92153

Toro 108-2544

BOLT

$8.49

$

Usually ships in 3-6 days

0

92153A

Toro 114-8697

BOLT

$1.99

$

Usually ships in 3-6 days

0

92153B

Toro 114-8655

BOLT (6X12)

$1.49

$

Usually ships in 3-6 days

0

92172

Toro 115-6577

SCREW-SOCKET (6X12)

$3.49

$

Usually ships in 3-6 days

0

92210

Toro 100-2603

NUT

$2.99

$

Usually ships in 3-6 days

0
