23-11BP03 (A-111) - Toro Rear-Engine Riding Mower (1984) 32 IN./81CM MOWER-SPINDLES Parts Diagram

Rear-Engine Riding Mower

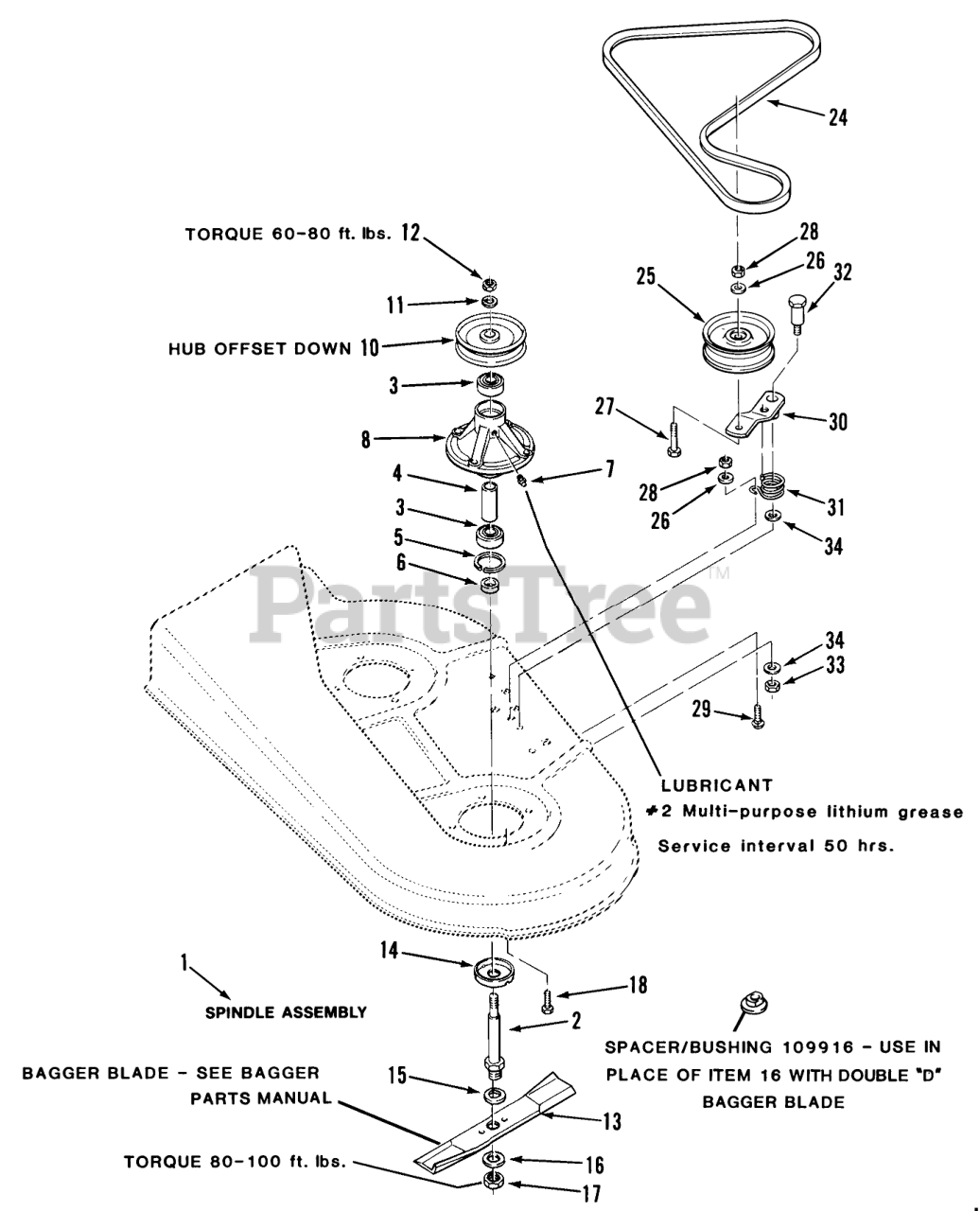

32 IN./81CM MOWER-SPINDLES Parts Diagram

  • Title

1

Toro 109911

Spindle Assembly, Metric Bearings (Includes Items 2 through 8, 14)

$

$

Not available

2

Toro 109912

SHAFT SPINDLE

$

$

Not available

3

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

4

Toro 110200

TUBE

$

$

Not available

5

Toro 936028

Ring-Snap
(Superseded to 32120-42)

$1.49

$

In Stock, Qty 20+

0

6

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 20+

0

7

Toro 3796

Fitting-Grease
(Superseded to 302-16)

$8.49

$

Usually ships in 3-6 days

0

8

Toro 109913

HOUSING SPINDLE

$

$

Not available

10

Toro 109984

PULLEY BLADE

$

$

Not available

10

Toro 109985

Pulley LH-4 3/4 O.D. (Deep Groove)

$

$

Not available

11

Toro 920087

Lockwasher
(Superseded to 3253-8)

$0.99

$

In Stock, Qty 20+

0

12

Toro 9150894

Jam Nut
(Superseded to 3220-6)

Note: "4" At end indicates free-running nut. DO NOT use Eslok or other type locking nut.

$1.49

$

In Stock, Qty 13

0

13

Toro 109078

ASSY BLADE KIT

$

$

Not available

14

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$14.99

$

In Stock, Qty 9

0

15

Toro 920257

Washer
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

16

Toro 920258

SpeciaI Washer
(Superseded to 9202584)

$6.49

$

In Stock, only 3 left!

0

17

Toro 9150904

Nut-Jam
(Superseded to 3220-7)

Note: "4" At end indicates free-running nut. DO NOT use Eslok or other type locking nut.

$4.49

$

In Stock, Qty 20+

0

18

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, Qty 19

0

24

Toro 108491

V-BELT

$

$

Not available

25

Toro 109450

PULLEY-IDLER
(Superseded to 94-4935)

$111.99

$

Usually ships in 3-6 days

0

26

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

27

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

28

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

29

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 20+

0

30

Toro 108782

Idler Arm

$

$

Not available

31

Toro 108177

SPRING-TORSION

$16.99

$

Usually ships in 3-6 days

0

32

Toro 108176

BOLT-SHOULDER

$

$

Not available

33

Toro 109996

NUT-JAM(7/16-14)

$

$

Not available

34

Toro 920010

WASHER

$0.99

$

Usually ships in 3-6 days

0
