23022 - Toro 21" Whirlwind Hevi-Duty Walk-Behind Mower (SN: 003000001 - 003999999) (1983) ENGINE BRIGGS & STRATTON MODEL 130902-1162-01 Parts Diagram

21" Whirlwind Hevi-Duty Walk-Behind Mower

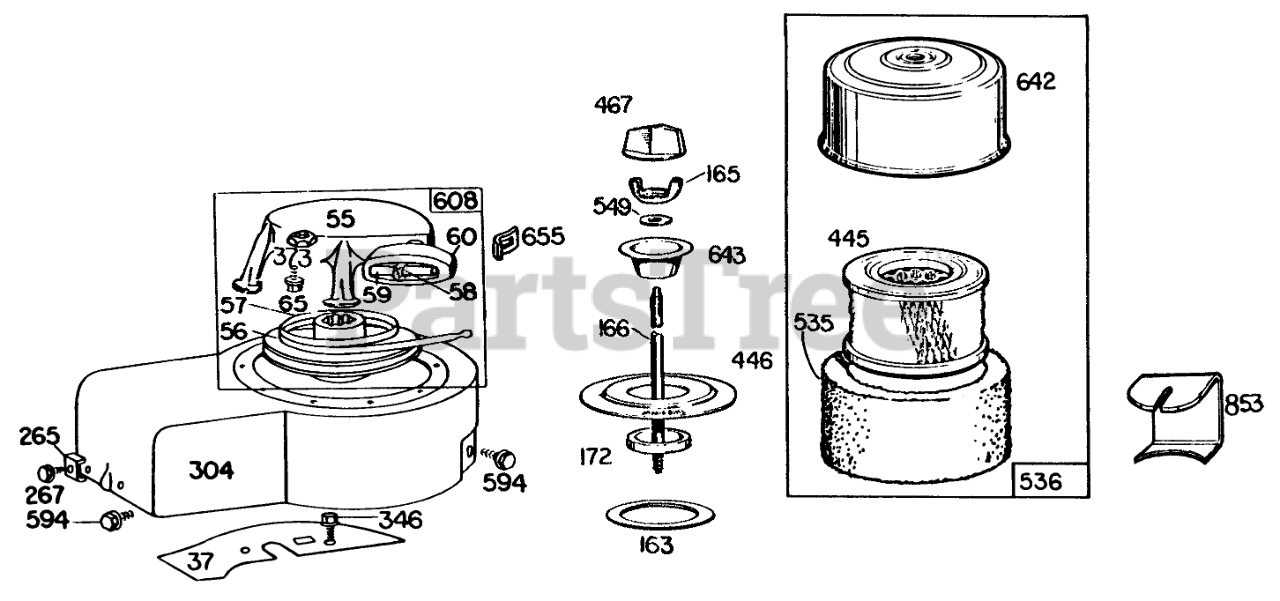

ENGINE BRIGGS & STRATTON MODEL 130902-1162-01 Parts Diagram

  • Title

37

Briggs & Stratton 222443

Guard-Flywheel
(Superseded to 691732)

$9.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 299431

Housing-Rewind Starter

$

$

Not available

56

Briggs & Stratton 295871

Pulley-Rewind

$14.99

$

In Stock, Qty 8

0

57

Briggs & Stratton 294303

Spring-Rewind
(Superseded to 490179)

$14.99

$

In Stock, Qty 19

0

58

Briggs & Stratton 66884

Rope-Rewind
(Superseded to 692188)

$8.49

$

In Stock, Qty 5

0

59

Briggs & Stratton 230228

Pin-Starter Grip
(Superseded to 230228S)

$3.99

$

In Stock, Qty 5

0

60

Briggs & Stratton 66728

Grip-Starter
(Superseded to 490652)

$5.49

$

In Stock, Qty 8

0

65

Briggs & Stratton 93067

Screw
(Superseded to 691082)

$4.99

$

In Stock, only 3 left!

0

163

Briggs & Stratton 271139

Gasket-Air Cleaner
(Superseded to 271139S)

$3.99

$

In Stock, Qty 14

0

165

Briggs & Stratton 93856

Nut-Wing

$3.99

$

Usually ships in 2-12 days

0

166

Briggs & Stratton 231175

Stud-Air Cleaner

$12.99

$

Usually ships in 2-12 days

0

172

Briggs & Stratton 271077

Gasket-Air Cleaner
(Superseded to 270055)

$3.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 22372

Clamp-Casing
(Superseded to 692179)

$4.49

$

In Stock, Qty 6

0

267

Briggs & Stratton 93469

Screw
(Superseded to 691044)

$3.99

$

In Stock, Qty 11

0

304

Briggs & Stratton 392277

Housing-Blower

$

$

Not available

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 20+

0

373

Briggs & Stratton 92987

Nut
(Superseded to 690800)

$3.99

$

In Stock, only 3 left!

0

445

Briggs & Stratton 392308

Cartridge-Air Cleaner
(Superseded to 392308S)

$16.99

$

In Stock, Qty 5

0

446

Briggs & Stratton 222844

Base-Air Cleaner
(Superseded to 691735)

$17.99

$

Usually ships in 2-12 days

0

467

Briggs & Stratton 212293

Knob-Air

$6.99

$

Usually ships in 2-12 days

0

535

Briggs & Stratton 270979

Element-Air Cleaner
(Superseded to 271466)

$4.49

$

In Stock, Qty 15

0

536

Briggs & Stratton 392368

Cleaner Assy.-Air

$50.99

$

Usually ships in 2-12 days

0

549

Briggs & Stratton 271118

Washer-Air Cleaner

$

$

Not available

594

Briggs & Stratton 93559

Screw
(Superseded to 690810)

$3.49

$

In Stock, Qty 5

0

608

Briggs & Stratton 390463

Starter-Rewind

$139.99

$

Usually ships in 2-12 days

0

642

Briggs & Stratton 222626

Cover Air Cleaner

$

$

Not available

643

Briggs & Stratton 222845

Cup-Air Cleaner

$

$

Not available

655

Briggs & Stratton 222598

Anchor Spring
(Superseded to 691734)

$4.99

$

Usually ships in 2-12 days

0

853

Briggs & Stratton 394850

Brace-Air Cleaner

$17.99

$

Usually ships in 2-12 days

0
