23163 - Toro Backhoe for Dingo Compact Utility Loader (SN: 250000001 - 250999999) (2005) HYDRAULIC CYLINDER ASSEMBLY 107-9472 Parts Diagram

Backhoe for Dingo Compact Utility Loader

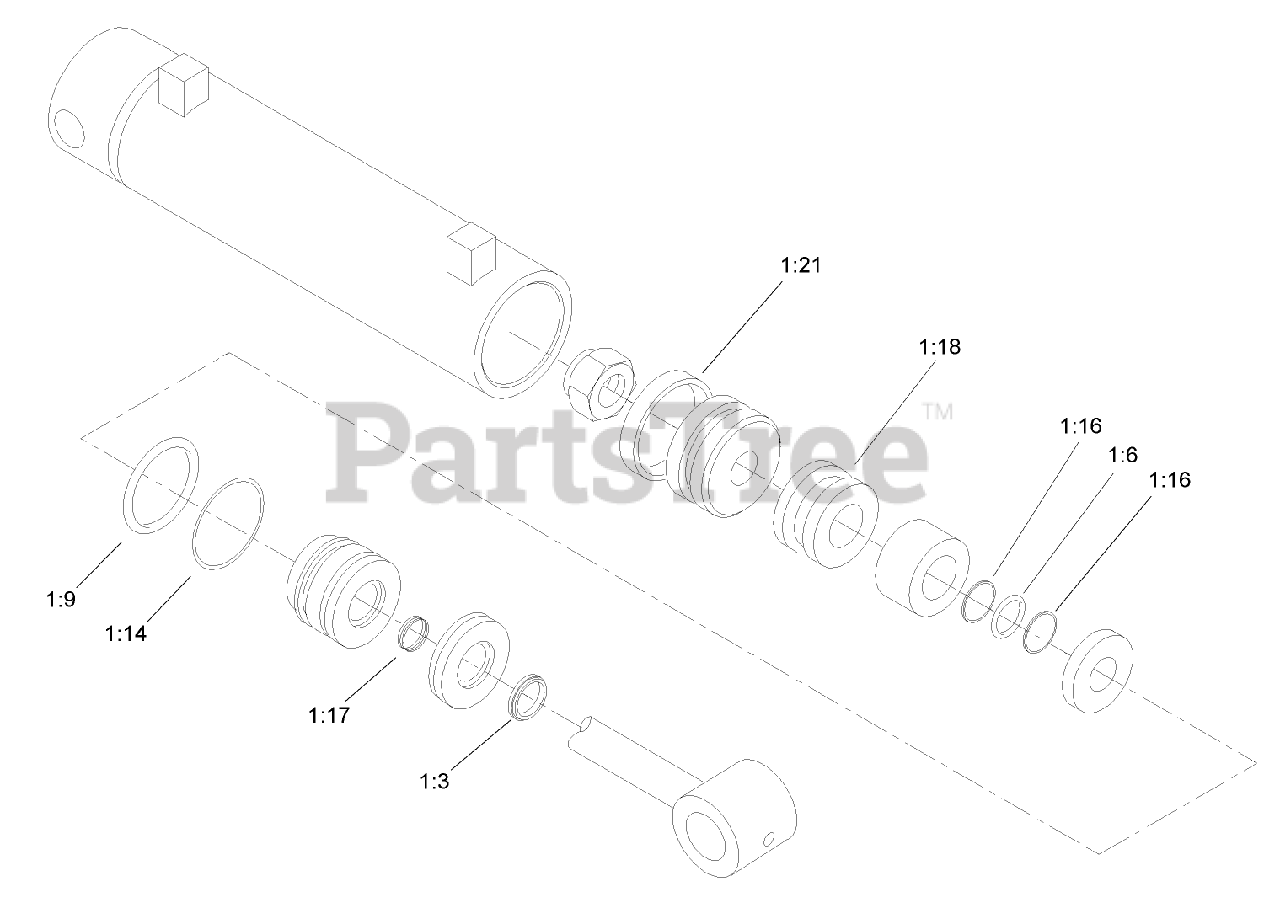

HYDRAULIC CYLINDER ASSEMBLY 107-9472 Parts Diagram

  • Title

1:3

Seal-Wiper

Note: Not serviced separately

$

$

Not available

1:6

Seal-Dust

Note: Not serviced separately

$

$

Not available

1:9

Seal-Dust

Note: Not serviced separately

$

$

Not available

1:14

RING-BACKUP

Note: Not serviced separately

$

$

Not available

1:16

RING-BACKUP

Note: Not serviced separately

$

$

Not available

1:17

PACKING ASSEMBLY

Note: Not serviced separately

$

$

Not available

1:18

PACKING ASSEMBLY

Note: Not serviced separately

$

$

Not available

1:21

RING-WEAR

Note: Not serviced separately

$

$

Not available

1

Toro 108-5689

CYLINDER SEAL KIT

$290.99

$

Usually ships in 3-6 days
