23177 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1977) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

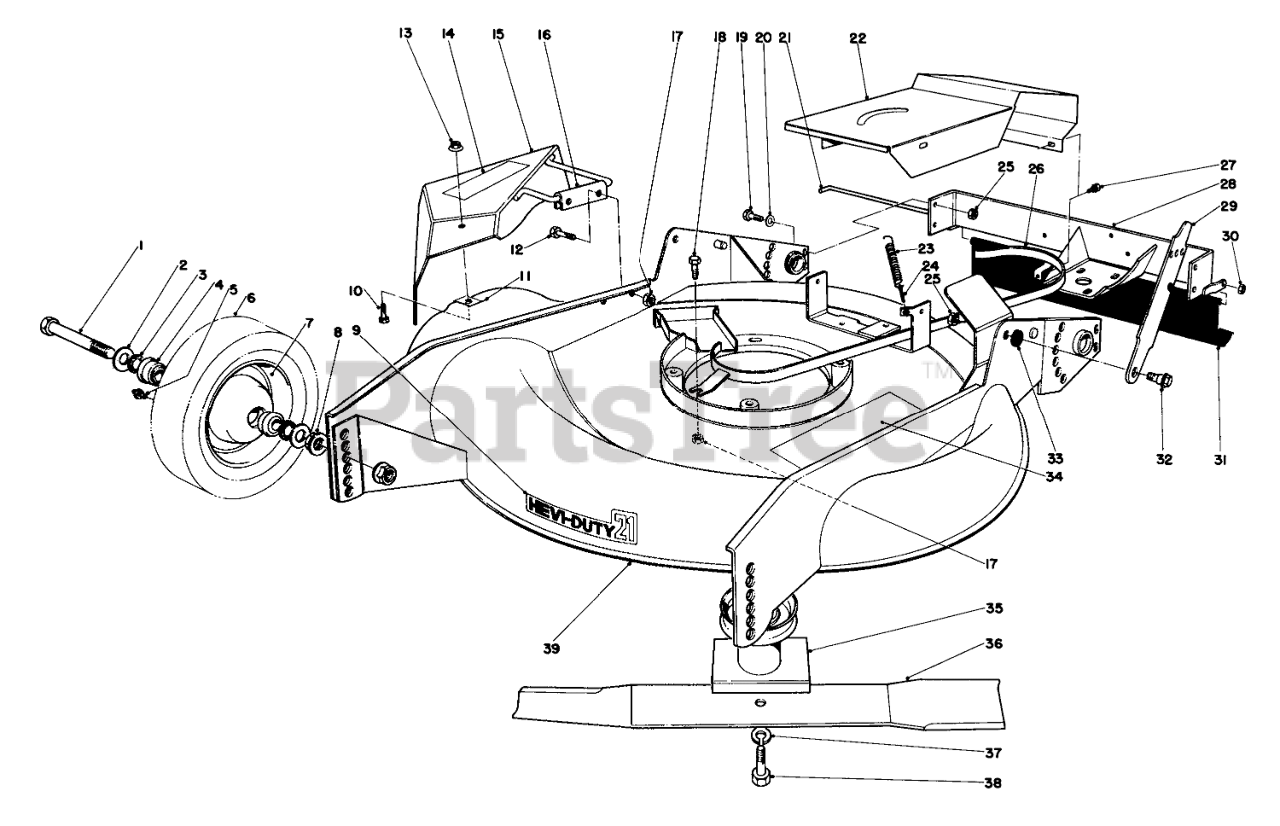

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 325-11

SCREW-HH

$2.99

$

In Stock, Qty 12

0

2

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 26-7500

FELT WASHER

$

$

Not available

4

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

5

Toro 302-26

FITTING-GREASE

$6.49

$

In Stock, only 1 left!

0

6

Toro 5-3543

TIRE

$

$

Not available

7

Toro 26-2960

Wheel & Tire Assembly (Incl. Ref. # 4-6)
(Superseded to 11-1309)

$124.99

$

Usually ships in 3-6 days

0

8

Toro 32128-23

NUT-HF

$1.99

$

In Stock, Qty 20+

0

9

Toro 26-7740

Decal Hevi-Duty 21

$

$

Currently unavailable

10

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 15

0

11

Toro 3290-199

NUT-SPEED

$5.49

$

Usually ships in 3-6 days

0

12

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

14

Toro 26-7760

Decal-Deflector
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 16

0

15

Toro 26-7750

Deflector
(Superseded to 11-2869)

$

$

Not available

16

Toro 26-9300

Hinge-U Bracket

$

$

Not available

17

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

18

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

21

Toro 22-5170

SHIELD ROD

$

$

Not available

22

Toro 3-6473

Shroud

$

$

Not available

23

Toro 3-7294

IDLER SPRING

$

$

Not available

24

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 10

0

25

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

26

Toro 3-6594

Belt Guide

$

$

Not available

27

Toro 32140-16

Screw
(Superseded to 32140-42)

$

$

Not available

28

Toro 22-5140

Support-Gear Case

$

$

Not available

29

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

30

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 22-4930

Rear Safety Shield

$

$

Not available

32

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

33

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

34

Toro 25-8410

Decal-Saftey Instruction

$

$

Not available

35

Toro 26-8740

BLADE RETAINER W A

$

$

Not available

36

Toro 26-5790

BLADE

$

$

Not available

37

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

38

Toro 26-8730

Place Bolt

$

$

Not available

39

Toro 6-6429

Housing (Incl. Ref. #9 & 34)

$

$

Currently unavailable

Toro 6-6249

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
