23212 (STX-38) - Toro Stump Grinder (SN: 313000001 - 313999999) (2013) FRAME ASSEMBLY Parts Diagram

Stump Grinder

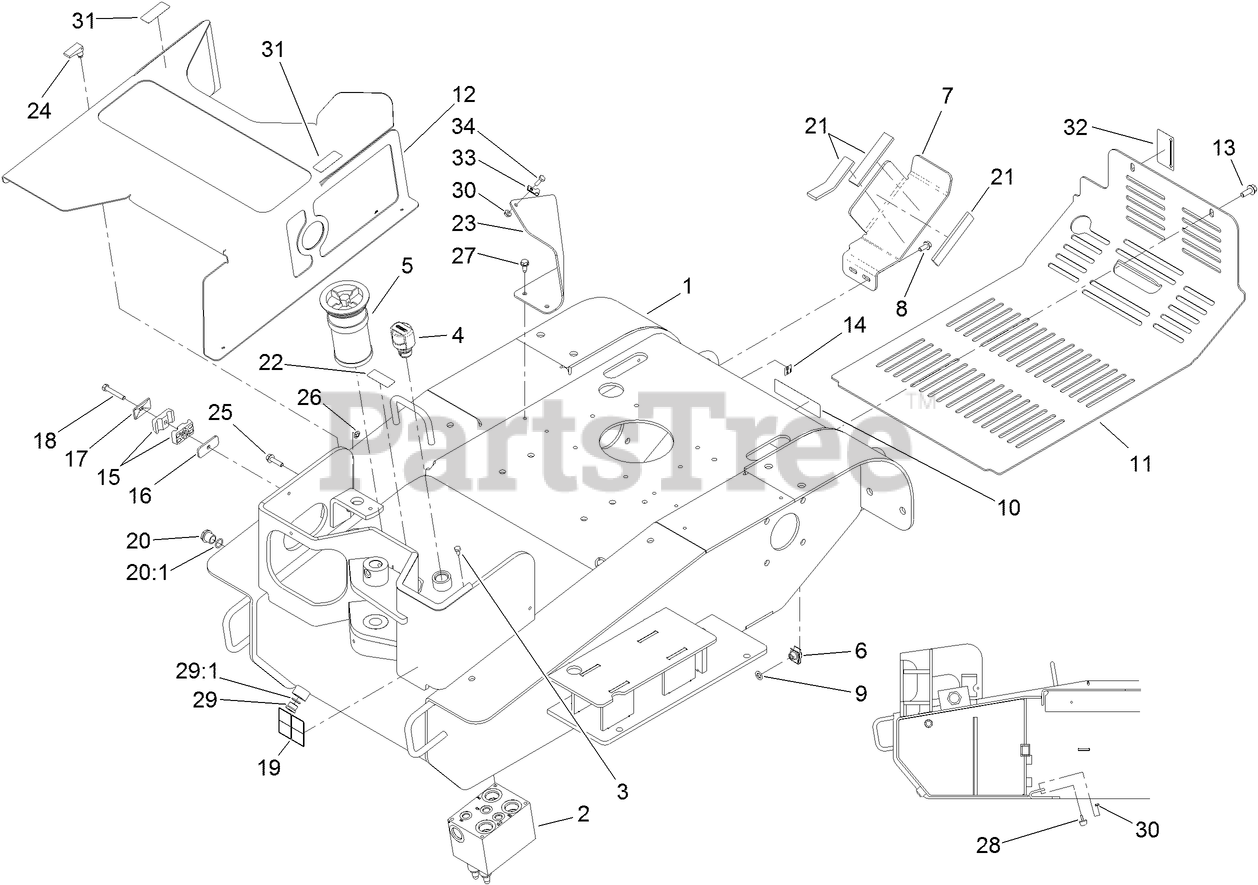

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 121-4535

FRAME-MAIN

$4732.99

$

Usually ships in 3-6 days

0

2

Toro 121-1022

VALVE-CUTTER

$1720.99

$

Usually ships in 3-6 days

0

3

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 13

0

4

Toro 115-9793

BREATHER

$73.99

$

Usually ships in 3-6 days

0

5

Toro 115-5745

CARTRIDGE-FILTER

$271.99

$

Usually ships in 3-6 days

0

6

Toro 112-4576

NUT-CLIP, U
(Superseded to 105-4886)

$2.99

$

In Stock, only 1 left!

0

7

Toro 121-1141-01

BRACKET-TANK

$64.99

$

Usually ships in 3-6 days

0

8

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 5

0

9

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 12

0

10

Toro 93-7814

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

11

Toro 121-4532

COVER-REAR

$258.99

$

Usually ships in 3-6 days

0

12

Toro 121-4531

COVER-FRONT

$457.99

$

Usually ships in 3-6 days

0

13

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 18

0

14

Toro 93-9084

DECAL-POINT, LIFT

$9.49

$

Usually ships in 3-6 days

0

15

Toro 56-7976

CLAMP-TUBE

$2.99

$

Usually ships in 3-6 days

0

16

Toro 119-4636

PLATE-CLAMP

$13.99

$

In Stock, only 1 left!

0

17

Toro 69-9760

COVERPLATE

$6.99

$

Usually ships in 3-6 days

0

18

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 10

0

19

Toro 100-4650

DECAL-WARNING

$25.99

$

Usually ships in 3-6 days

0

20

Toro 114-3075

SIGHT GLASS ASM

$28.99

$

In Stock, only 2 left!

0

20:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

21

Toro 121-0894

PAD-FOAM

$3.99

$

Usually ships in 3-6 days

0

22

Toro 93-6686

DECAL-OIL, HYD

$8.99

$

Usually ships in 3-6 days

0

23

Toro 125-0310-01

PLATE-DEFLECTOR, RH

$40.99

$

Usually ships in 3-6 days

0

24

Toro 74-5950

LATCH-SWELL

$22.99

$

In Stock, Qty 18

0

25

Toro 3234-36

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

26

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

27

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

28

Toro 1-523420

BUMPER

$14.99

$

Usually ships in 3-6 days

0

29

Toro 353-988

PLUG-HEX

$13.99

$

In Stock, only 1 left!

0

29:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

30

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

31

Toro 115-2047

DECAL-SURFACE, HOT

$17.99

$

In Stock, only 1 left!

0

32

Toro 93-9363

DECAL-BRAKE, PARKING

$19.99

$

Usually ships in 3-6 days

0

33

Toro 2412-72

CLIP-CLOSED, INSULATED

$2.49

$

In Stock, Qty 12

0

34

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
