23510 - Toro 20" Turf Seeder (SN: 314000001 - 314999999) (2014) TRANSMISSION ASSEMBLY Parts Diagram

20" Turf Seeder

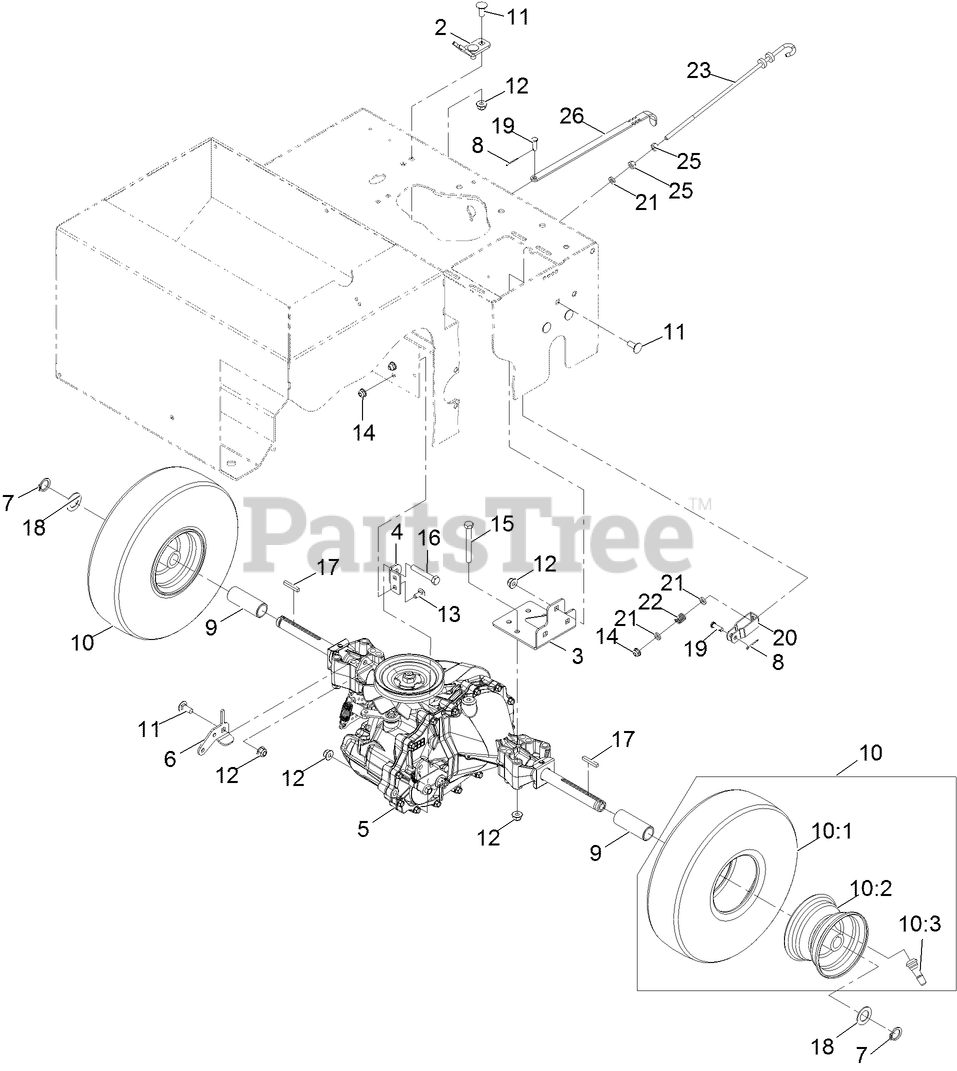

TRANSMISSION ASSEMBLY Parts Diagram

  • Title

2

Toro 121-1897

BRACKET-CABLE

$20.99

$

Usually ships in 3-6 days

0

3

Toro 121-1901-03

BRACKET-AXLE

$43.99

$

Usually ships in 3-6 days

0

4

Toro 121-1904

BRACKET-TRANSAXLE, TORQUE

$18.99

$

Usually ships in 3-6 days

0

5

Toro 121-1908

TRANSAXLE ASM

Note: Apply anti-seize compound to axle ends before installing tires.

$981.99

$

Usually ships in 3-6 days

0

6

Toro 121-1909

BRACKET-TRANSAXLE

$19.99

$

Usually ships in 3-6 days

0

7

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

8

Toro 3272-4

PIN-COTTER

$0.99

$

In Stock, Qty 6

0

9

Toro 121-1988

SPACER

$17.99

$

Usually ships in 3-6 days

0

10

Toro 120-3550

WHEEL ASM

$117.99

$

In Stock, only 1 left!

0

10:1

Toro 121-6081

TIRE

$79.99

$

Usually ships in 3-6 days

0

10:2

Toro 121-6082

WHEEL-RIM

$54.99

$

Usually ships in 3-6 days

0

10:3

Toro 5108

VALVE

$6.99

$

In Stock, Qty 13

0

11

Toro 3230-23

Bolt-Carriage 5/16-18 x 3/4 short neck

$1.49

$

In Stock, Qty 20+

0

12

Toro 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

13

Toro 3229-11

Bolt-Carriage 1/4-20 x 5/8

$1.49

$

In Stock, Qty 20+

0

14

Toro 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

15

Toro 322-13

Screw-HH 5/16-18 x 2 3/4

$3.49

$

In Stock, Qty 17

0

16

Toro 322-10

Screw-HH 5/16-18 x 2

$0.99

$

In Stock, Qty 10

0

17

Toro 92-0049

Key-Machine 3/16 x 3/16 x 1 1/4

$3.49

$

In Stock, Qty 18

0

18

Toro 67-9410

WASHER

$3.99

$

Usually ships in 3-6 days

0

19

Toro 1-808265

Pin-Clevis 1/4 x 3/4

$3.49

$

In Stock, Qty 8

0

20

Toro 39-3080

CLEVIS

$14.99

$

Usually ships in 3-6 days

0

21

Toro 55-9620

Spacer

$1.49

$

Usually ships in 3-6 days

0

22

Toro 63-4220

SPRING-COMPRESSION

$18.99

$

Usually ships in 3-6 days

0

23

Toro 121-2018

ROD-BRAKE

$28.99

$

Usually ships in 3-6 days

0

25

Toro 3217-5

Nut-Hex 1/4-20

$0.99

$

In Stock, Qty 10

0

26

Toro 121-2039

LEVER-BYPASS

$20.99

$

Usually ships in 3-6 days

0
