23513 - Toro 18" Dethatcher (SN: 312000001 - 312999999) (2012) LEVER ARM ASSEMBLY Parts Diagram

18" Dethatcher

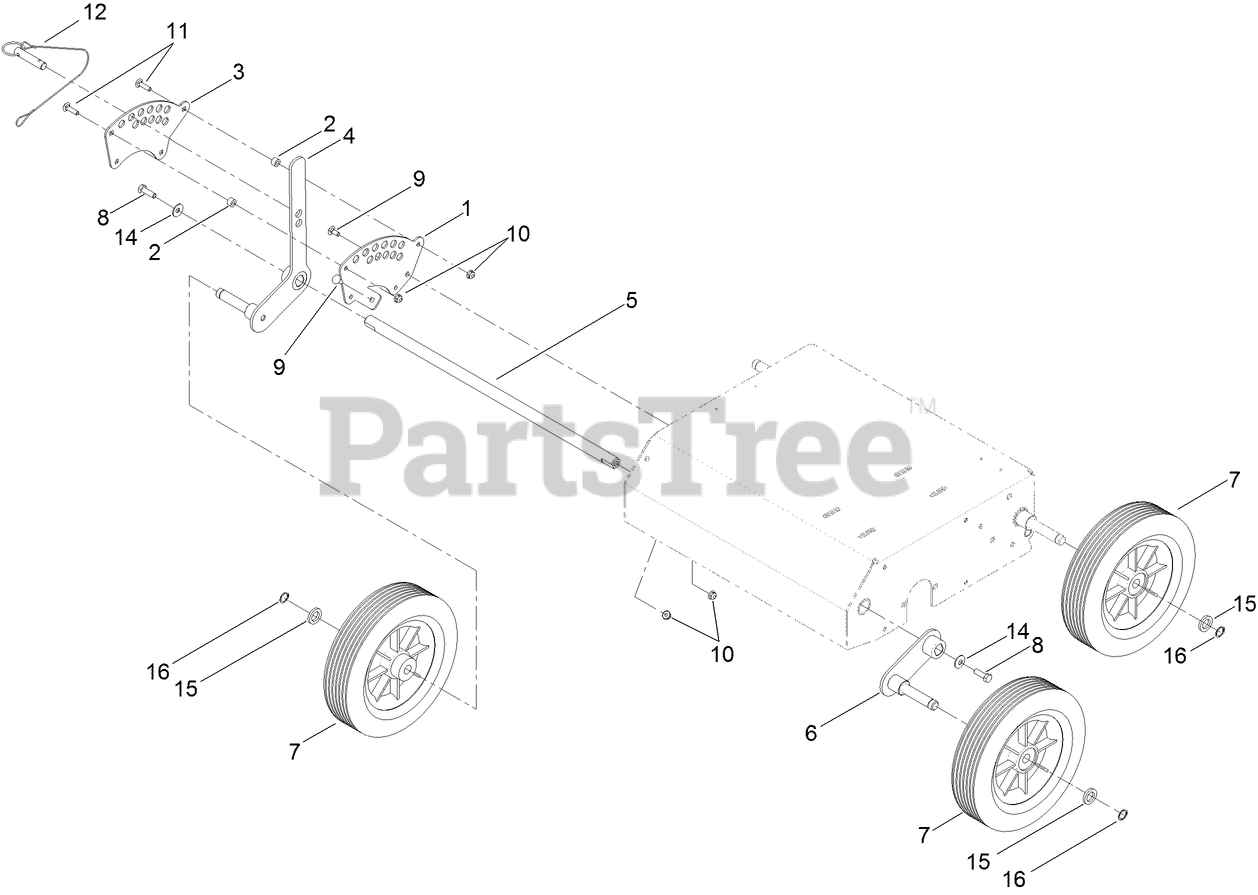

LEVER ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 121-1854

BRACKET

$46.99

$

Usually ships in 3-6 days

0

2

Toro 98-4799

SPACER

$7.49

$

In Stock, Qty 8

0

3

Toro 121-1856

PLATE

$50.99

$

Usually ships in 3-6 days

0

4

Toro 125-3805-03

LEVER-HOC

$135.99

$

Usually ships in 3-6 days

0

5

Toro 125-3806

SHAFT-PIVOT

$

$

Not available

6

Toro 125-3804-03

ARM

$122.99

$

Usually ships in 3-6 days

0

7

Toro 121-4897

WHEEL-TRANSPORT 10"

$74.99

$

Usually ships in 3-6 days

0

8

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

10

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 3229-2

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

12

Toro 104-3678

PIN-HITCH

$61.99

$

Usually ships in 3-6 days

0

14

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 10

0

15

Toro 63-9710

SPACER-BEARING

$12.99

$

In Stock, only 2 left!

0

16

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, Qty 17

0
