23515 - Toro 21" Walk-Behind Aerator (SN: 312000001 - 312999999) (2012) ENGINE AND FUEL TANK ASSEMBLY Parts Diagram

21" Walk-Behind Aerator

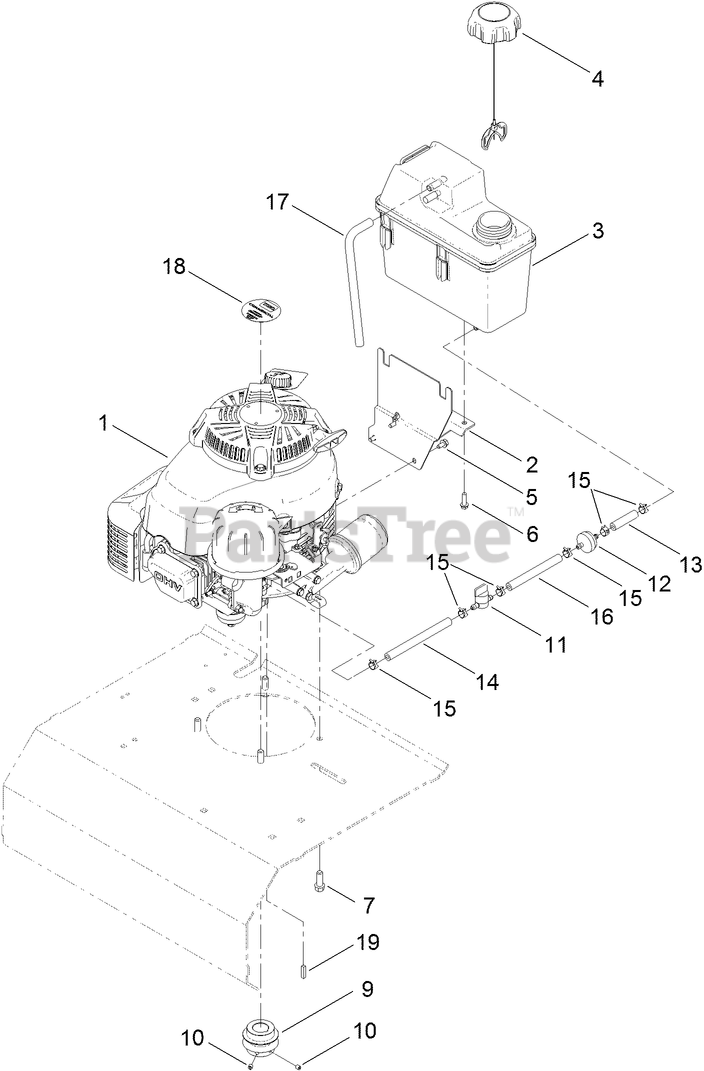

ENGINE AND FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KAWASAKI, FJ180V-BM02-M

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FJ180V-BM02-M

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

2

Toro 115-0954-03

MOUNT-TANK

$42.99

$

In Stock, only 3 left!

0

3

Toro 114-0280

TANK-FUEL

$140.99

$

In Stock, only 1 left!

0

4

Toro 109-6776

CAP-RATCHET, TETHERED
(Superseded to 137-4127)

$22.99

$

In Stock, only 1 left!

0

5

Toro 104-2628

SCREW-HWH

$1.99

$

In Stock, Qty 9

0

6

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

7

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

9

Toro 121-2038

PULLEY-DRIVER

$109.99

$

Usually ships in 3-6 days

0

10

Toro 3245-35

SCREW-SET, HSH

$0.99

$

In Stock, Qty 10

0

11

Toro 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 18

0

12

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 20+

0

13

Toro 99-9415

HOSE-FUEL

$3.49

$

In Stock, Qty 5

0

14

Toro 109-0300

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

15

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

16

Toro 109-0650

HOSE-FUEL

$7.99

$

In Stock, only 1 left!

0

17

Toro 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, only 1 left!

0

18

Toro 112-9967

DECAL
(Superseded to 110-0520)

$30.99

$

Usually ships in 3-6 days

0

19

Toro 6366

KEY

$5.49

$

Usually ships in 3-6 days

0
