23800 (2024) - Toro Directional Drill (SN: 313000001 - 313000500) (2013) ENGINE AND BATTERY ASSEMBLY Parts Diagram

Directional Drill

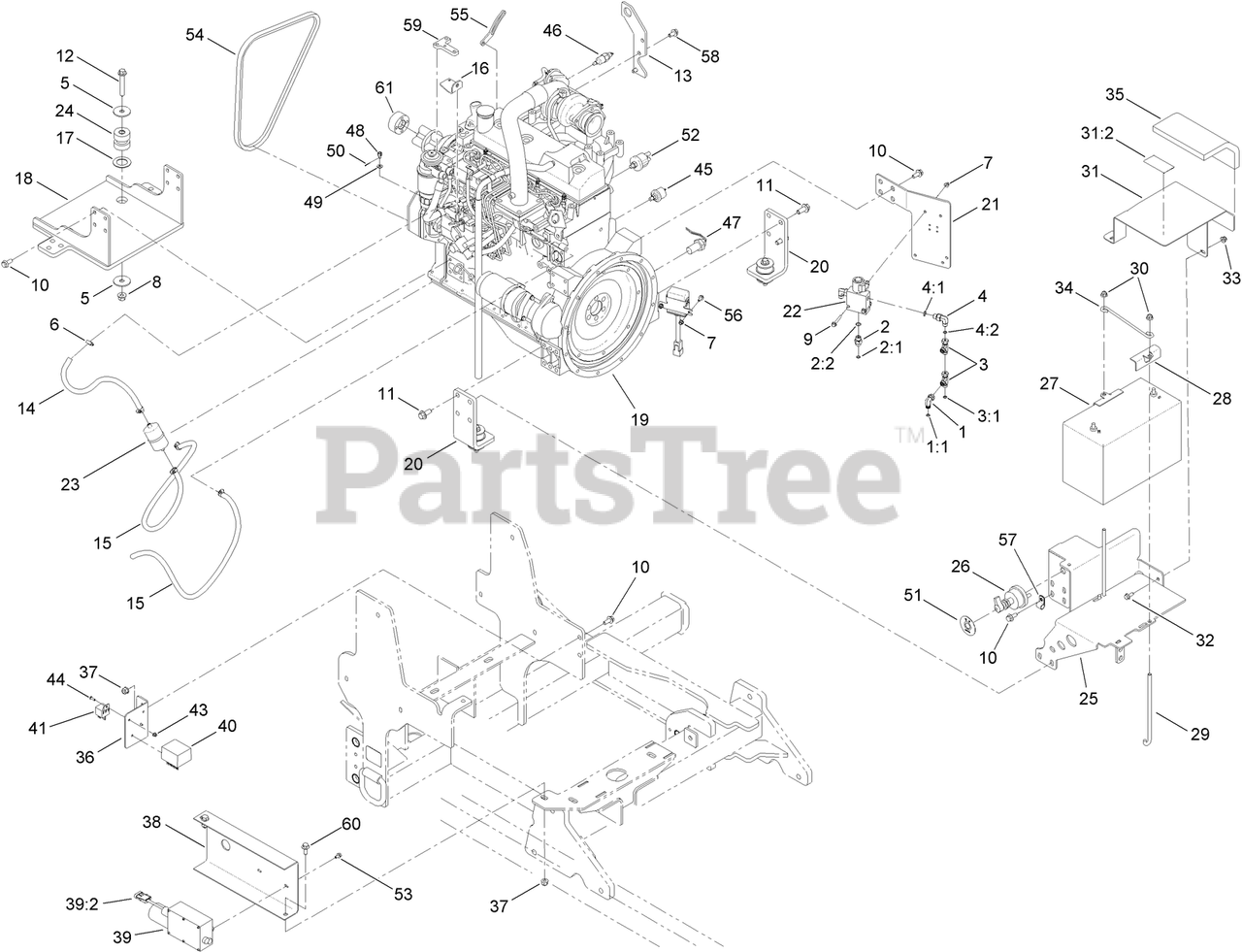

ENGINE AND BATTERY ASSEMBLY Parts Diagram

  • Title

1

Toro 92-2745

FITTING-ADAPTOR

$94.99

$

Usually ships in 3-6 days

0

1:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

2

Toro 340-1

FITTING-STRAIGHT

$11.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

2:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

3

Toro 340-151

FITTING-HYD

$100.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-75

O-Ring
(Superseded to 237-21)

$0.99

$

In Stock, Qty 10

0

4

Toro 340-82

FITTING-ELBOW 90

$23.99

$

In Stock, only 1 left!

0

4:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

4:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

5

Toro AU496-81018

WASHER-FLAT

$3.99

$

Usually ships in 3-6 days

0

6

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

7

Toro 81-0130

NUT-FLANGE, NI

$1.99

$

Usually ships in 3-6 days

0

8

Toro 115-1115

NUT-LOCK, HHF

$2.49

$

Usually ships in 3-6 days

0

9

Toro 33103-045

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

10

Toro 33105-025

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

11

Toro 33106-030

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

12

Toro 33106-080

SCREW-HHF

$4.49

$

Usually ships in 3-6 days

0

13

Toro AU110823

PLATE-HOIST POINT

$

$

Currently unavailable

14

Toro 125-4529

HOSE-FUEL

$

$

Currently unavailable

15

Toro 125-4530

HOSE-FUEL

$

$

Currently unavailable

16

Toro AU12GB3042-03

BRACKET-THROTTLE

$

$

Not available

17

Toro AU113262

SPACER-ISOLATOR

$

$

Currently unavailable

18

Toro AU114801-03

MOUNT-ENGINE AND RADIATOR

$

$

Not available

19

Engine ASM

Note: Not serviced separately

$

$

Not available

20

Toro AU12GB3114-03

BRACKET-MOUNT, ENGINE

$

$

Not available

21

Toro AU130554-03

PLATE-MOUNT

$

$

Not available

22

Toro 125-4467

VALVE-SOLENOID

$342.99

$

Usually ships in 3-6 days

0

23

Toro AU8NG10019-24

FILTER-INLINE FUEL

$

$

Currently unavailable

24

Toro AU8NG28121

ISOLATOR-MOUNTING, UNIVERSAL

$

$

Currently unavailable

25

Toro AU119455-03

BRACKET-MOUNT, BATTERY

$

$

Not available

26

Toro AU8EP02901

SWITCH-BATTERY (1000 AMP)

$

$

Currently unavailable

27

BATTERY (1000CCA)

Note: Not serviced separately

$

$

Not available

28

Toro AUD125079

ANGLE-HOLDDOWN, BATTERY

$31.99

$

Usually ships in 3-6 days

0

29

Toro AUH436311

BOLT-HOLDDOWN, BATTERY

$40.99

$

Usually ships in 3-6 days

0

30

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

31

Toro 127-0910

BATTERY SHIELD ASM

$

$

Currently unavailable

31:2

Toro 125-8473

DECAL-WARNING, BATTERY

$

$

Currently unavailable

32

Toro 33104-020

SCREW-HHF

$3.49

$

In Stock, only 4 left!

0

33

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

34

Toro AUD135073

BRACKET-HOLDDOWN, BATTERY

$58.99

$

Usually ships in 3-6 days

0

35

Toro AU122242

SHIELD-HEAT

$

$

Currently unavailable

36

Toro AU12GB3052-03

BRACKET-MOUNTING, RELAY

$

$

Not available

37

Toro 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 4 left!

0

38

Toro AU114513-03

BRACKET-THROTTLE

$

$

Not available

39

Toro AU6EE30101

ACTUATOR-THROTTLE

$

$

Currently unavailable

39:2

Toro AU6EC12114

CONNECTOR

$

$

Currently unavailable

40

Toro AU8NG10019-35

RELAY-CONTROL, ENGINE

$

$

Currently unavailable

41

Toro 99-7435

RELAY-POWER

$44.99

$

In Stock, only 2 left!

0

43

Toro 120-4580

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

44

Toro 119-7568

SCREW-HSBH

$2.49

$

Usually ships in 3-6 days

0

45

Toro AU8NG10019-28

SENSOR-PRESSURE, OIL

$

$

Currently unavailable

46

Toro AU8NG10019-29

SENSOR-COOLANT

$

$

Currently unavailable

47

Toro AU8NG10019-30

SENSOR-RPM, MAG PICKUP

$

$

Currently unavailable

48

Toro 125-4534

PIVOT-THROTTLE

$

$

Not available

49

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

50

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 10

0

51

Toro AU8EP02902

FACEPLATE-BATTERY, ON/OFF

$

$

Currently unavailable

52

Toro AU8NG10019-27

SENSOR-PRESSURE, OIL

$

$

Currently unavailable

53

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

54

Toro 127-5323

BELT-V

$

$

Currently unavailable

55

Toro 127-5324-03

BRACKET-ALTERNATOR

$

$

Currently unavailable

56

Toro 33103-016

SCREW-HHF

$5.99

$

In Stock, Qty 10

0

57

Toro 2412-138

R-CLAMP

$1.99

$

Usually ships in 3-6 days

0

58

Toro 33105-020

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

59

Toro 127-0951-03

PLATE-MOUNT, FILTER

$

$

Currently unavailable

60

Toro 33105-030

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

61

Toro 130-4471

SPACER-FAN

$

$

Currently unavailable
