23800 TE (2024) - Toro Directional Drill (SN: 313000001 - 313999999) (2013) ROTARY GEARBOX AND CARRIAGE ASSEMBLY Parts Diagram

Directional Drill

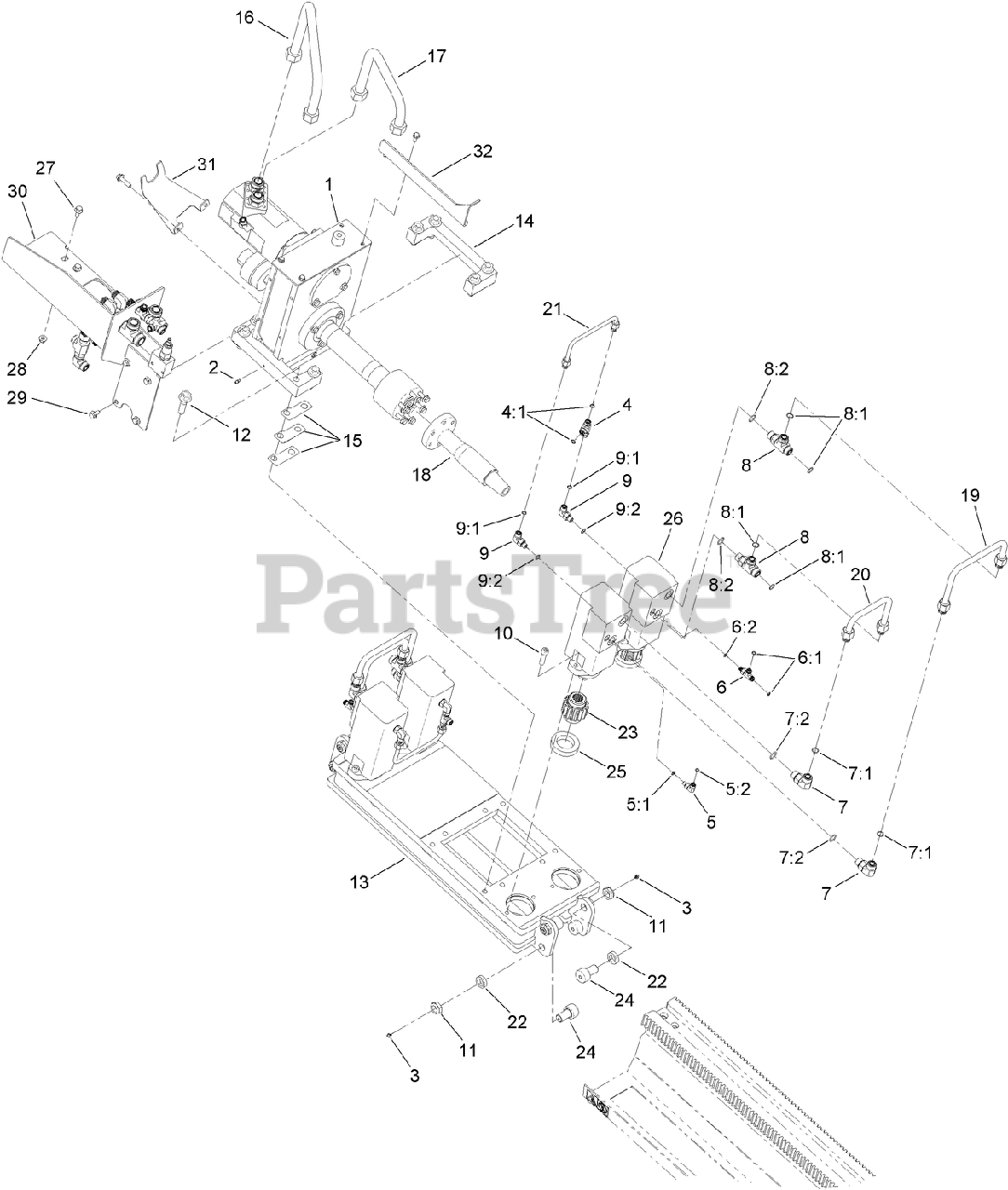

ROTARY GEARBOX AND CARRIAGE ASSEMBLY Parts Diagram

  • Title

1

Toro 125-4512

ROTARY GEARBOX ASM

$

$

Currently unavailable

2

Toro 302-57

FITTING-GREASE

$1.99

$

Usually ships in 3-6 days

0

3

Toro 302-63

FITTING-GREASE, ZERK

$2.99

$

In Stock, Qty 20+

0

4

Toro 340-115

FITTING-TEE, SWIVEL NUT

$64.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 20+

0

5

Toro 340-132

FITTING-90 DEG

$26.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-78

O-RING

$3.99

$

Usually ships in 3-6 days

0

5:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

6

Toro 340-140

FITTING-TEE

$62.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

6:2

Toro 237-78

O-RING

$3.99

$

Usually ships in 3-6 days

0

7

Toro 340-17

FITTING-ELBOW-90

$58.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 16

0

7:2

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 5

0

8

Toro 340-22

FITTING-TEE

$103.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 16

0

8:2

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 5

0

9

Toro 340-77

FITTING-ELBOW, 90 DEG

$26.99

$

In Stock, only 1 left!

0

9:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 20+

0

9:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

10

Toro AU864-12045

SCREW-HSFH

$2.49

$

Usually ships in 3-6 days

0

11

Toro 3296-60

NUT-LOCK, NI

$5.49

$

In Stock, Qty 11

0

12

Toro 33108-060

SCREW-HHF

$8.99

$

Usually ships in 3-6 days

0

13

Toro AU110514-03

CARRIAGE

$

$

Currently unavailable

14

Toro AU110676-03

BLOCK-SLIDE, ROTARY

$

$

Currently unavailable

15

Toro AU111132

SHIM-BLOCK, ROTARY SLIDE

$

$

Currently unavailable

16

Toro AU111677

TUBE-HYD, HIFLOW (ROTARY B)

$

$

Currently unavailable

17

Toro AU111678

TUBE-HYD, HIFLOW (ROTARY A)

$

$

Currently unavailable

18

Toro AU119160

ADAPTER-FLANGE

$

$

Currently unavailable

19

Toro AU12GB3220

TUBE-HYD, HIFLOW

$

$

Currently unavailable

20

Toro AU12GB3221

TUBE-HYD, HIFLOW

$

$

Currently unavailable

21

Toro AU12GB3222

TUBE-HYD, HIFLOW

$

$

Currently unavailable

22

Toro AU12GB4025

SPACER-FOLLOWER, CAM

$

$

Currently unavailable

23

Toro AU12GB4108

PINION-INPUT, 15T

$

$

Currently unavailable

24

Toro AU8CF30025

BEARING-ROLLER, CAM

$

$

Currently unavailable

25

Toro AU8CF40008

BEARING-BALL, DOUBLE SEALED

$

$

Currently unavailable

26

Toro AU8HM24035

HYD MOTOR ASM

$

$

Currently unavailable

27

Toro 33105-025

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

28

Toro 33005-00

NUT-HF

$2.49

$

In Stock, only 3 left!

0

29

Toro 33105-020

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

30

Toro AU110587-03

MOUNT-CARRIER, HOSE

$

$

Currently unavailable

31

Toro AU116975-03

BRACKET-SWIVEL, MUD

$

$

Not available

32

Toro AU124739-03

PLATE-FLAG, SENSOR

$

$

Not available
