23823 TE (4045) - Toro Directional Drill with Cab (SN: 314000501 - 314999999) (2014) 9 SECTION AND 4 SPOOL HYDRAULIC VALVE ASSEMBLY Parts Diagram

Directional Drill with Cab

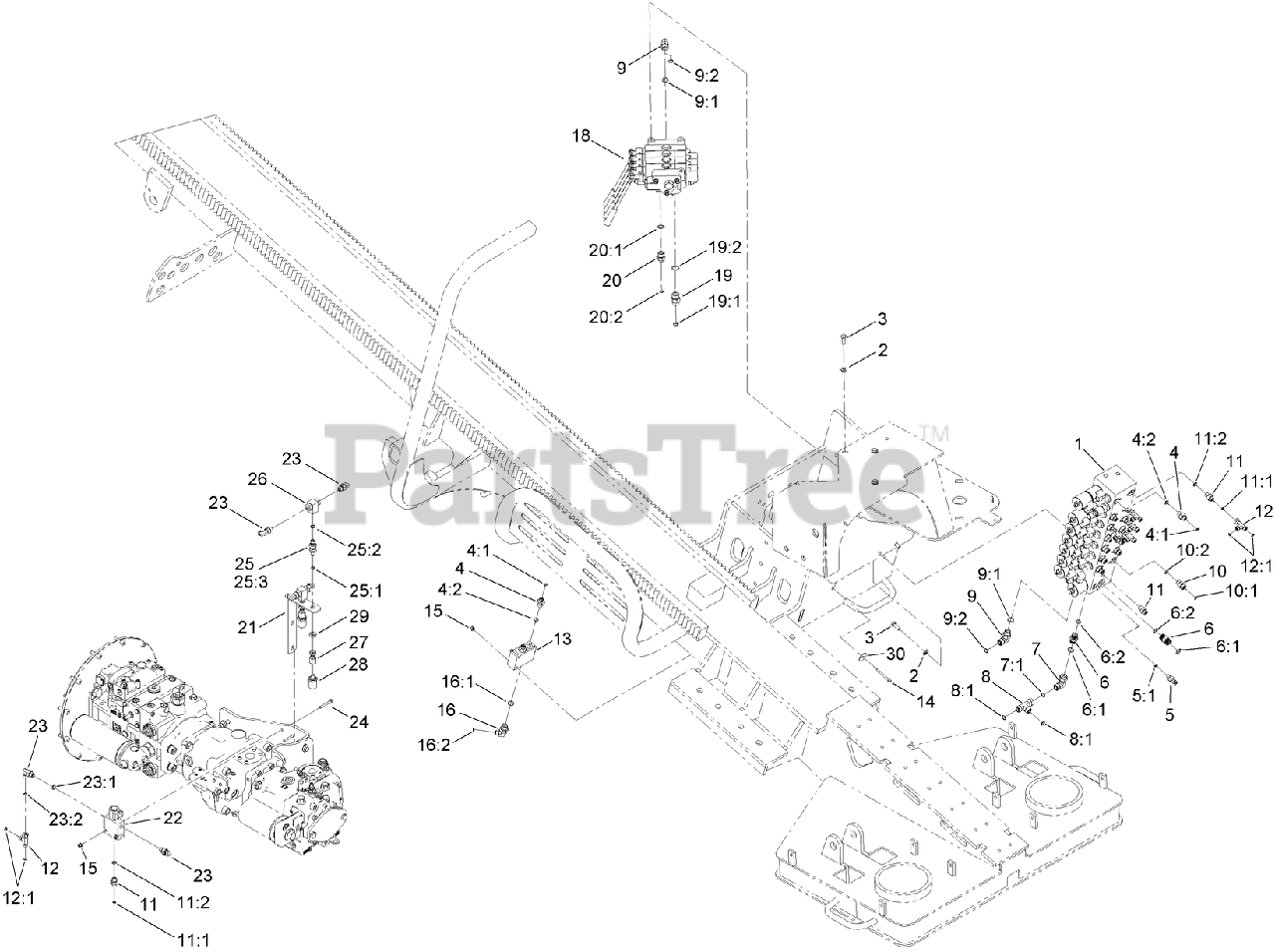

9 SECTION AND 4 SPOOL HYDRAULIC VALVE ASSEMBLY Parts Diagram

  • Title

1

Toro AU111494

9 SECTION HYD VALVE ASM

$

$

Not available

2

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

4

Toro AU112767

FITTING-STR,ORIF

$

$

Currently unavailable

4:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

4:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

5

Toro 354-77

FITTING-QUICK

$72.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-78

O-RING

$3.99

$

Usually ships in 3-6 days

0

6

Toro 340-4

FITTING-STRAIGHT

$11.99

$

In Stock, only 3 left!

0

6:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

6:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

7

Toro 94-6031

FITTING-HYD

$77.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

8

Toro 340-104

FITTING-HYD, TEE

$114.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

9

Toro 340-98

FITTING-ELBOW-90 DEG

$32.99

$

In Stock, only 1 left!

0

9:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

9:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

10

Toro 340-2

FITTING-STRAIGHT

$11.99

$

In Stock, only 2 left!

0

10:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 20+

0

10:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

11

Toro 340-1

FITTING-STRAIGHT

$11.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

11:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

12

Toro 340-151

FITTING-HYD

$100.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-75

O-Ring
(Superseded to 237-21)

$0.99

$

In Stock, Qty 10

0

13

Toro AU112323

HYD FLOW DIVIDER VALVE ASM

$

$

Currently unavailable

14

Toro AU100315

SCREW-FLANGE, METRIC

$1.99

$

Usually ships in 3-6 days

0

15

Toro 81-0130

NUT-FLANGE, NI

$1.99

$

Usually ships in 3-6 days

0

16

Toro 108-5687

FITTING-ELBOW 90

$103.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

16:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

18

Toro AU8HV80159

4 SPOOL HYD VALVE ASM

$

$

Currently unavailable

19

Toro 340-6

FITTING-STRAIGHT

$19.99

$

In Stock, only 2 left!

0

19:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

19:2

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 5

0

20

Toro 340-133

FITTING-STR

$45.99

$

Usually ships in 3-6 days

0

20:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

20:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

21

Toro AU121543-03

BRACKET-VALVE, SHUTTLE

$

$

Currently unavailable

22

Toro 125-4467

VALVE-SOLENOID

$342.99

$

Usually ships in 3-6 days

0

23

Toro 340-82

FITTING-ELBOW 90

$23.99

$

In Stock, only 1 left!

0

23:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

23:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

24

Toro 33103-050

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

25

Toro AU8OAA0406

FITTING-STRAIGHT

$

$

Currently unavailable

25:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

25:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

25:3

Toro 340-78

NUT-LOCK

$2.49

$

Usually ships in 3-6 days

0

26

Toro AU270083

VALVE-SHUTTLE, LOAD

$

$

Currently unavailable

27

Toro AU8SA60404

FITTING-STRAIGHT

$37.99

$

Usually ships in 3-6 days

0

28

Toro 125-6579

TRANSDUCER

$

$

Currently unavailable

29

Toro 340-78

NUT-LOCK

$2.49

$

Usually ships in 3-6 days

0

30

Toro 3256-55

WASHER-FLAT

$5.49

$

In Stock, only 2 left!

0
