23890 (FM 330) - Toro Gas-Powered Fluid Mixer (SN: 315000001 - 315999999) (2015) FRAME, ENGINE AND HOPPER ASSEMBLY Parts Diagram

Gas-Powered Fluid Mixer

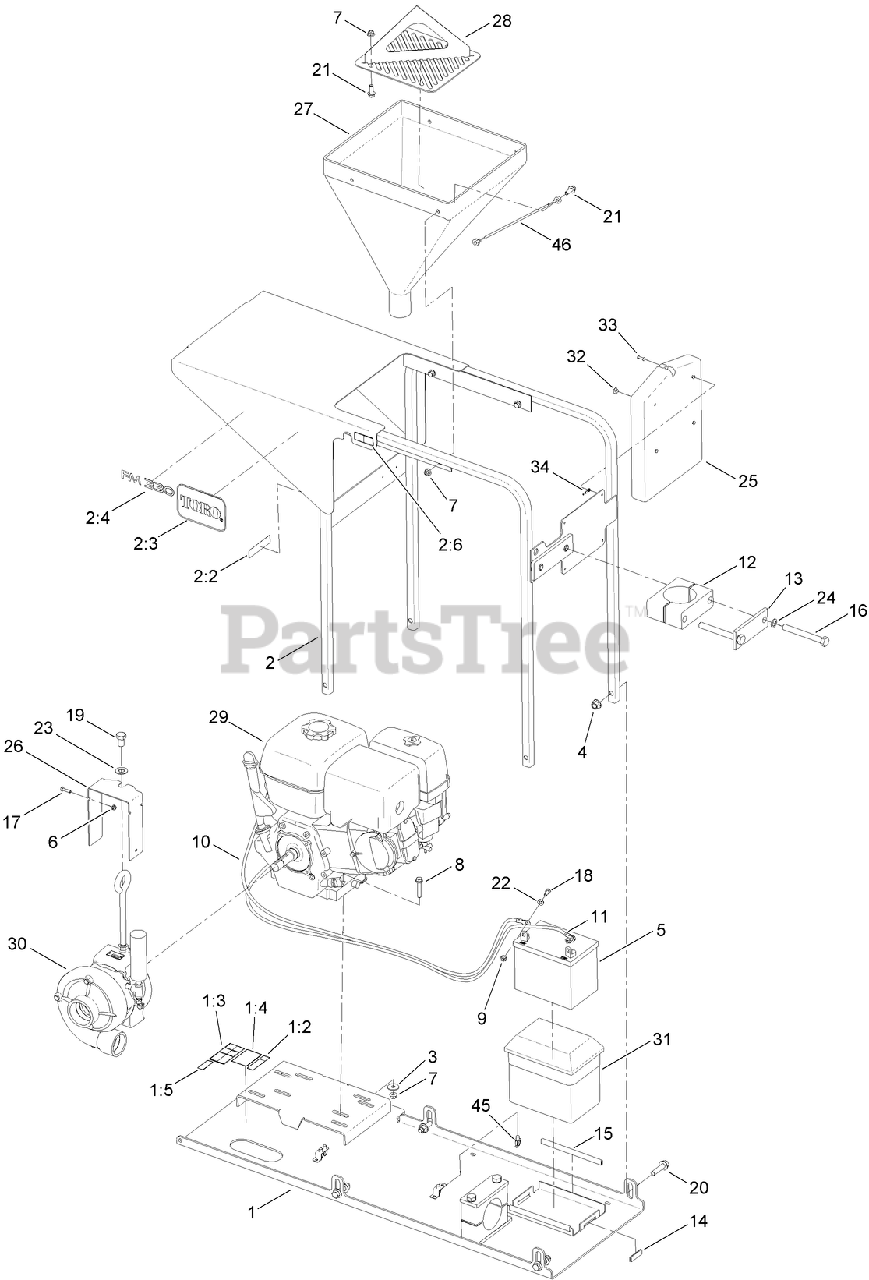

FRAME, ENGINE AND HOPPER ASSEMBLY Parts Diagram

  • Title

1

Toro 127-5341

BASE FRAME ASM

$

$

Currently unavailable

1:2

Toro 119-0217

DECAL-DANGER

$5.49

$

Usually ships in 3-6 days

0

1:3

Toro 125-6155

DECAL-WARNING, MIXER

$

$

Currently unavailable

1:4

Toro 125-6156

DECAL-DRAIN

$

$

Currently unavailable

1:5

Toro 125-6161

DECAL-FUEL, E10

$

$

Currently unavailable

2

Toro 127-5340

HOPPER SUPPORT ASM

$

$

Not available

2:2

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

2:3

Toro 62-5550

DECAL

$10.99

$

In Stock, only 1 left!

0

2:4

Toro 125-6170

DECAL

$

$

Currently unavailable

2:6

Toro 125-6171

Decal-Warning, Puncture

$

$

Currently unavailable

3

Toro 93-8806

WASHER-HARDENED

$1.99

$

Usually ships in 3-6 days

0

4

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

5

BATTERY (300 CCA, WET)

Note: Not serviced separately

$

$

Not available

6

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 108-3742

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

9

Toro 109-5715

NUT-HHF, SMOOTH

$1.49

$

In Stock, only 3 left!

0

10

Toro 122-0214

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

11

Toro 122-0215

CABLE-BATTERY, NEGATIVE

$

$

Currently unavailable

12

Toro 125-4502

CLAMP-PIPE

$

$

Currently unavailable

13

Toro 125-4503-03

PLATE-CLAMP

$

$

Currently unavailable

14

Toro 127-0997

TRIM-STRAP, BATTERY

$

$

Currently unavailable

15

Toro 127-5315

TRIM-TANK

$

$

Currently unavailable

16

Toro 127-5336

SCREW-HH

$

$

Currently unavailable

17

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 327-2

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

20

Toro 3234-27

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

21

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 8

0

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

24

Toro 3256-69

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

25

Toro AU103216

HOLDER-MANUAL, OPERATOR

$68.99

$

Usually ships in 3-6 days

0

26

Toro AU10MM3204-01

GUARD-COUPLER, ROTATING

$

$

Currently unavailable

27

Toro AU10MM3230

HOPPER-MIX

$

$

Currently unavailable

28

Toro AU10MM3235-01

CUTTER-BAG

$

$

Currently unavailable

29

Toro AU10MM3302

ENGINE-HONDA

$

$

Currently unavailable

30

Toro AU10MM3304

PUMP ASM

$

$

Currently unavailable

31

Toro AU10MM3305

BOX-BATTERY
(Superseded to 116-6673)

$42.99

$

Usually ships in 3-6 days

0

32

Toro AU151-522

RIVET

$0.99

$

Usually ships in 3-6 days

0

33

Toro AUR46463

POST-MANUAL

$1.99

$

Usually ships in 3-6 days

0

34

Toro AUR46465

LANYARD

$22.99

$

Usually ships in 3-6 days

0

45

Toro 32180-030

CLIP-TIE

$4.99

$

In Stock, Qty 7

0

46

Toro 92-5971

LANYARD-GATE

$25.99

$

Usually ships in 3-6 days

0
